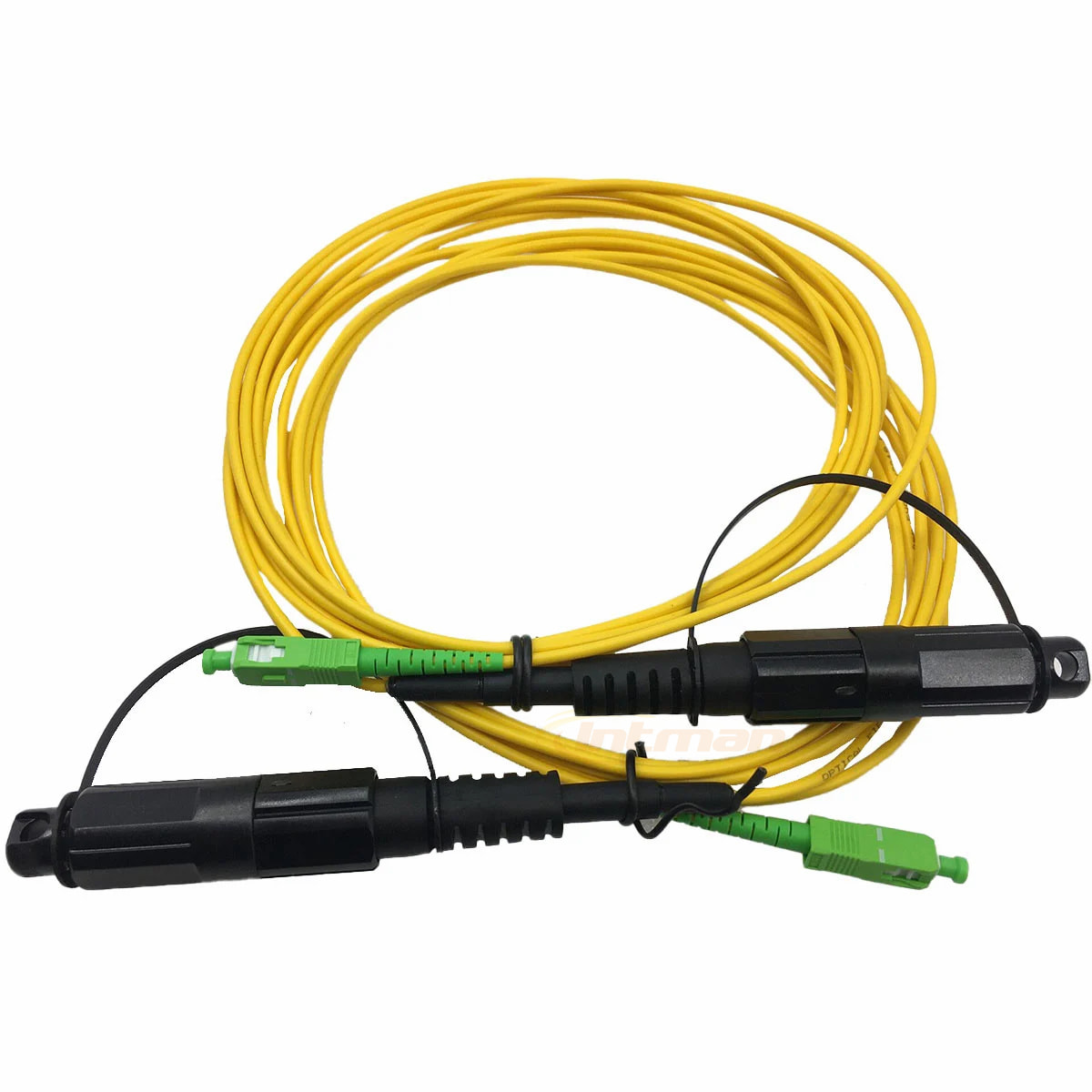

OptiTap to SC/APC Singlemode Fiber Patch Cable

SCAPC Optitap Fiber Patch cord

OptiTap to SC/APC Singlemode Fiber Patch Cable

  • Name: OptiTAP Patch cable
  • Connector: OptiTAP
  • Connector type: SC
  • Cable Diameter: 5.0/2.0mm
  • Fiber Type: G652D ,G657A1,G657A2
  • Fiber Count: 1Core
  • Cable Jacket: LSZH, PVC
  • Good Supply Capacity
  • Fast Delivery Time
  • 100% Testing Before Shipment



Category: Tag:

Description

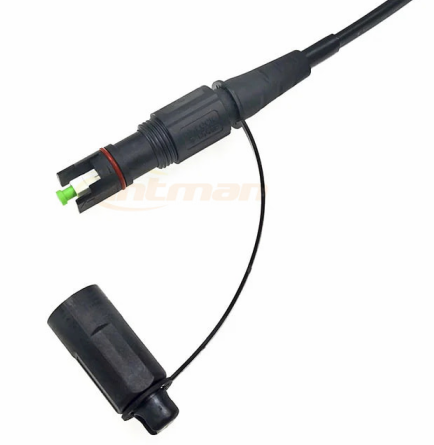

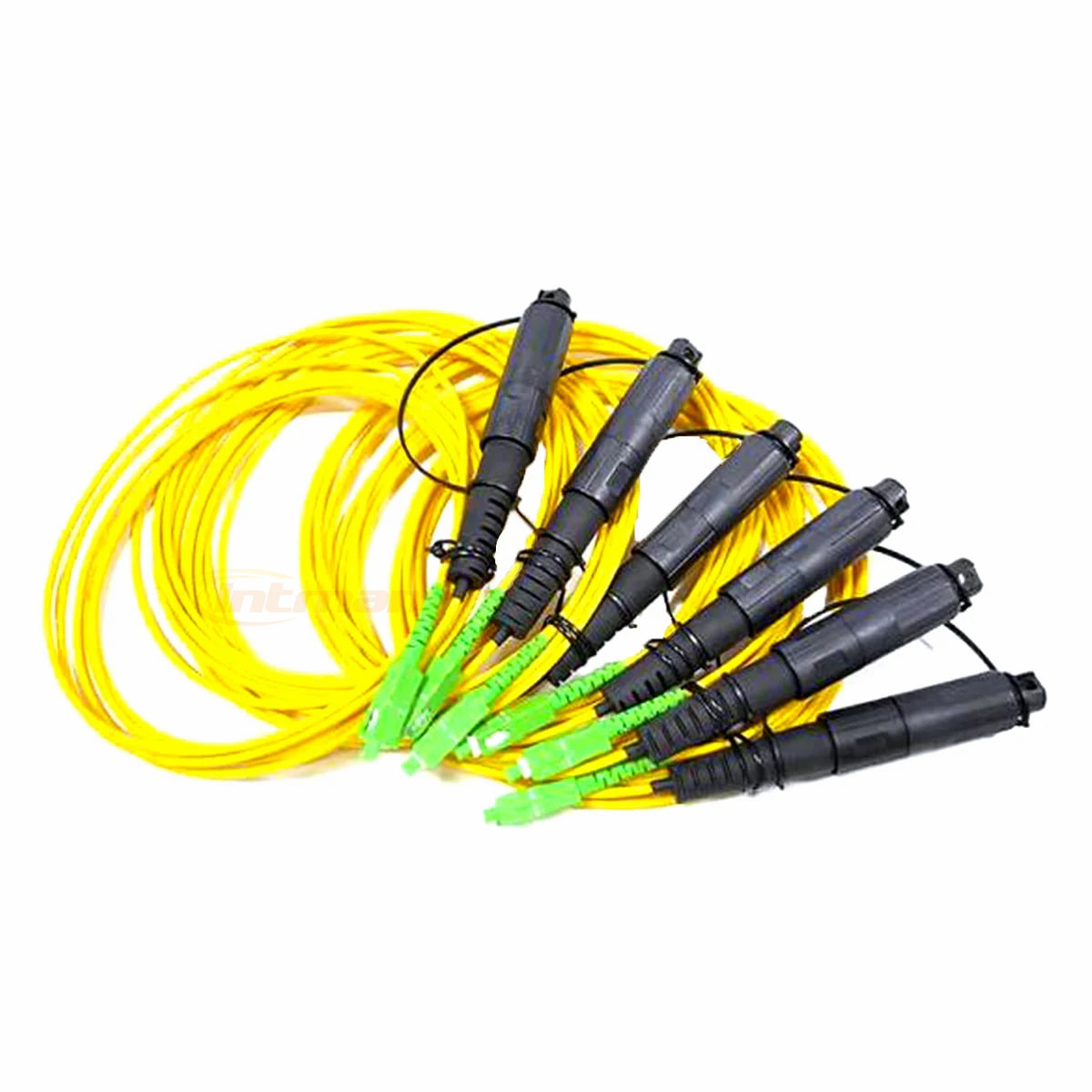

Corning OptiTap SC waterproof connector has SC houseless core, thread connection, and multilayer rubber cushions. It is suitable for 3.0-5.0mm round cables and FTTH drop cables. Compare with the Huawei Mini SC connector, corning’s biggest difference is the way of connection, one is a spiral bayonet connection, and the other is a thread connection.

Specification Table

Connector OptiTap SC Cable Diameter 2.0mm/3.0mm
Fiber Mode OS2 9/125um Wavelength 1310/1550nm
Jacket Color Yellow Jacket Material LSZH
Fiber Count 1Core Protection Class/Rating IP67
Insertion Loss ≤0.3dB Fiber Grade G657A1
Compatible Corning Cable Type 2.0/3.0mm indoor cable
Operating Temperature -20~70℃ Storage Temperature -20~70℃



OptiTAP Cable Parameters and Cable Structure

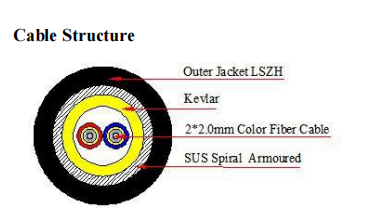

7.0mm Spiral Armoured cable structure







SCAPC Optitap

Cable Count Out Sheath Diameter (MM) Weight(kg) Minimum allowable Tensile Strength (N) Minimum allowable Crush Load (N/100mm) Minimum Bending Radius (MM) Storage Temperature(℃）
Short Term Long Term Short Term Long Term Short Term Long Term
2 5.0±0.2 30 800 400 2000 1000 20D 10D -20~+70
2 5.0±0.2 45 400 800 2000 3000 20D 10D -20~+70
2 2.0±0.2 16 600 1000 2000 3000 20D 10D -20~+70
2 3.0±0.2 18 600 1000 1000 2000 20D 10D -20~+70

Features

1. Cost-effective solution for in-house termination.
2. Low insertion loss and added loss.
3. Height of attenuation.
4.IP67 water, dustproof, and corrosion resistant
5. The material in the jumper cable is all-weather and UV-resistant.
6. Mechanical performance: IEC 61754-20
7.RoHS and REACH materials compliant.

 Applications

  • Multi-purpose outdoor
  • For connection between the distribution box and RRH
  • Deployment in Remote Radio Head cell tower applications
  • Remote interface applications such as FTTX or Towers
  • Mobile routers and internet hardware
  • Harsh environments where chemical, corrosive gases and liquids are common
  • Used for the based station, RRU, RRH, LTE, BBU

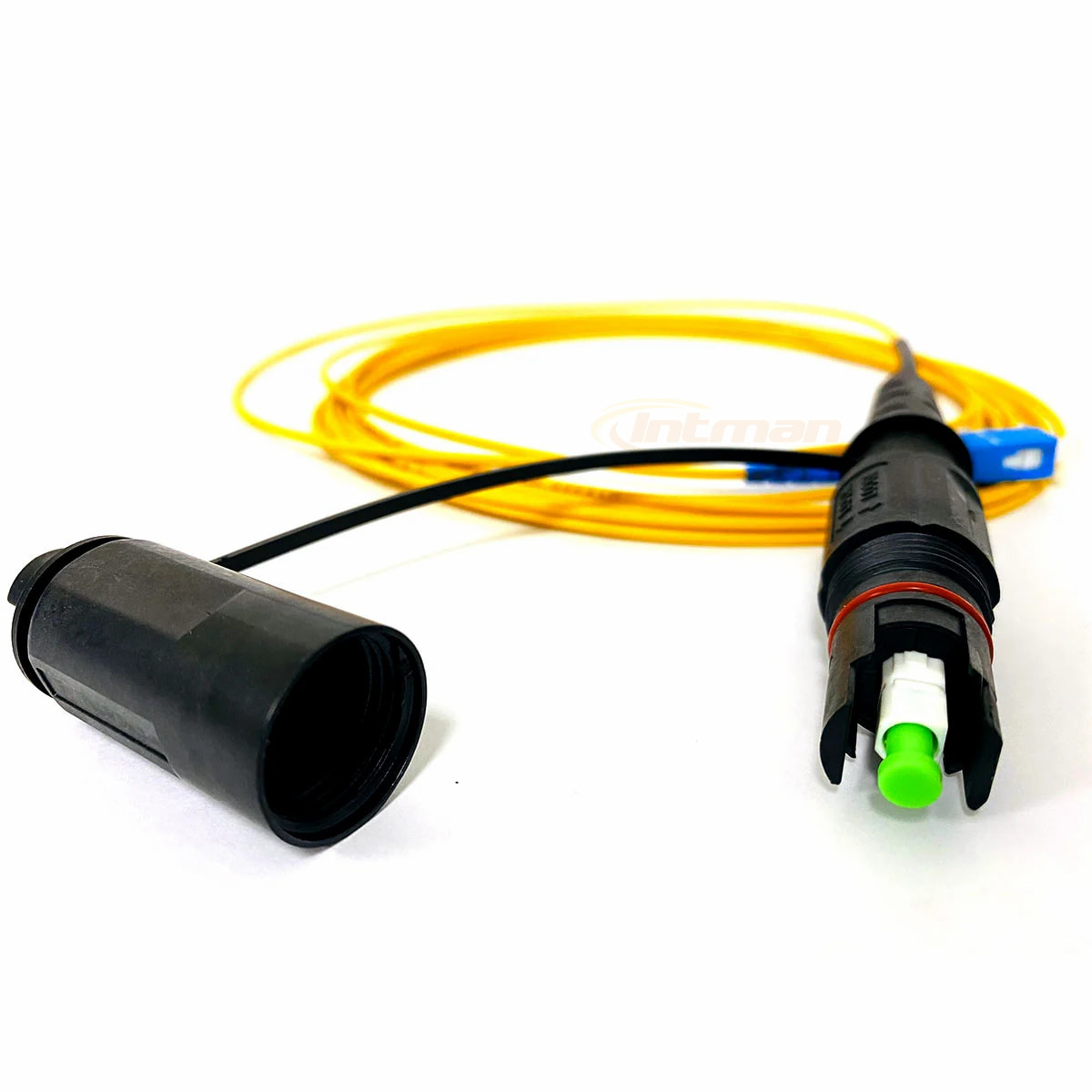

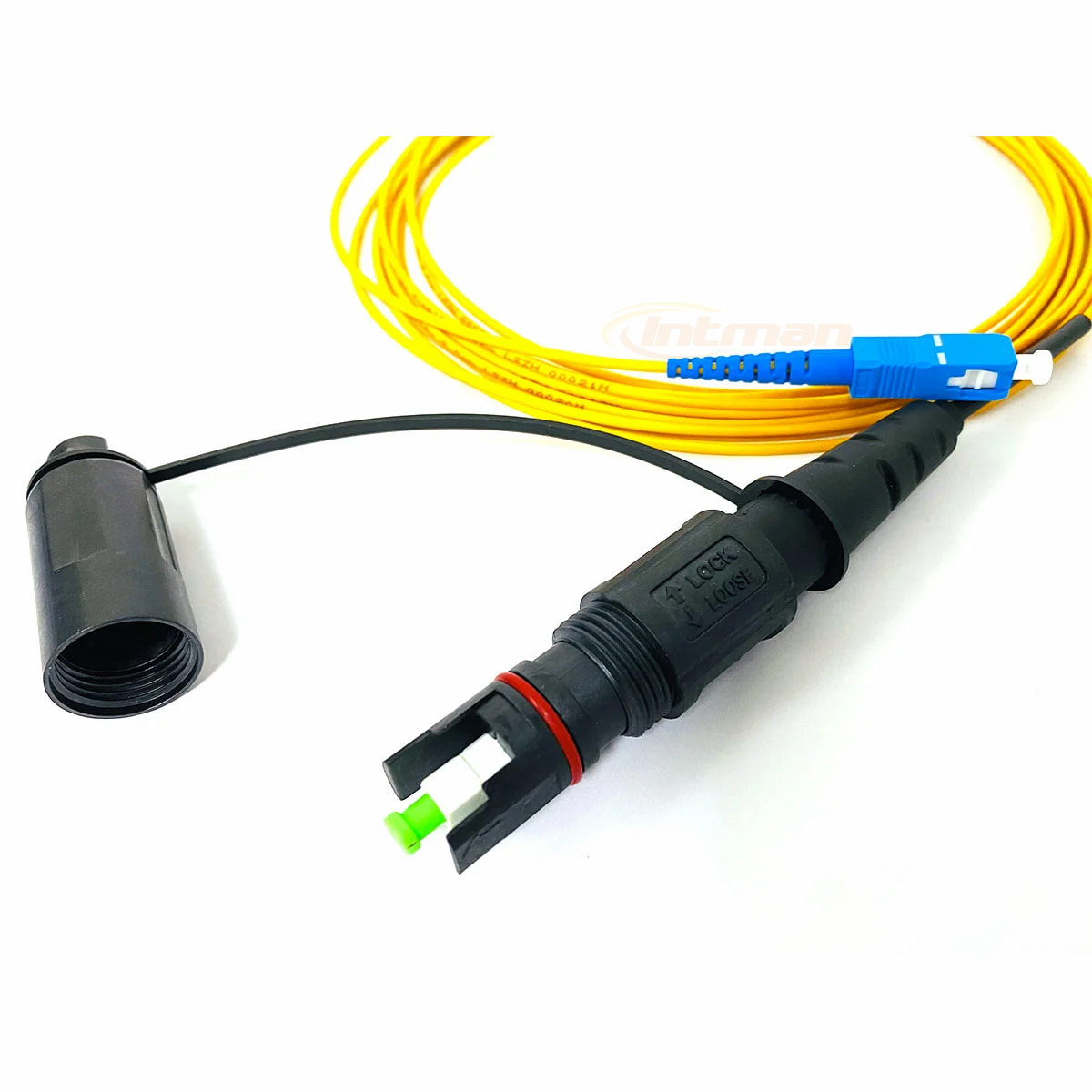

SCAPC OptiTap patch cord Availability

  • Far transmission communication&FTTA
  • Intelligent substation
  • Tunnel Video Surveillance system

Specification

ITEM PARAMETER
Connector Type SCAPC OptiTap
Insertion Loss ≤0.3dB
Return Loss ≥60dB
IP Level IP67
Operating wavelength 1310nm,1550nm
Test wavelength 1310nm,1550nm
Repeatability ≤0.1
Interchangeability ≤0.2dB
Fiber Length 1m,2m…..any length optional
