650nm Pen-type Visual Fault Locator (VFL) 1.25mm & 2.5mm adaptor 20mw

Description

1. Pen type Visual Fault Locator VFL Description

VFL (Visual Fault Locator) is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing, and continuity checking in optical networks.



Main Features:

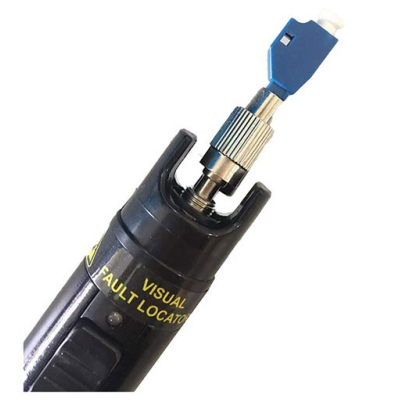

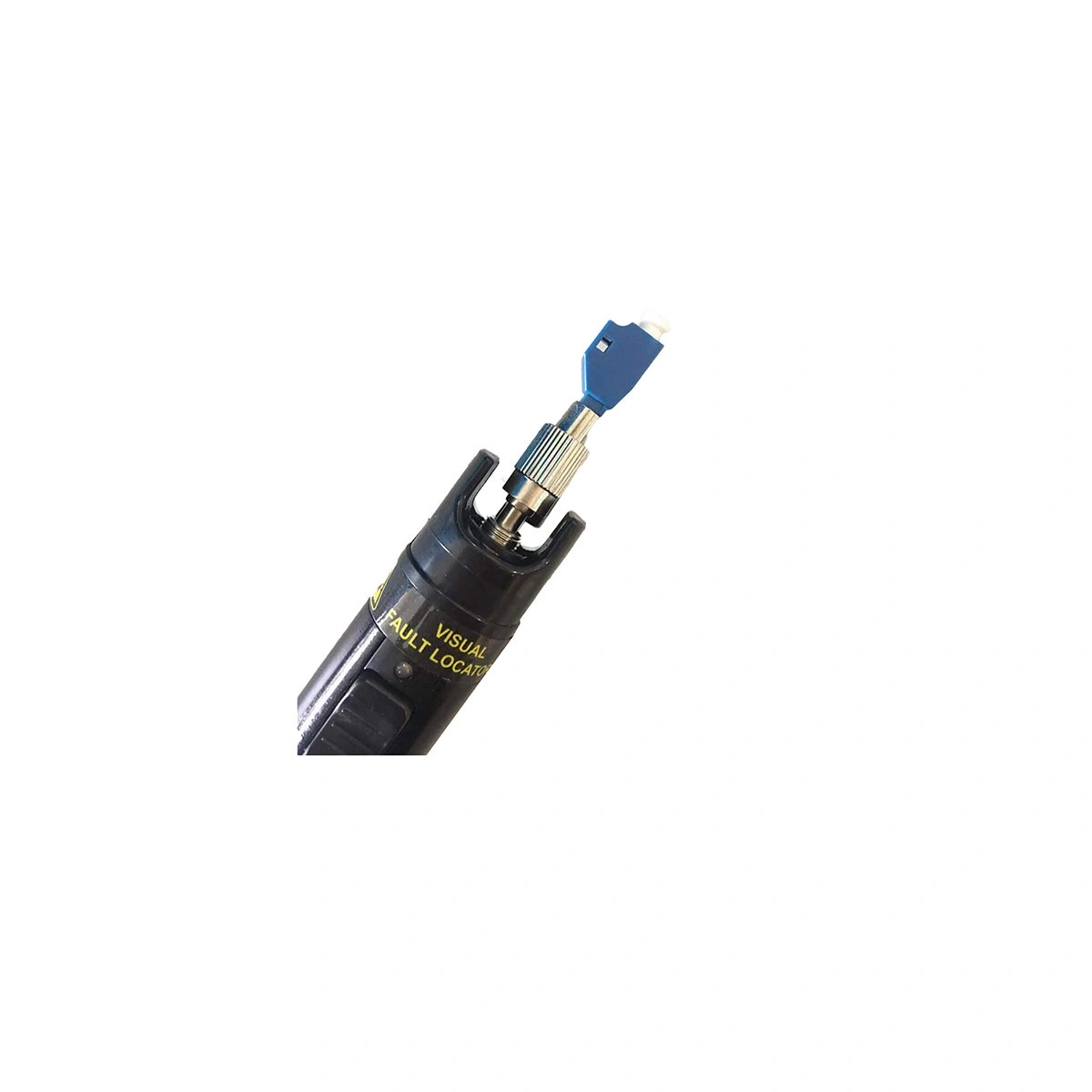

• 2.5mm universal connector,for 1.25mm connectors,FC(Male)-LC(Female) converter can be provided on request.
• Operates either in CW or Pulsed
• Constant output power
• Lower Battery warning
• Long Battery life (up to 60 hours)
• Crash-proof and dust-proof design for laser head
• Laser case ground design prevents ESD damage
• Burning testing to ensure the reliability
• Portable and rugged, easy to use



Applications :

• Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.
• Finding the faults of OTDR dead zone
• End-to-end visual fiber identification

2. Visual Fault Locator 650nm Specification Table

Name	Pen-type Visual Fault Locator	Central Wavelength	650nm±10nm
Emitter Type	FP-LD	Output Power	1mw,5mw,10mw ,max can do 50mw
Operating Model	Both CW and Pulse are available	Pulse Frequency	2~3 Hz
Power Supply	2 AA alkaline batteries	Dimension (mm)	15×180mm
Optical Connector : 2.5mm universal connector; For 1.25mm connectors, FC(Male)-LC(Female) convertor;Can be optional on customer requests
Operating	-10~+45 (℃）
Storage Temperature	-40~+70 (℃）
Battery Operating Time : 650nm@1mw ≥65hour;650nm@10mw ≥15hour; Test with Panasonic LR6 AA ALKALINE battery

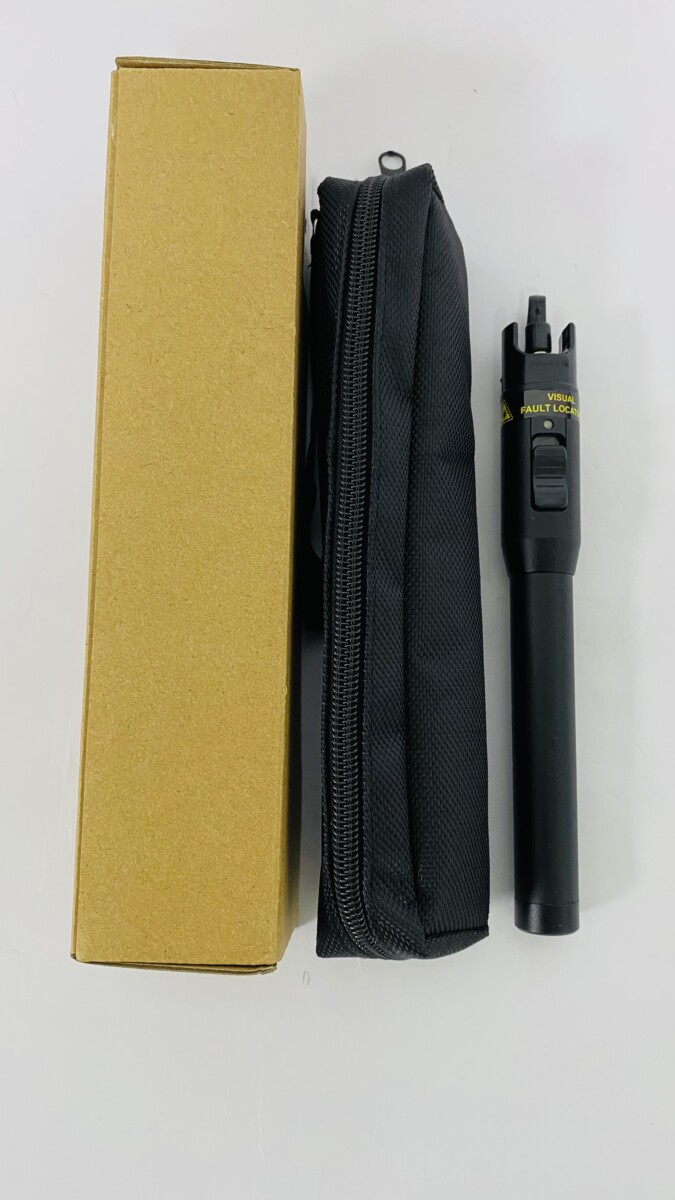

3. Package Detail

Model	Includes
INT3105A	Main Unit,2pcs Alkaline battery,User Manual, and Soft Carrying case
