- Name: Power Meter
- Model : JW3330
- Measurement Range:+10~-70dBm/+26~-50dBm
- Insertion Loss :≤1.5dB
- Wavelength Test : 1310up /1490 down/1550up
- Interface:(FC/SC)/PC (optional)
- Display Size: 3.5 inch TFT color screen
- VFL: 650nm 10mW
- Dimension: 188×88×44mm
- Display Resolution: 0.01dB
- Weigth : 400g
1310NM 1490NM 1550NM 1625NM PON Fiber Optic Power Meter (with SC/UPC Adapter) for FTTx Projects
Description
1. PON Power Meter JW3330
The PON Power Meter series is a 3.5-inch TFT color screen type light meter developed by
Our company according to the customer’s requirement and the characteristics of domestic and foreign power meters. Using brand new encapsulation shell design, shockproof and fall-proof, feel in line with ergonomics. The instrument is highly integrated with a PON power meter,wide-range optical power meter, VFL, line sequence calibration, and other functions, and can record and upload the instrument test data, it is widely used in the construction, inspection and maintenance of CATV and other optical line projects.

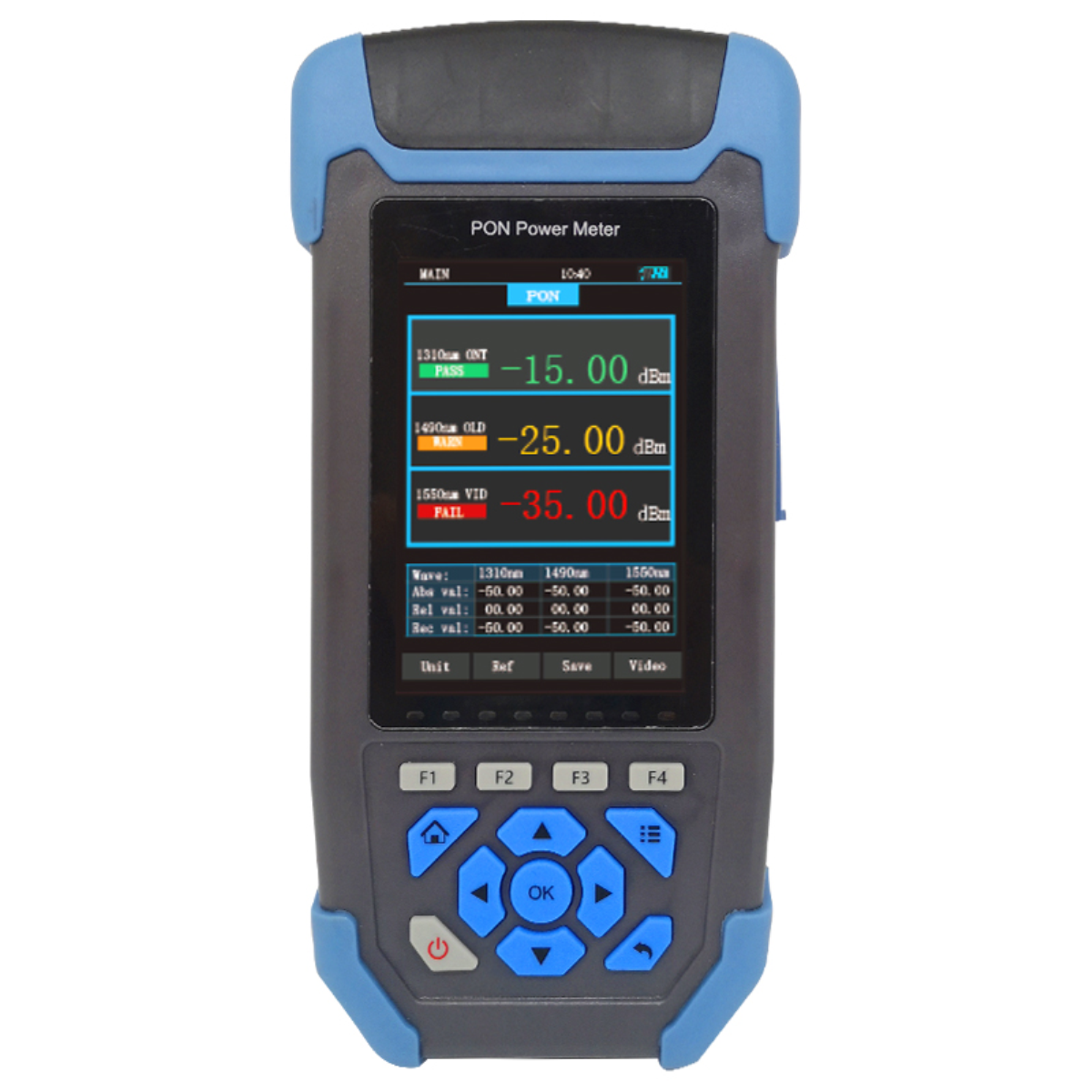

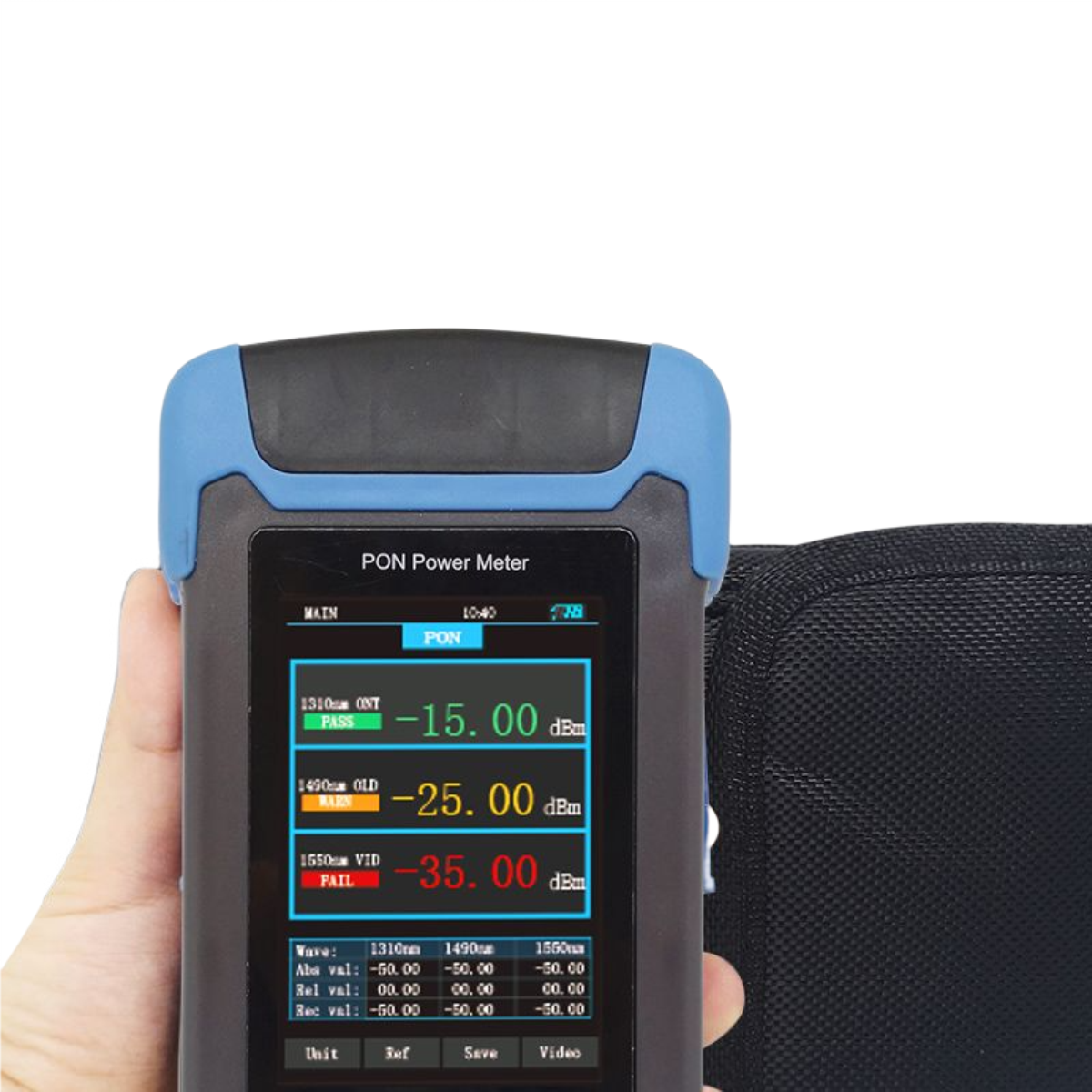

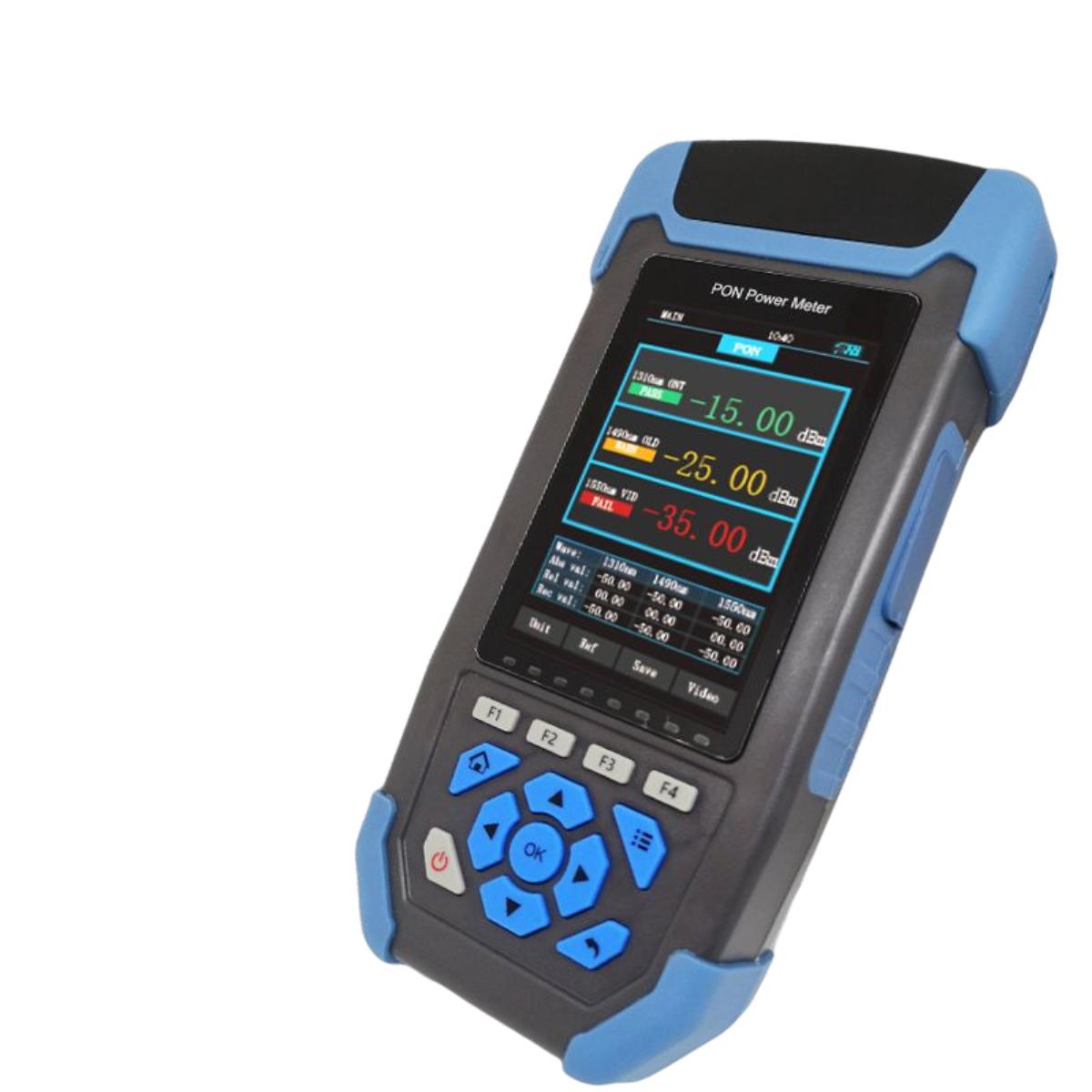

JW3330 PON Power Meter
Main Features:
- 3.5-inch TFT color screen display
- Support PON Power Meter mode
- Support standard optical power meter mode
- Support red light (VFL visual fault location) mode
- Support RJ45 wire sequencing mode
- Support date and time setting
- Support power-saving mode
- Support Lithium battery, AC adapter, USB power supply mode
- Intelligent power management and power detection function
2.JW3330 PON Power meter Specification Table
| Model | JW3330 | Insertion Loss | ≤1.5dB |
| Uncertainty | ≤0.5dB | Wavelength Test | 1310nm up/ 1490nm down/1550up |
| Detection Range | +10~-70dBm/+26~-50dBm | Interface Type | (FC/SC)/PC (optional) |
| Min Display resolution | 0.01dB | Linearity | ≤0.1dB |
| VFL | 650nm 10mW | Display Size | 3.5 inch TFT color screen |
| Dimension (mm) | 188mm×88mm×44mm | Calibration Wavelength | 1310/1490/1550/1625nm |
3. Package Detail
JW3330 Packing list
| No. | Name | Quantity |
| 1 | PON power meter | 1pc |
| 2 | User manual | 1pc |
| 3 | Certification | 1pc |
| 4 | Adapter interface(FC/SC) | 3 |
| 5 | 5V power adapter | 1pc |
| 6 | Micro USB cable | 1pc |
| 7 | The upper computer software CD | 1pc |
