Gigabit Single mode SC Single Fiber Media Converter

Description

WDM Single fiber media converter

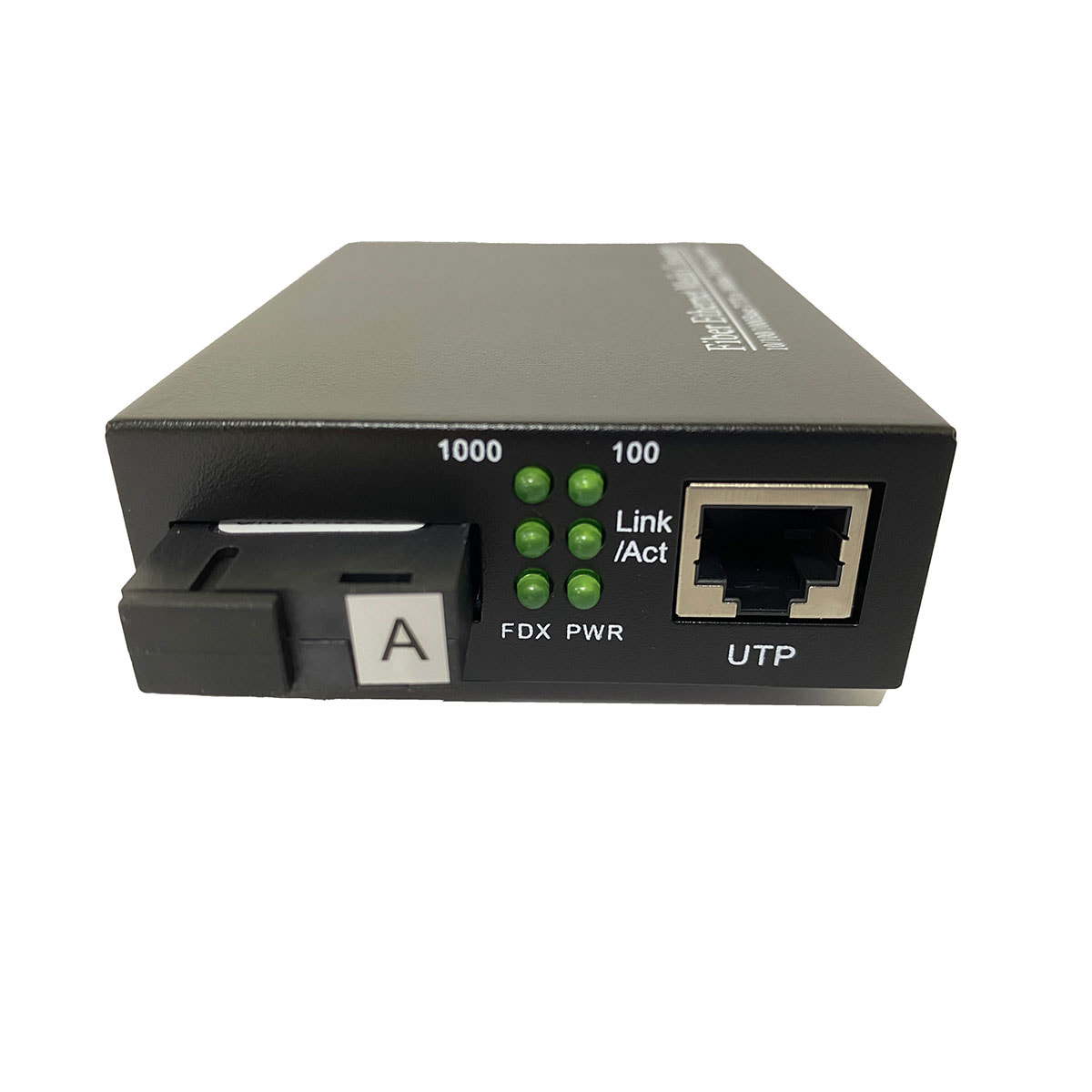

The non-managed fiber media converter is designed with a switch controller and buffer memory that connects two types of segments of operating smoothly. Single fiber converter is equipped with 1 single fiber optic connector for transmitting at 1310nm and receiving at 1550nm, one RJ-45 Jack, and one external power supply receptacle. Six LED indicators are built-in for easy diagnosing and monitoring the status of power, Unshielded Twisted Paired (UTP) Link, UTP Activity, Fiber Link, Fiber Activity, Full duplex, and data rates. Single port WDM media converter provides you SC, FC,ST connectors for your fiber cables and UTP cables.

Single fiber media converter Specification Table

Data Rate (Mbps)	10/100/1000M	Interface	1×RJ-45 connector+1×SC Simplex port
Optical wavelength(nm)	1310nmTX /1550nmRX	Fiber Type (micron)	Single Mode 9/125
Connector Type	One UTP, one SC Fiber	Max Distance	60km
Power	DC 48V to DC 5V	Led Light	PWR,Link/ACT,SPD

Key  Features

• Auto negotiation function allows UTP ports to auto-select 10/100/1000M and Full duplex or half duplex.
• Built-in efficient exchange kernel, broadcasting filtration function, flow control, CRC error check.
• Supports Spanning Tree to conduct fault-tolerant network.
• Supports 10/100Mbps or 10/100/1000mMbps full/half duplex self-adaptive transmission and auto-negotiations, easy upgrades.
• Max. transmission distance can be 120km
• External power or built-in power.
• Standalone type can be installed into 14slot 2U Rack, card type into 16 slot Rack.

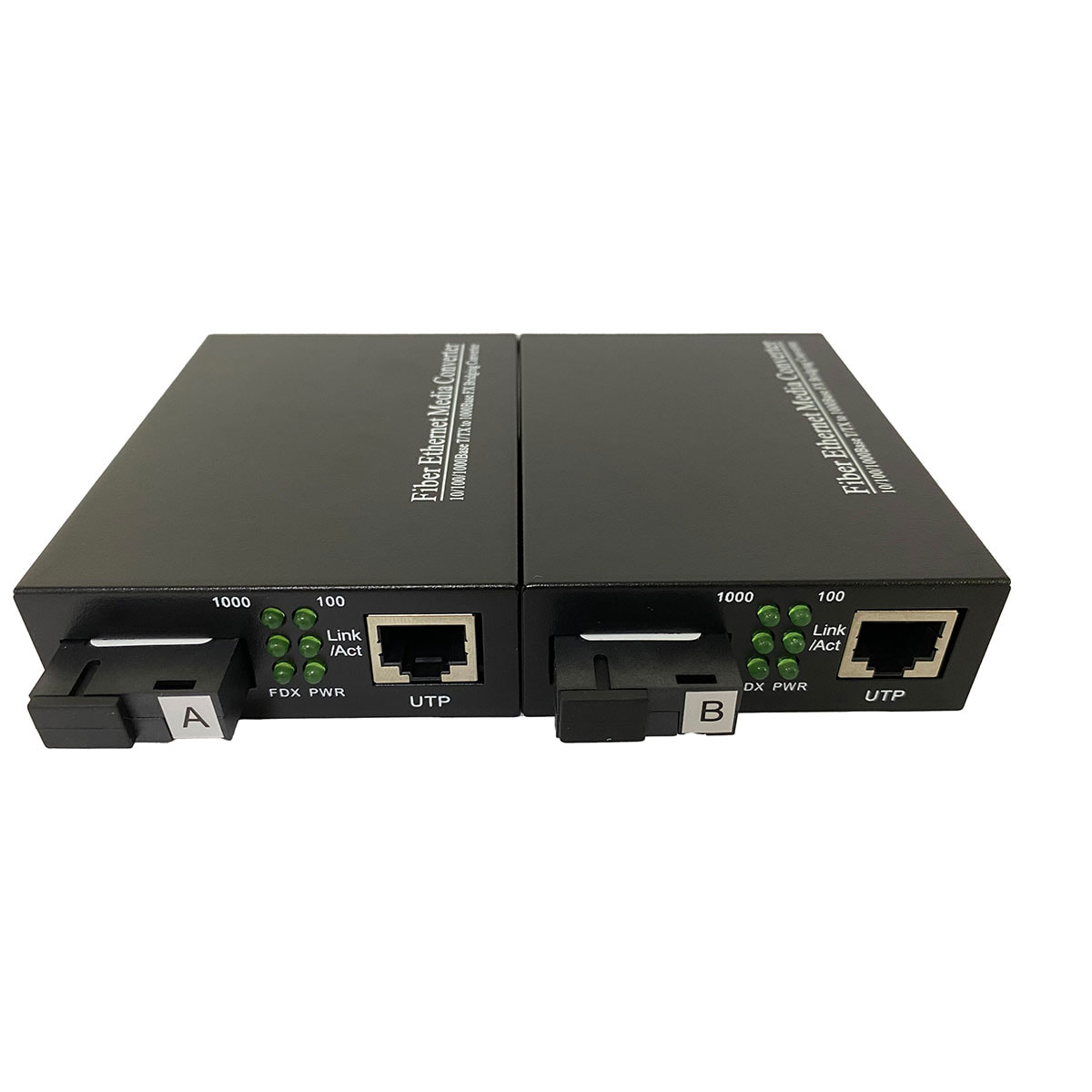

• WDM TX1310/RX1550nm (A side), TX1550/RX1310nm (B side)

Application Optical Cable

• Multimode optical cable: 50/125um,62.5/125um,100/140um
• Singlemode optical cable: 8.3/125um,8.7/125um,9/125um,10/125um
• UTP Cable: Cat5/5e,Cat6

Standards Protocol

IEEE802.3 Ethernet Standard

IEEE802.3u fast Ethernet Standard

IEEE802.3d Spanning Tree Standard

Panel Structure Chart

Single fiber SC Media Converter Gigabit Single-mode

10/100Mbps Media Converter

 10/100/1000Mbps Media Converter

10/100Mbps Mini Type Media Converter

 Front Panel of SFP Media Converter

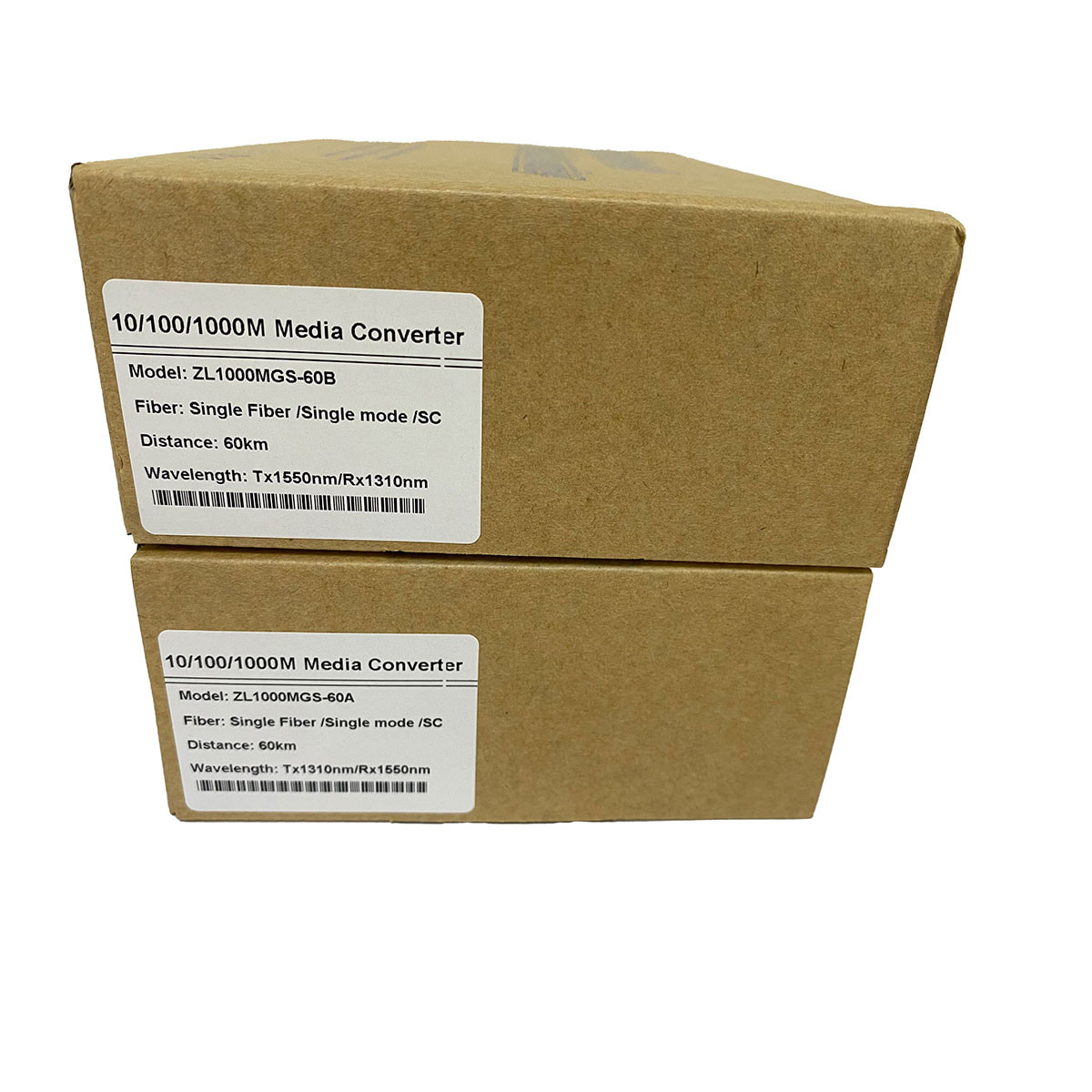

Packing List

Please check the following items from the package before installing the converter

1*Fiber Media Converter

1*Power Adapter

1*User Manual
