- Model: SFP-10G-T
- Form Factor: SFP+
- Data Rate: 10Gb/s
- Connector: RJ45
- DDM/DOM:not supported
- Distance:30m
- Cable Type: Copper
- Warranty Period:5years
- Fast Delivery Time
- 100% Testing Before Shipment

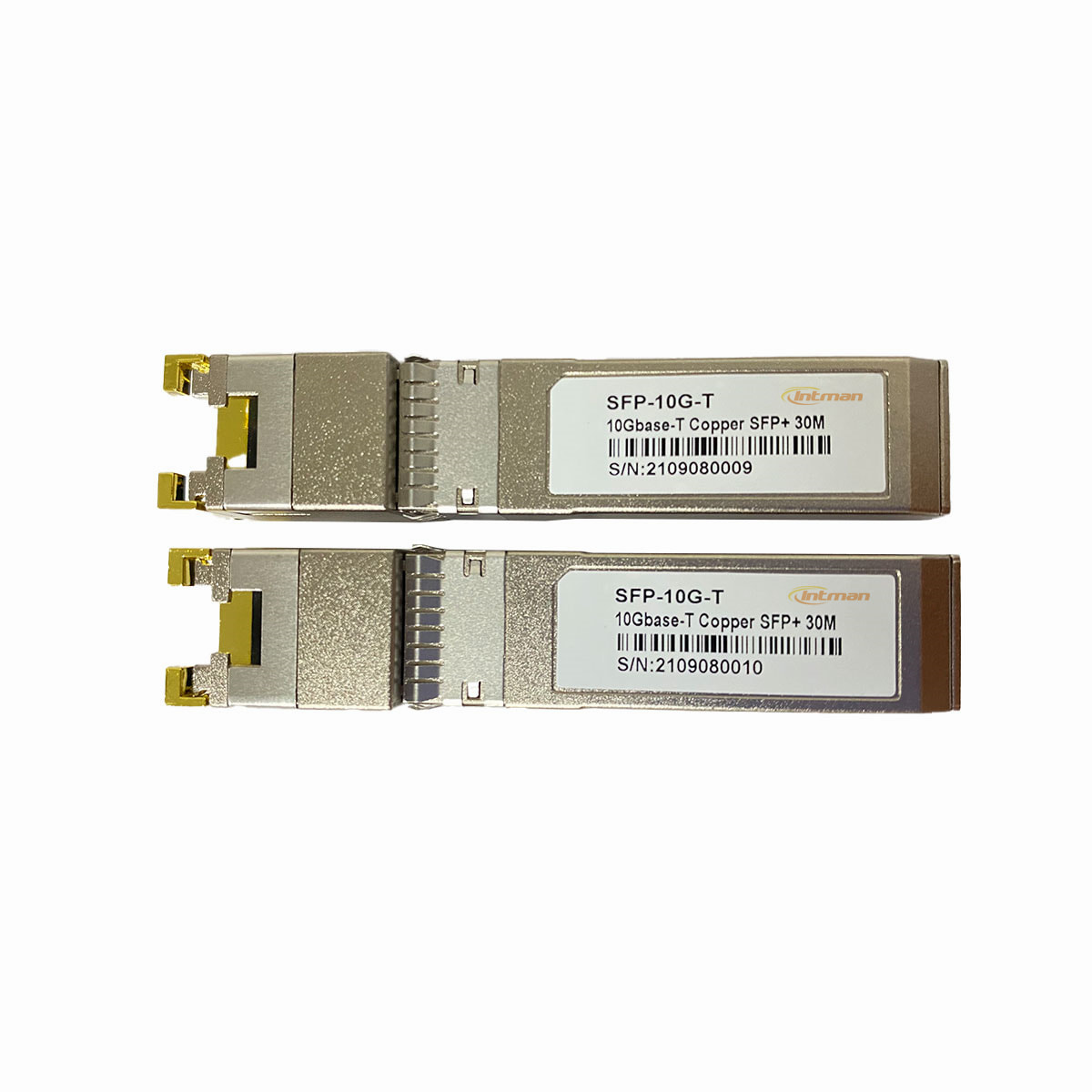

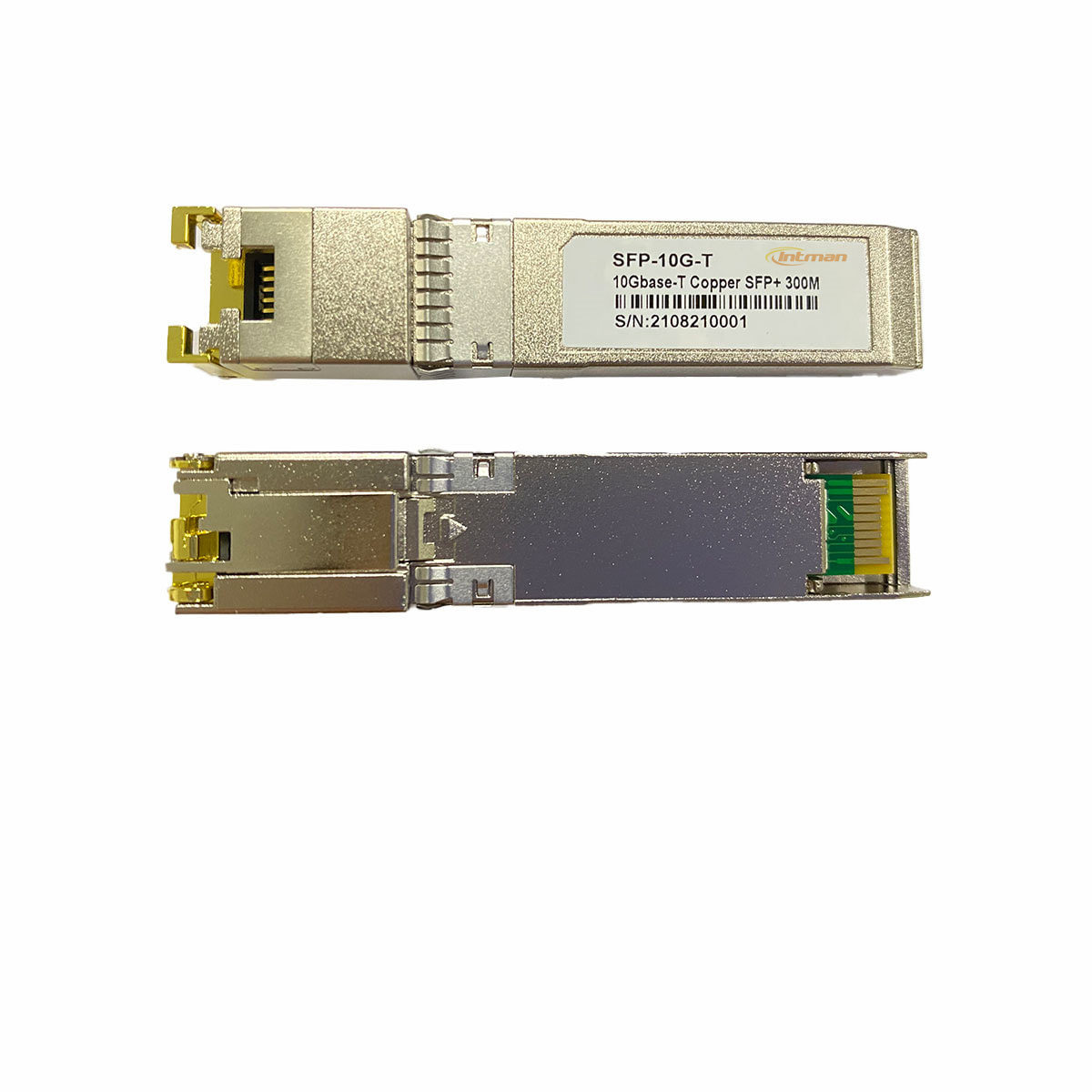

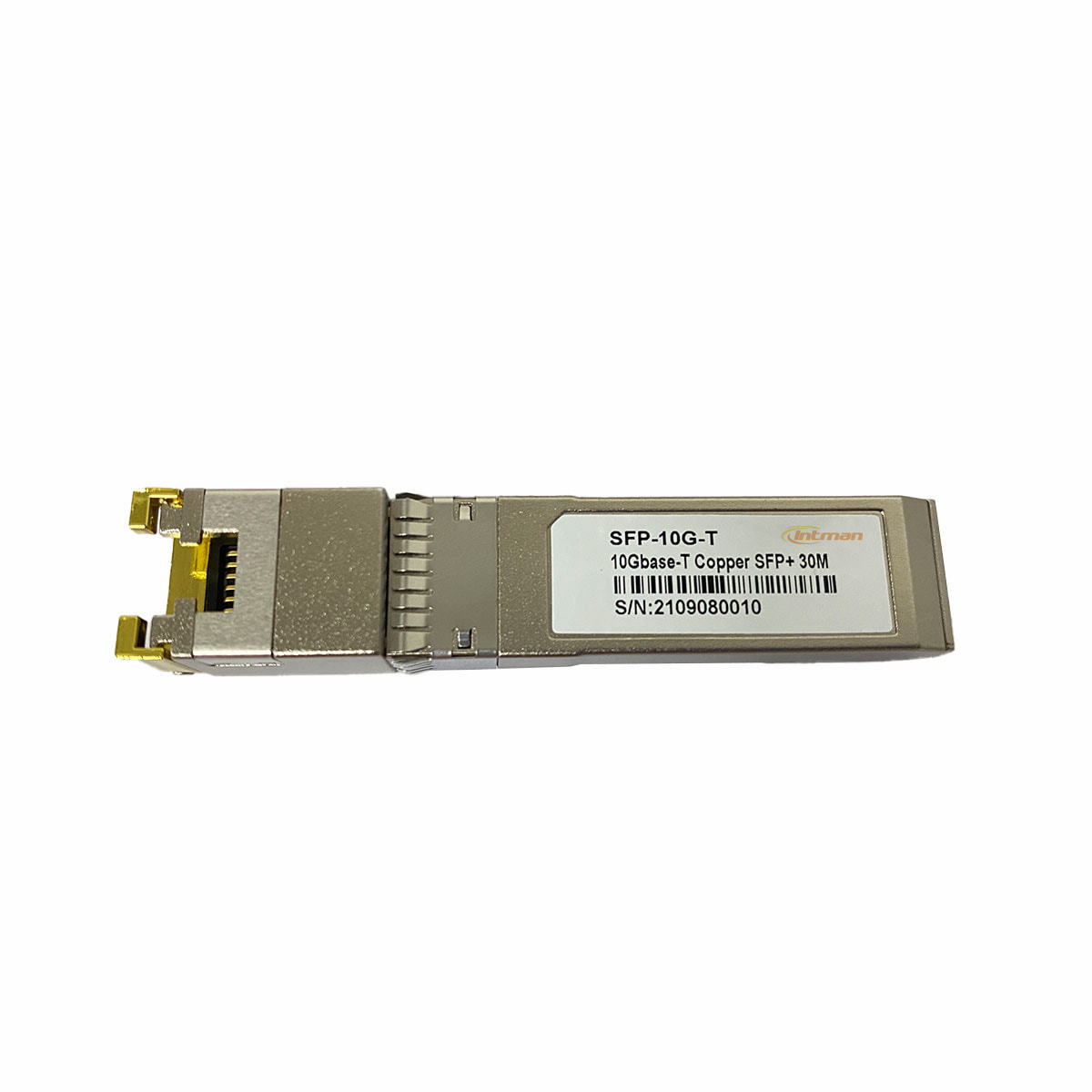

SFP-10G-T RJ45 10G Copper SFP+ 30Meter Transceiver Module
Description
10GBase-T Copper SFP+ Transceiver
SFP+-T Copper Small Form Pluggable(SFP) transceivers are high-performance, cost-effective module compliant with the 10G Ethernet and 10GBASE-T standards as specified in IEEE 802.3az, which support 10Gbps data-rate up to 30 meters reach over unshielded twisted-pair category 6A/7 cables.
Specification Table
| Data Rate (Mbps) | 10Gbps | Form Factor | SFP+ |
| Power Consumption | ≤2.3W | Cable Type | Copper |
| Connector Type | RJ-45 | Distance | 30m |
| EMC | Supported | DDM/DOM | Not Supported |
| Commercial Temperature Range | 0 to 70℃ | Warranty | 5Years |
Key Features
- Up to 10Gb/s bi-directional data links
- Hot-pluggable SFP+ footprint
- Fully metallic enclosure for low EMI
- Low power dissipation
- The compact RJ-45 connector assembly
- Access to physical layer IC via a 2-wire serial bus
- Supports Links up to 30m using Cat6a/7 Cable
- RoHS Compliant
Application
- 10Gigabit Ethernet over Cat6a/7 cable
- 5000GBASE-T over Cat5e cable
- 2500GBASE-T over Cat5e cable
- 1.25 Gigabit Ethernet over Cat5e cable
- 100M Ethernet over Cat5e cable
- 10M Ethernet over Cat5e cable

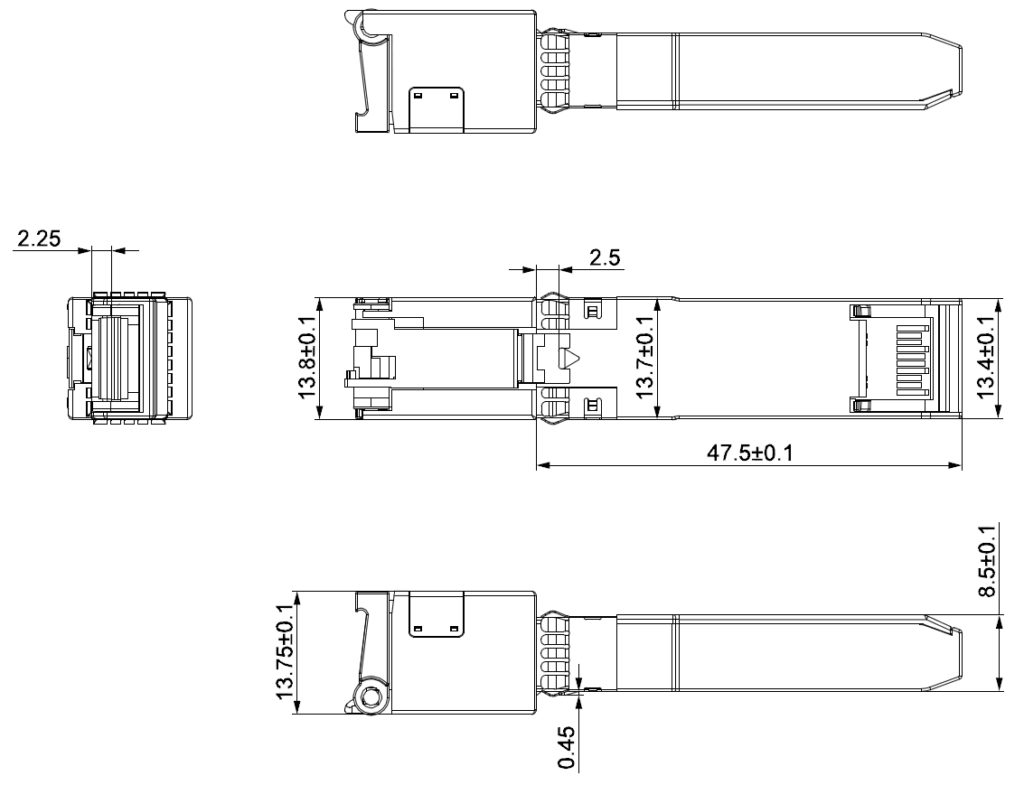

Mechanical Dimensions
SFP-10G-T drawing Mechanical Specifications
Ordering Information
| Part Number | Product Description |
| SFP-10G-T | 10Gbase-T Copper SFP+ Transceiver 30M 0~70°C |
| SFP-10G-TI | 10Gbase-T Copper SFP+ Transceiver 30M -40~85°C |
