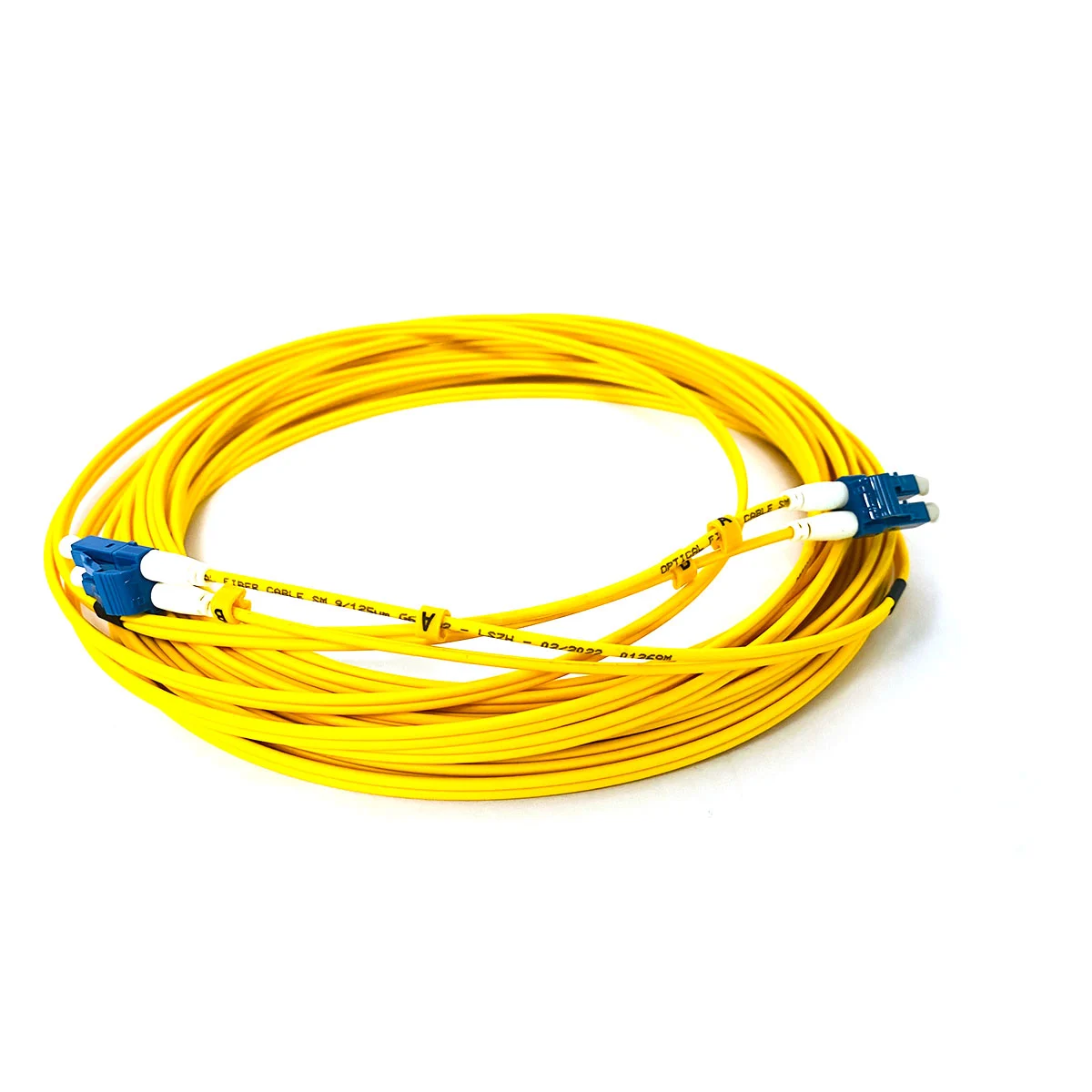

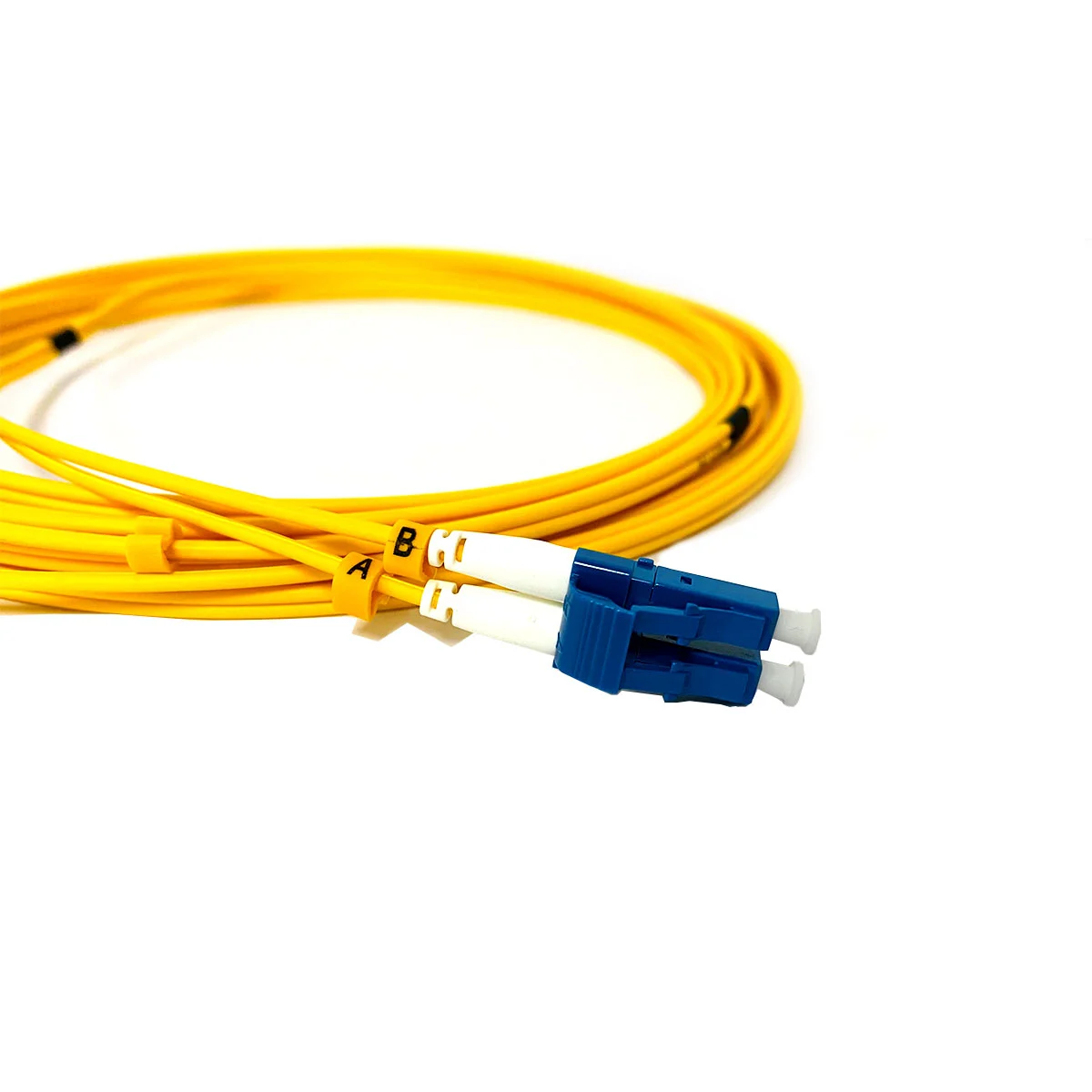

Short boot LC fiber patch cables are used where there is a requirement for limited space, by using the short boot LC connectors, the whole connector body is greatly reduced. Intman cable offers various short body LC fiber optic patch cords, they can be with different color connectors boots and cable diameter is 2mm or 3mm.
Intman LC short body fiber optic patch cables and LC short boot fiber optic patch cords use environmental protection materials and their optical performance is quite good. The LC short boot fiber optic cables are our regular products, the delivery time is fast and the price is competitive.
| Connector | LC UPC Short Boot to LC UPC Short Boot | Cable Diameter | 2.0mm |
| Fiber Mode | OS2 9/125um | Wavelength | 1310/1550nm |
| Jacket Color | Yellow | Jacket Material | LSZH |
| Fiber Count | Duplex | Fiber Grade | G657A1 |
| Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
| Min. Bend Radius (Fiber Core) | 10mm | Min. Bend Radius (Fiber Cable) | 10/5(Dynamic/Static) |
| Operating Temperature | -20~70℃ | Storage Temperature | -40~80℃ |
LC connectors are already compact, but sometimes when you use them in closures, you may still find the connector body is too long and wastes space. some closures are minimal, if the connector is long the closure doors cannot be closed properly, and the LC short body LC short boot fiber optic patch cables are created to solve this problem.
Fiber Optic Patch Cord Singlemode OS2 9/125um LC UPC to LC UPC Application
OS2 LC UPC to LC UPC Fiber Optic Patch cord Network Connectivity
