Signal Fire AI9 Fusion Splicer Machine Price

Description

1. AI9 Fusion Splicer

AI9 Fusion Splicer uses the latest core alignment technology with auto focus and six motors,it is a new generation of fiber fusion splicers.Signal Fire AI9 Fusion Splicer Machine perfect balance, dustproof, shatterproof, and shockproof as well. For arid climates, under conditions of snowstorms, high altitudes, and supreme temperature environments.

2.Main Features:

1.3in1 Fiber Holder

SM,MM ,bare fiber ,pigtails,rubber-insulated,multifiber cable.

2. 5” TFT Display

It adopts 5inch 800×480 high-resolution screen,and the operation graphics are simple and intuitive which ups to 300tims focus amplification.

3.Built-in Power Meter&VFL

Effectively measure connection loss,verify continuity and help assess fiber link transmission quality. Also it is built-in and not take up place.

4.7800mah Lithium Battery

7800mA high-capacity lithium battery,charging time ≤3.5hours,continuous splicing and heating about 200times.

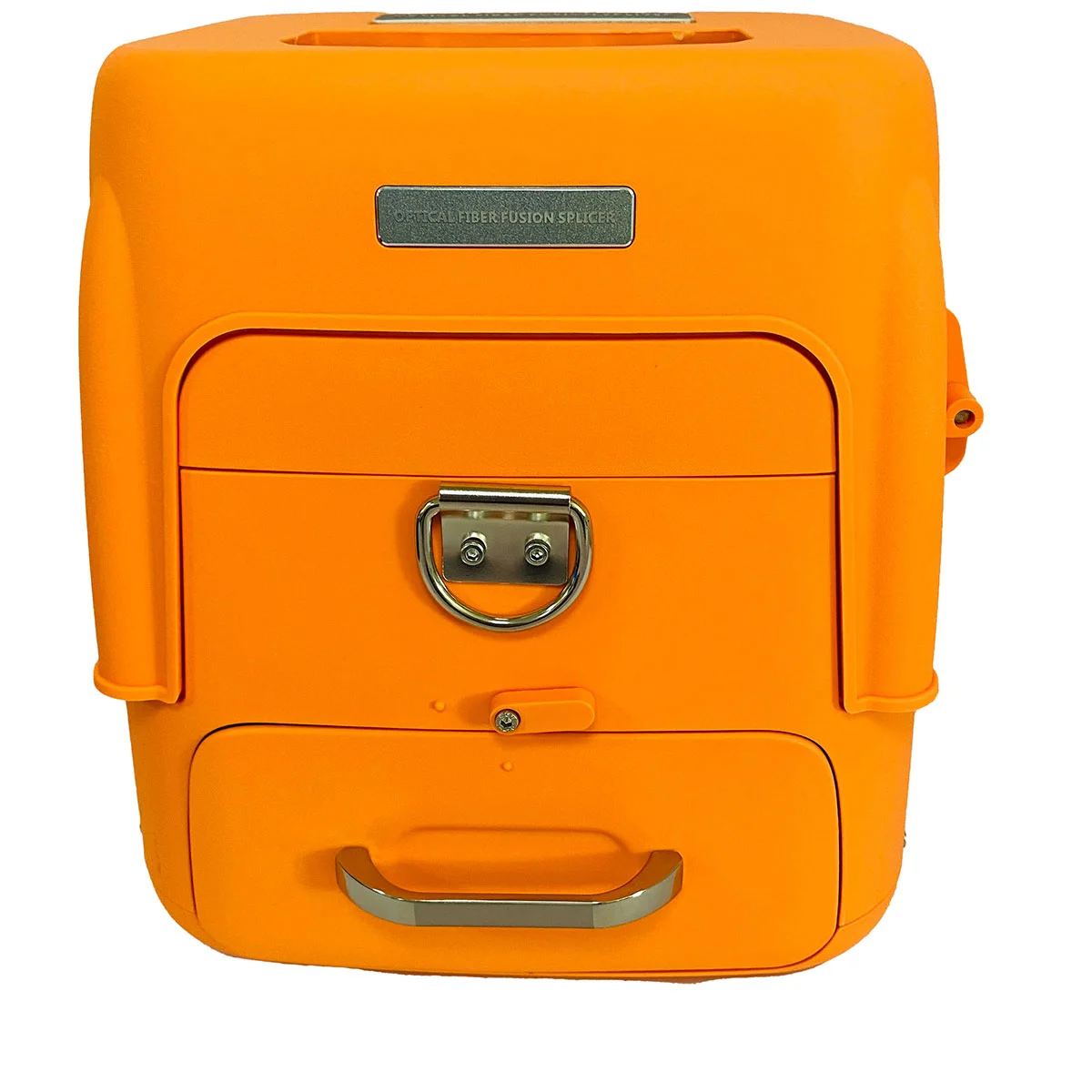

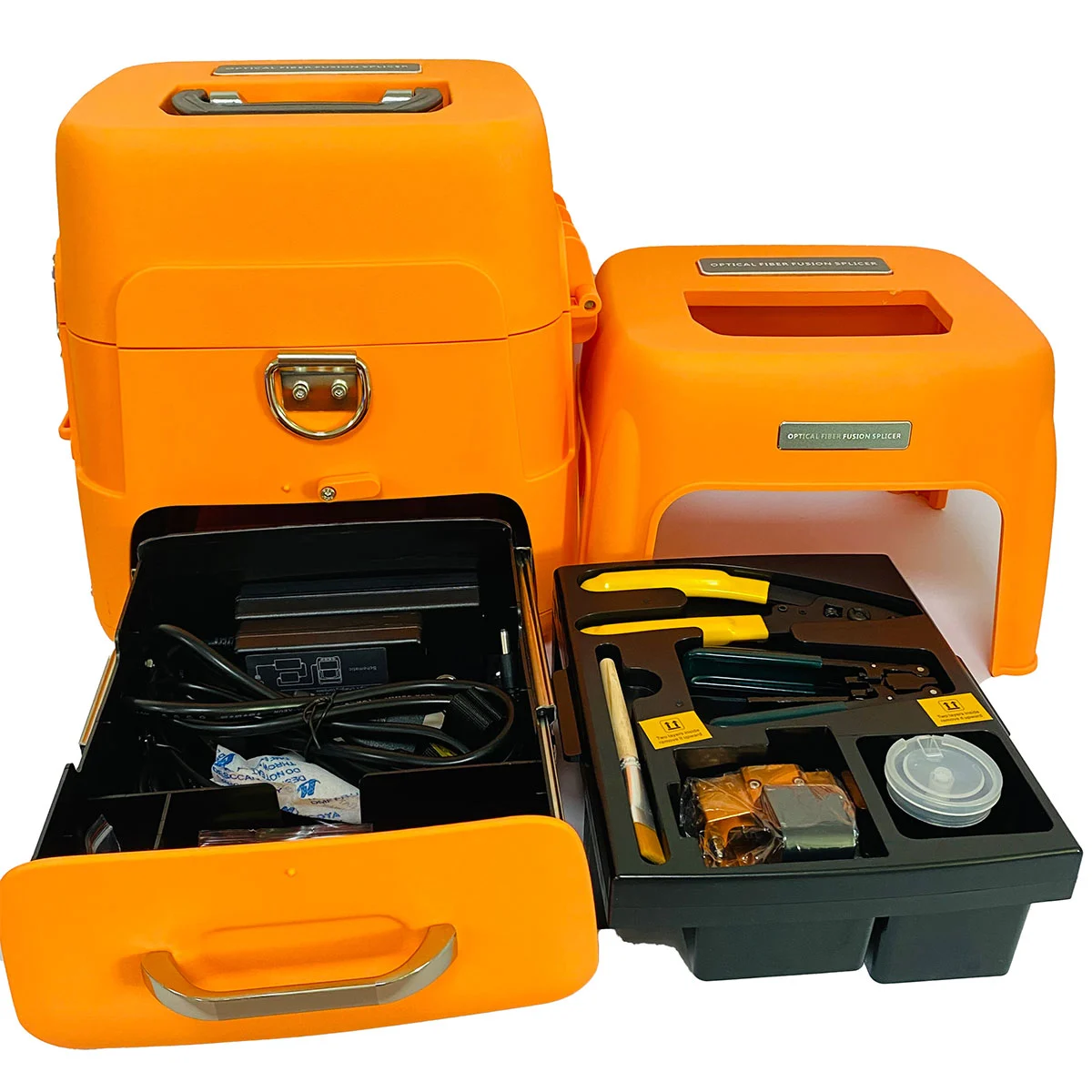

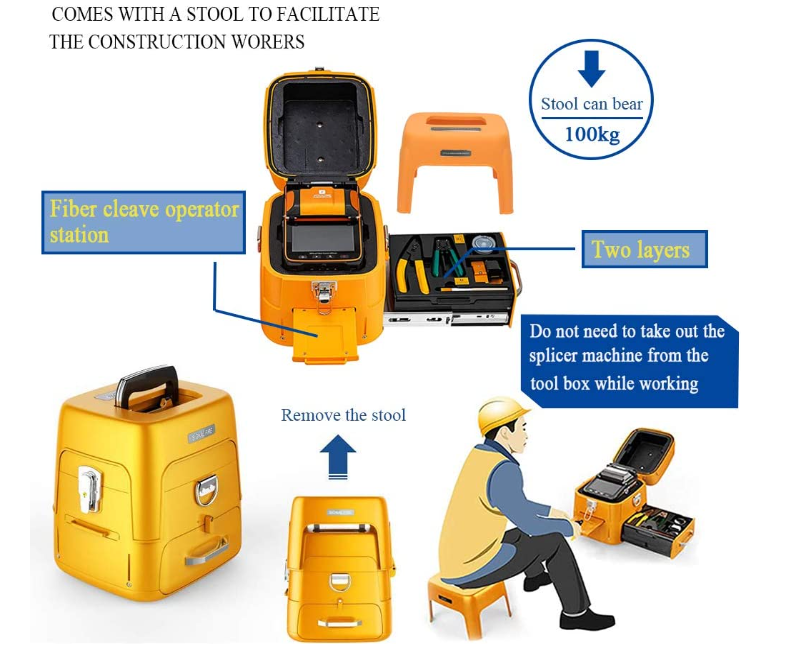

5.Compact&Portable

The toolbox comes with a stool to facilitate the construction workers,can bear 100kg. Do not need to take out the Signal Fire AI9 Fusion Splicer machine from the toolbox while working.

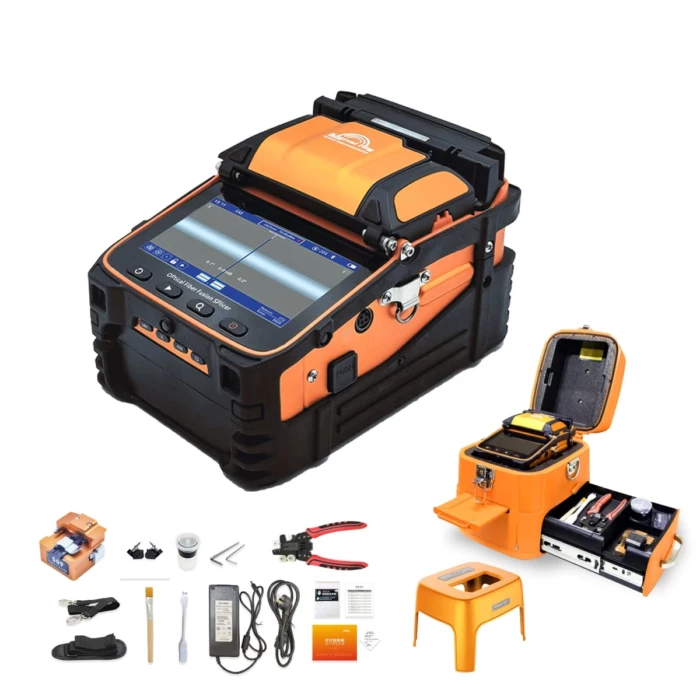

AI9 Fusion Splicer

3.Applications :

• Fiber Optic connection
• The diameter of the sheath is between 80 and 150microns.
• Particularly suitable for fiber and cable projects in the telecommunications.
• Railways
• Petrochemical
• Broadcasting
• Television sectors⌈

4.Fusion splicer Ai9 Specifications

5. Package Detail

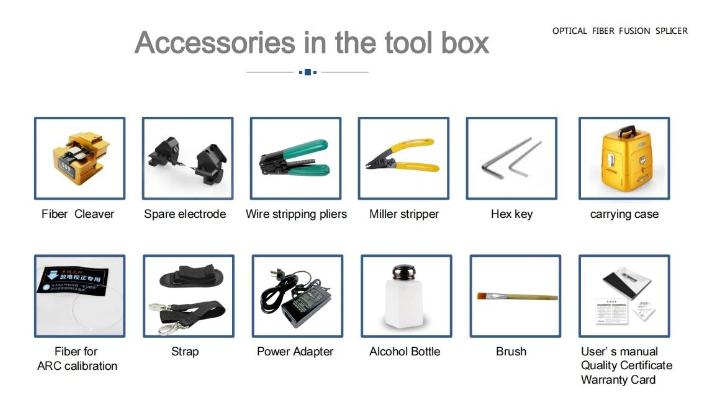

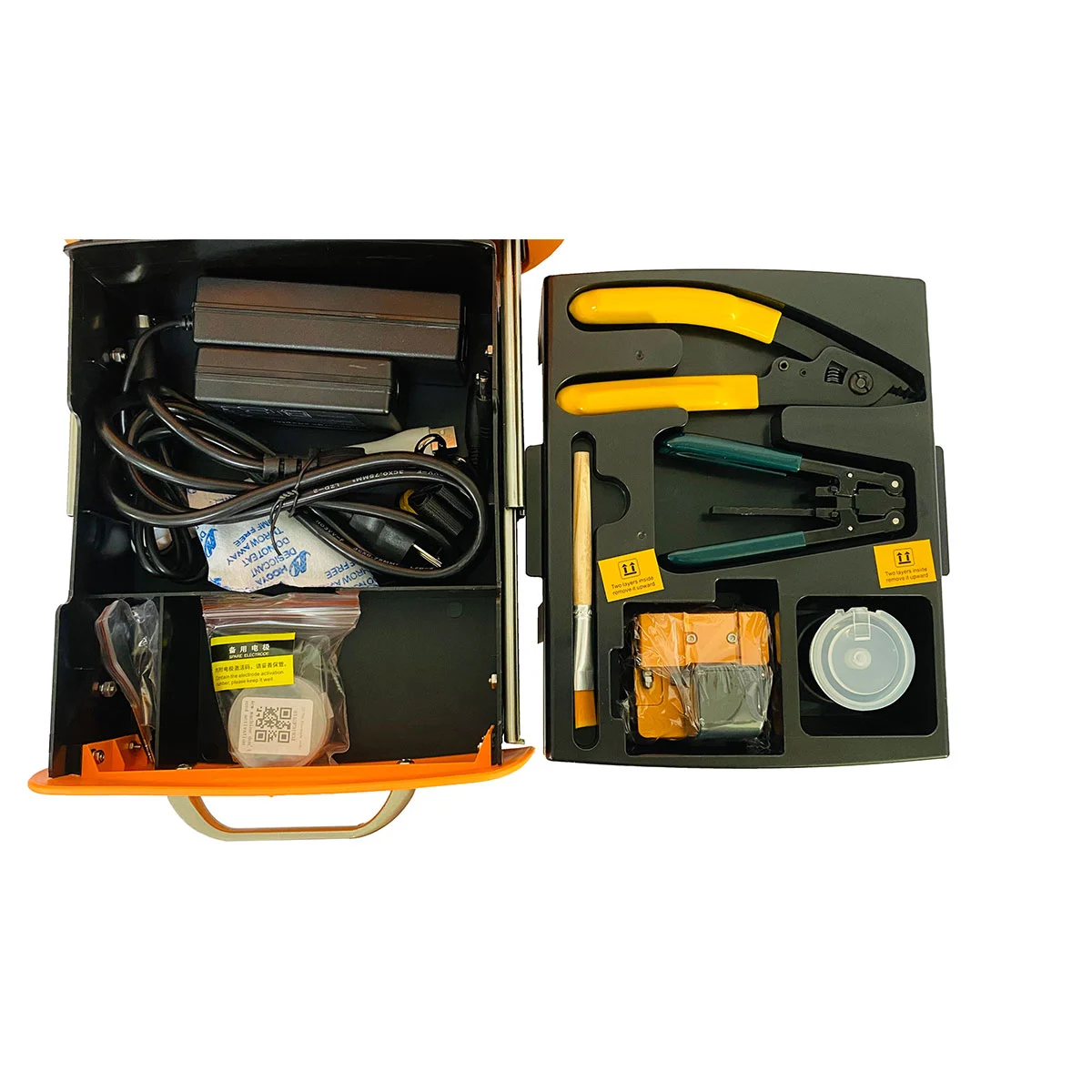

AI9 Fusion Splicer Accessories in the tool box
