- Name: Optical Fiber Identifier
- Model : INT3306
- Measurement Range:+13~-50dBm
- Probe type :InGaAs
- Wavelength Test : 800~1700nm
- Adapter type:250um,900um,2mm,3mm
- Display screen: Color-LCD
- OPM Module test range:+26～-50 dBm
- VFL: 650nm 10mW
- VFL test interface: 2.5mm universal interface
- Dimension: 220×38×28mm

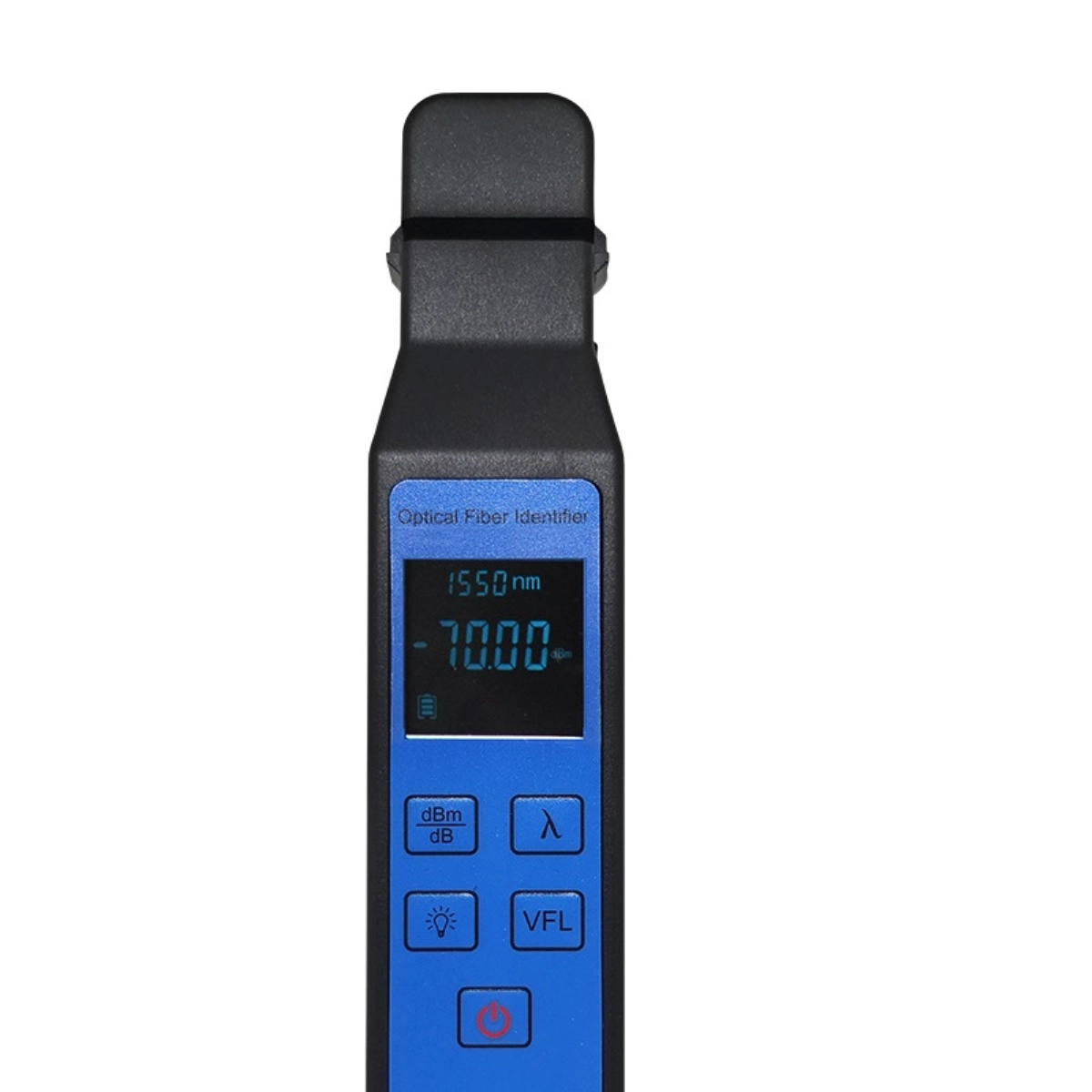

Single Mode & Multimode Optical Fiber Identifiers 4 in 1 Test Fixture
Description
1. INT3306E Fiber optic identification
INT3306E Fiber optic identification instrument is a new comprehensive test instrument newly developed by our company, which not only has the function of a conventional fiber optic identification instrument to carry out nondestructive fiber optic identification detection work in any position of single-mode and multimode fiber but also has the optical power module and red light visual fault location function necessary for fiber optic link construction and maintenance detection, which is a high-performance tester in current fiber optic network maintenance detection.

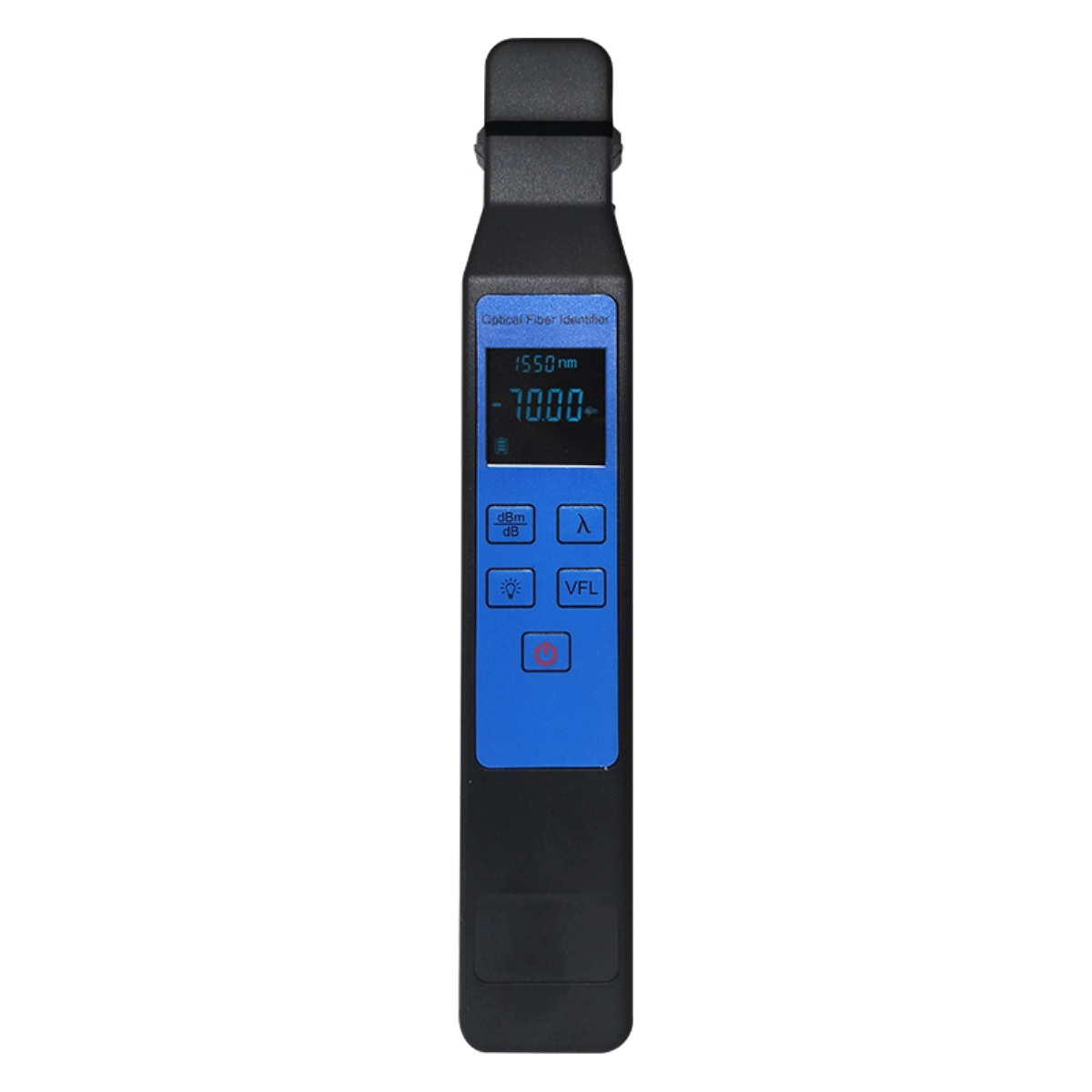

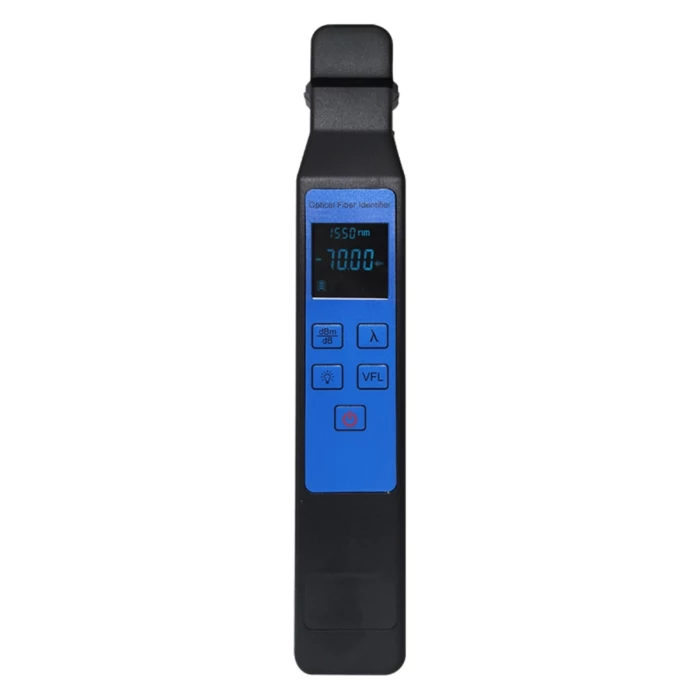

Optical Fiber Identifier
Main Features:

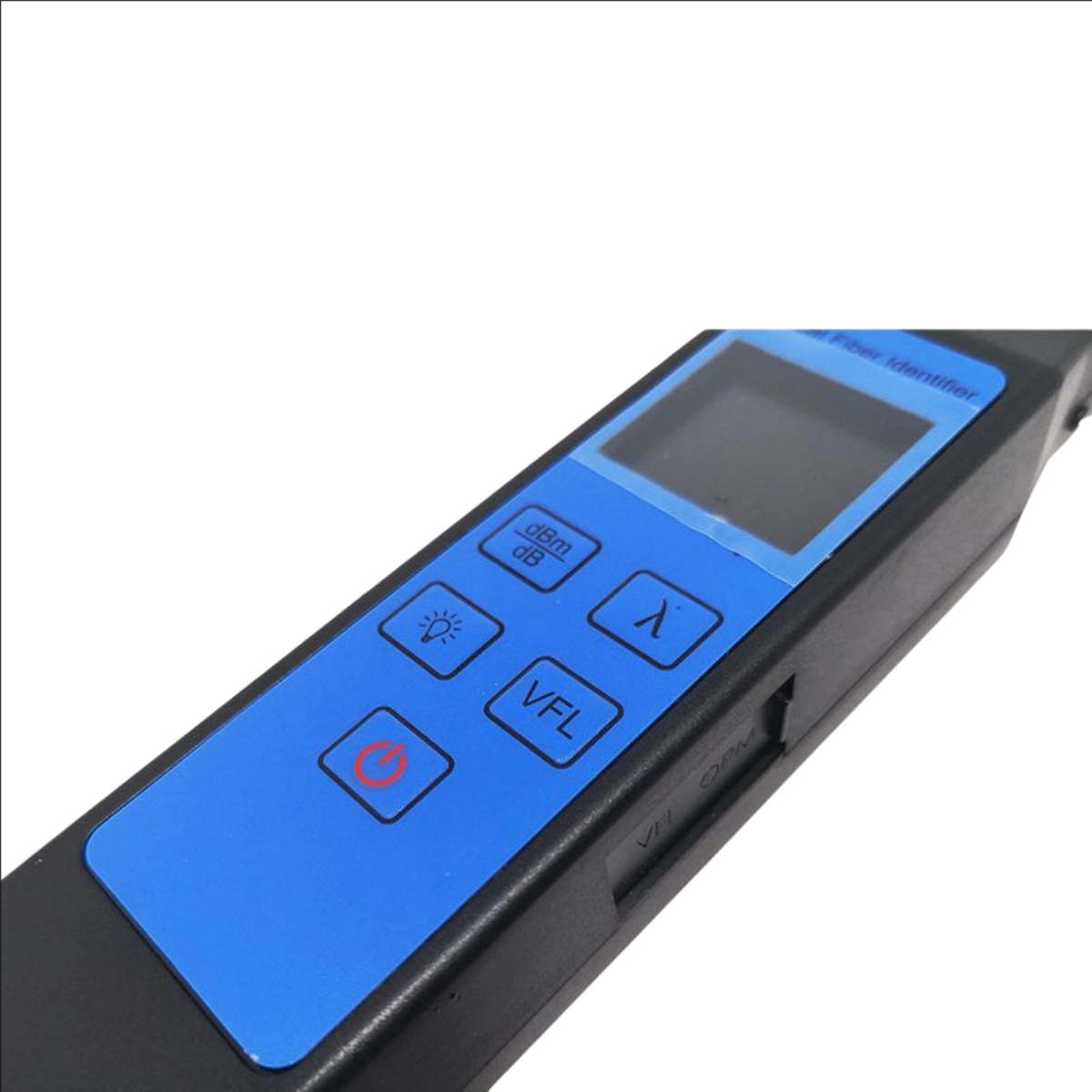

- Color screen display
- With VFL function
- With ordinary power meter function
- Low insertion loss,test dynamic range
- With online test to identify power direction,frequency detection function
- Low battery prompt

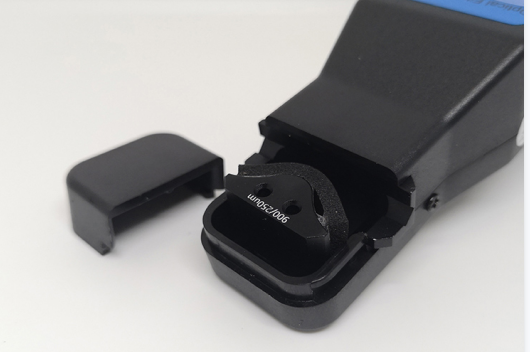

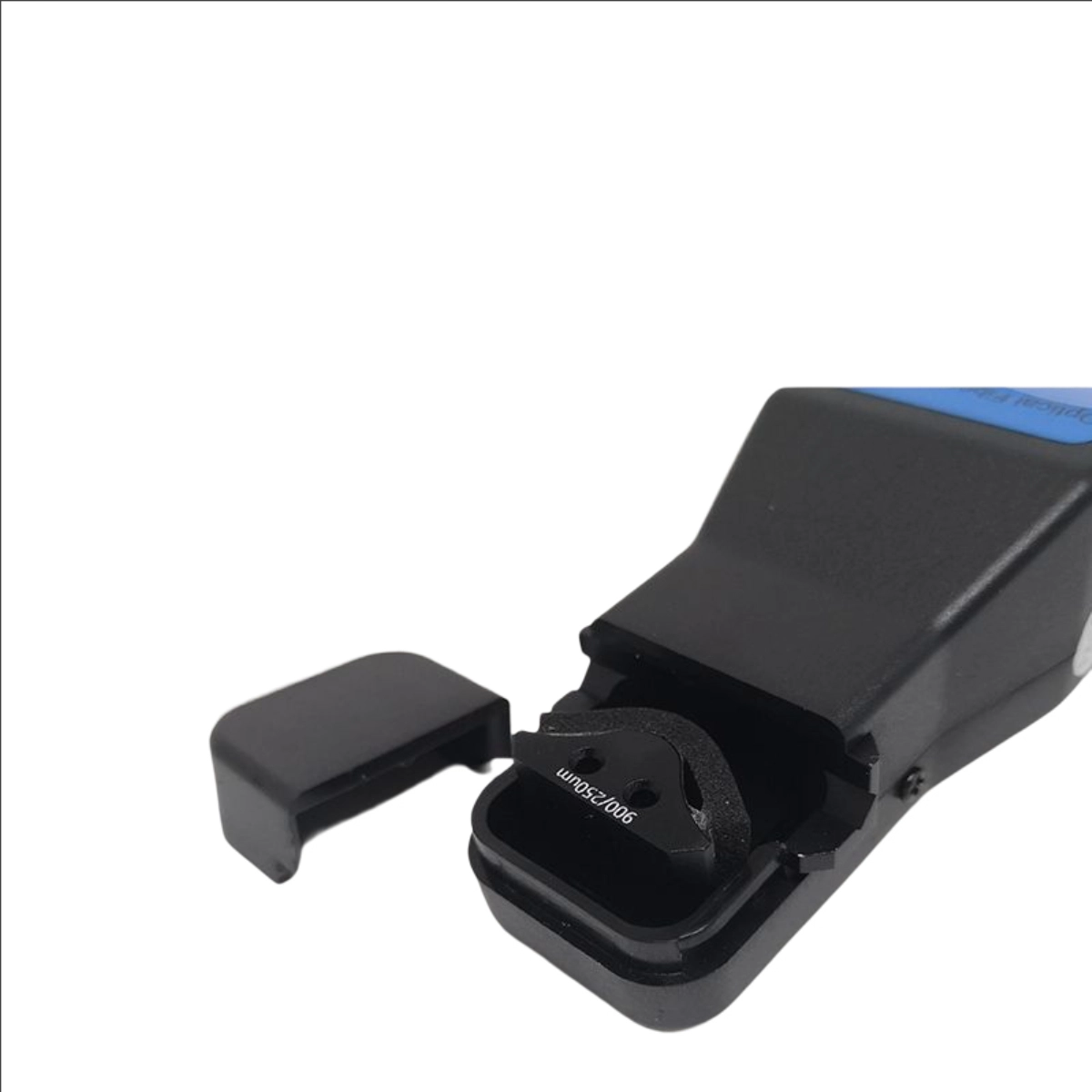

- Metal structure 4in1 test fixture
(can detect 250/900um and 2mm to 3mm of various optical fibers)
2.Optical Fiber Identifiers INT3306E Specification Table
| Model | INT3306E | Wavelength Range | 800~1700nm |
| Probe type | InGaAs | Adapter type | 250um,900um,2mm,3mm |
| Modulation Frequency (Hz) | CW,270,1K,2K | Optical fiber signal display detection range | +13~-50dBm |
| Signal frequency indication(Hz) | 270,1k,2k | Signal direction detection range | +13~-35dBm |
| Standard OPM module | |||
| Test wavelength (nm) | 850,1300,1310,1490,1550,1625nm | ||
| Power test range(dBm) | +26~-50dBm | ||
| Unit | dBm,dB,xW | ||
| Resolution ratio (dB) | 0.01dB | ||
| Uncertainty (dB) | ≤0.5dB | ||
| Test interface | 2.5mm universal interface | ||
| VFL module | |||
| Wavelength (nm) | 650±10 | ||
| Output Power (mW) | ≥10 | ||
| Test interface | 2.5mm universal interface | ||
3. Package Detail
Optical Fiber Identifier Configuration
| No. | Name | Quantity |
| 1 | Main device | 1pc |
| 2 | User manual | 1pc |
| 3 | Certification | 1pc |
| 4 | Carry bag | 1pc |
