- Name: SC Fiber Connector
- Model: INT-SCU-2.0MM
- Color: Blue
- Ferrule Hole Size: 125um
- Ferrule: Ceramic Ferrule
- Diameter:2.0mm
- Polish Type: PC/UPC/APC optional
- Mechanical Resistance:100N tensile load
- Good Supply Capacity
- Fast Delivery Time
- 100% Testing Before Shipment
Single mode SC Fiber Connectors APC UPC for Fiber Optic Cable
Description
SC Fiber Optic Connector Kits With Ferrule
The SC Connectors and adapters were developed by Lucent Technologies. These connectors are composed of a plastic housing with an RJ45 push-pull type clip. Also considered a Small Form Factor (SFF) Connector by using a 1.25mm OD ferrule, this SC SM Simplex 2.0mm 3.0mm connector is compact, high density, and high performing at a low cost.
0.9mm 2.0mm 3.0mm SC LC ST FC Fiber optic connector
Characteristics:
- Good performance and High success rate.
- Easiness in installation with an average splicing time of 15sec.
- The special tool is simple and convenient to use.
- Reusable and repeat operation times are up to 100.
- Integrated Protection of the casing to prevent the connector from impact.
- On-line tension is up to 20N to protect the connector from dragging.
- The maximum tension is up to 100N. It is the safety connector.
- Storage/Operation temperature: -40℃ to +70℃
SC UPC fiber connector

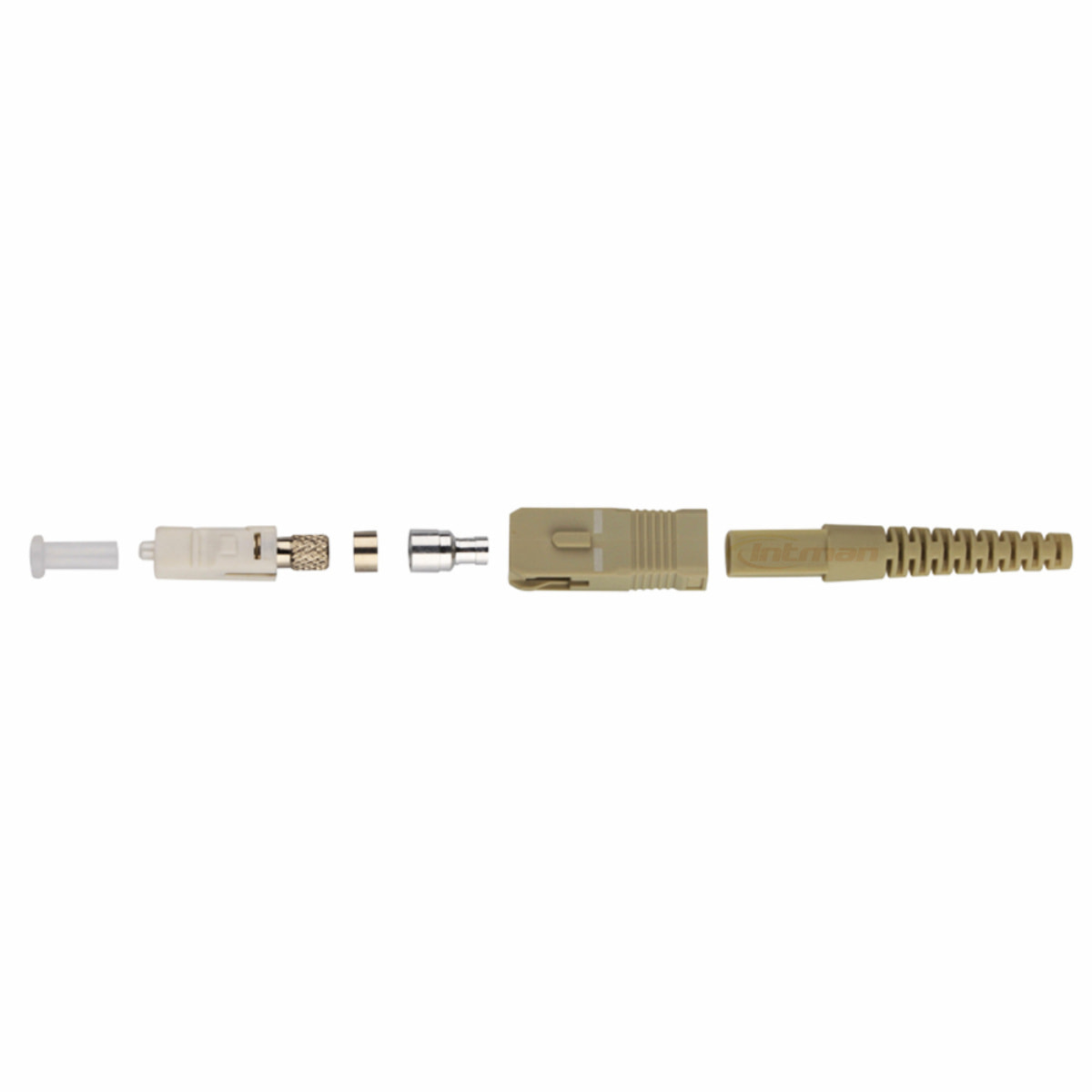

SC MM fiber cable connector

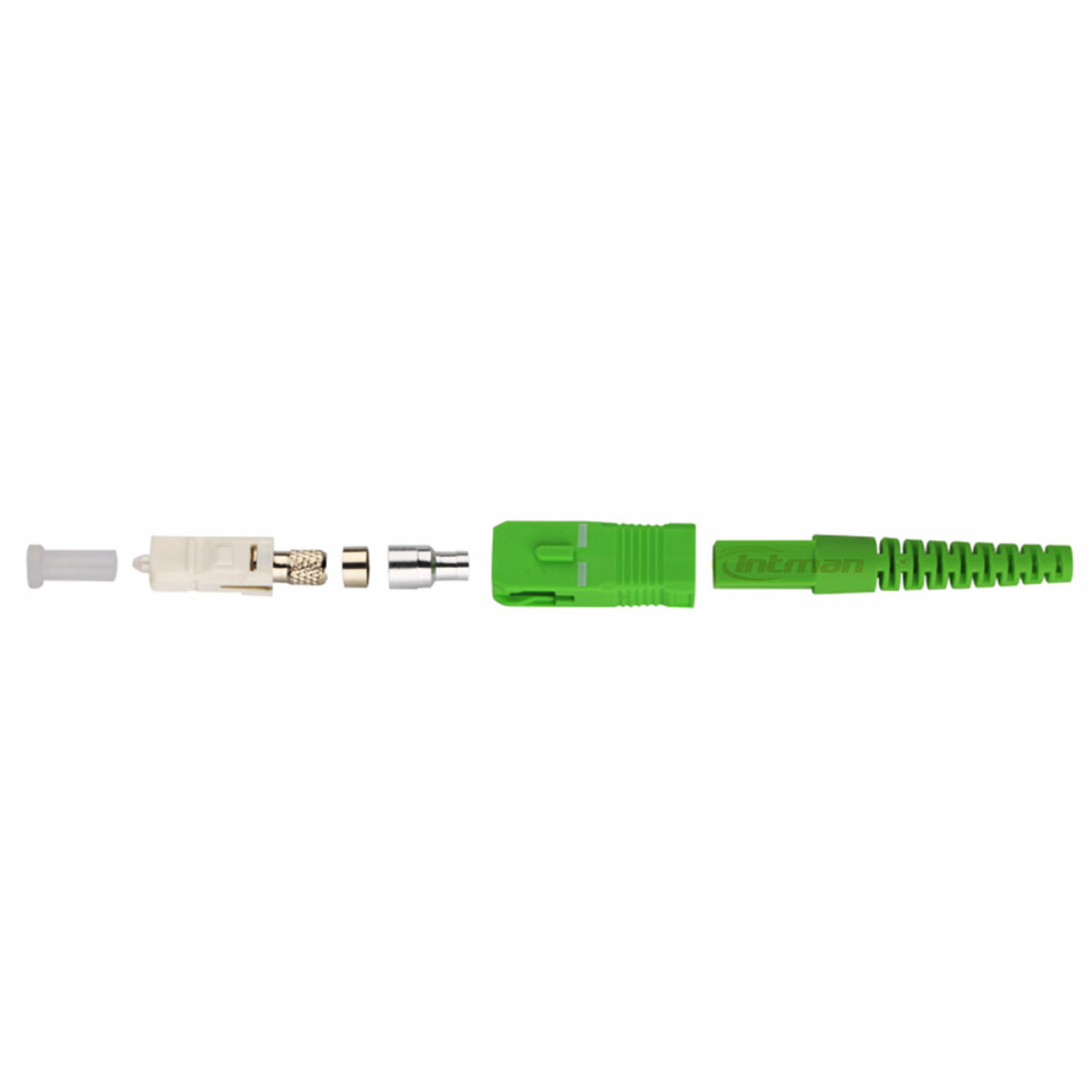

SC APC fiber connectors
Singlemode SC/UPC Fiber Fast Connector Specification Table
| Singlemode(UPC) | Singlemode(APC) | Multimode | |
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.25dB |
| Return Loss | ≥55dB | ≥65dB | ≥35dB |
| Durability | ≤0.1dB typical change,1000times mating | ||
| Operating Temperature | -45 to +85 degree | ||
|
|
125.0+1/-0um,concertricity≤1.0um | 125.0+1/-0um,concertricity≤0.5um | 125.0um,concertricity≤3.0um |
| 125.3+1/-0um,concertricity≤1.0um | 125.3+1/-0um,concertricity≤0.5um | 127.0um,concertricity≤3.0um | |
| 125.5+1/-0um,concertricity≤1.0um | 125.5+1/-0um,concertricity≤0.5um | 128.0um,concertricity≤3.0um | |
| 126.0+1/-0um,concertricity≤1.0um | 126.0+1/-0um,concertricity≤0.5um | ||
SC UPC Singlemode simplex Optic Connectors Features
- Low insertion loss and back reflection loss
- Ferrule end surface pre-domed
- Precision anti-rotation key and corrosion-resistant body
- UL-rated plastic housing
- Telcordia style boots
- Free-floating ceramic ferrule
SC Singlemode simplex Optic Connectors Applications
- Telecommunications networks
- LAN (Local Area Network)
- Test equipment
- Data centers
- FTTX/FTTH(Fiber To The Home)
- CATV&CCTV
- High-Speed transmission systems
- Fiber Optic sensing
Order Information

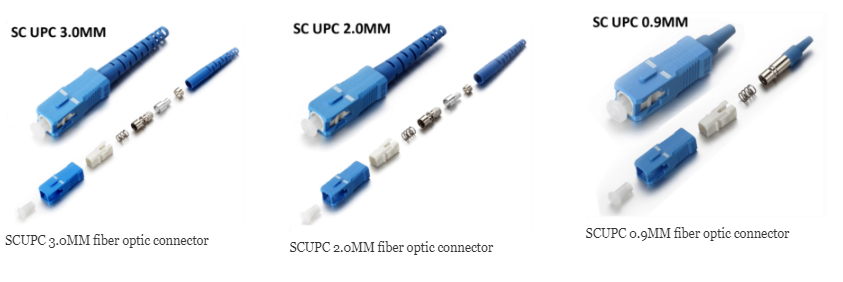

different types of sc fiber connectors
