- Name: LC Fast Connector
- Color: Green/Blue/Beige
- Length: 53.3mm
- Apply cable: 0.9/2.0/3.0mm round cable
- Diameter of Fiber coating:900um
- Polish Type: UPC/APC optional
- Tensile Strength:≥40N/2min
- Good Supply Capacity
- Fast Delivery Time
- 100% Testing Before Shipment
Assembly Quick Installable LC Optical Fiber Fast Connector
Description
Quick LC Optical Fiber Fast Connector

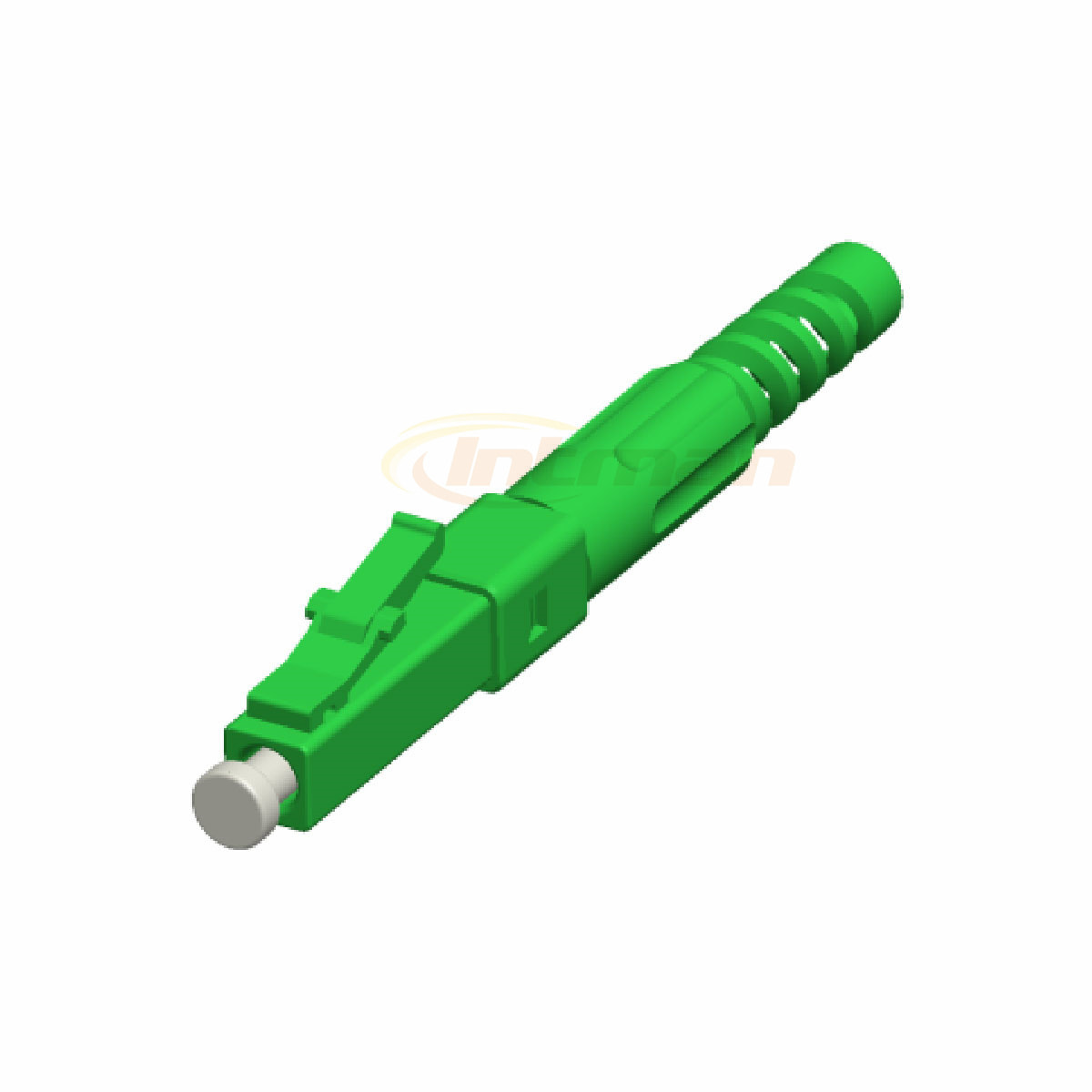

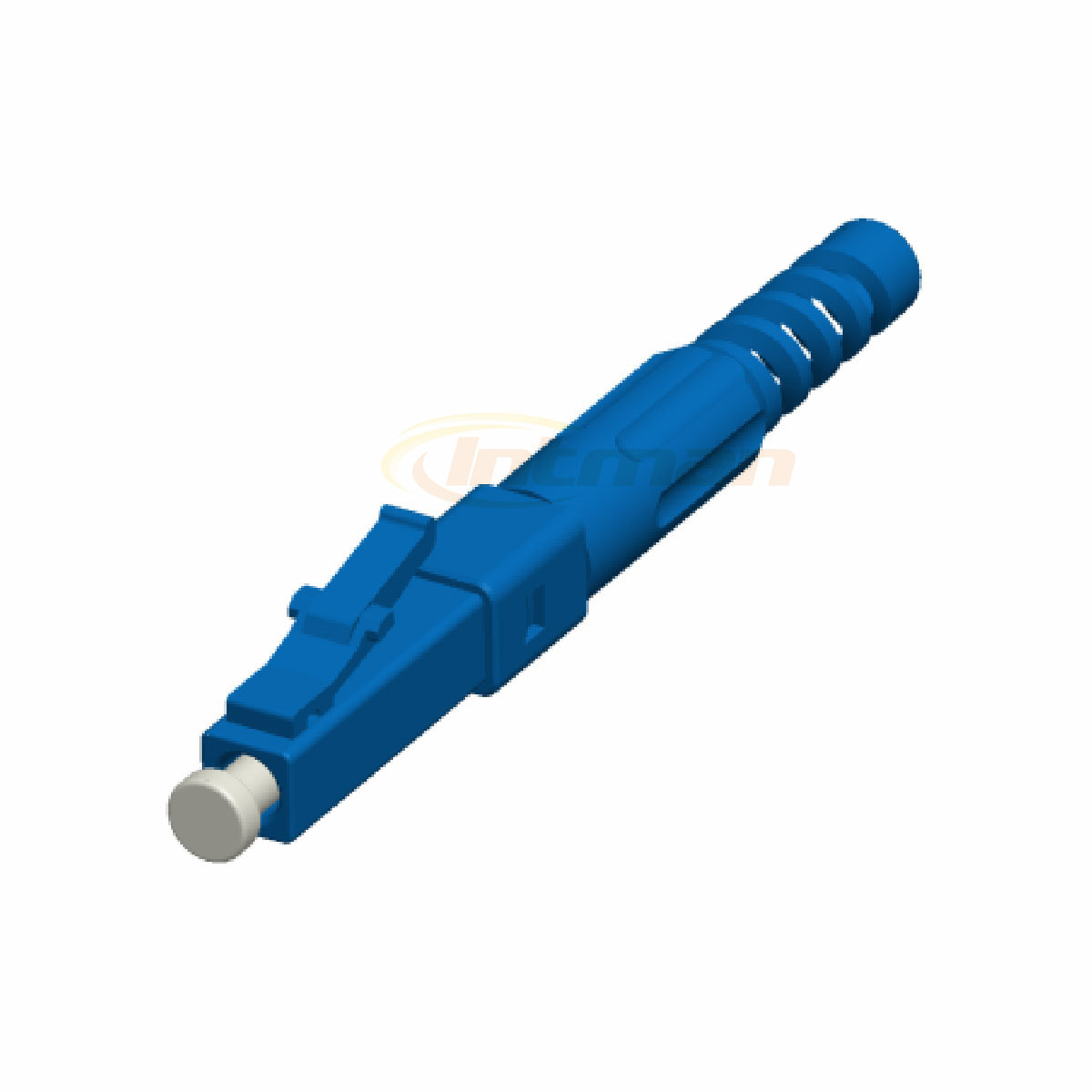

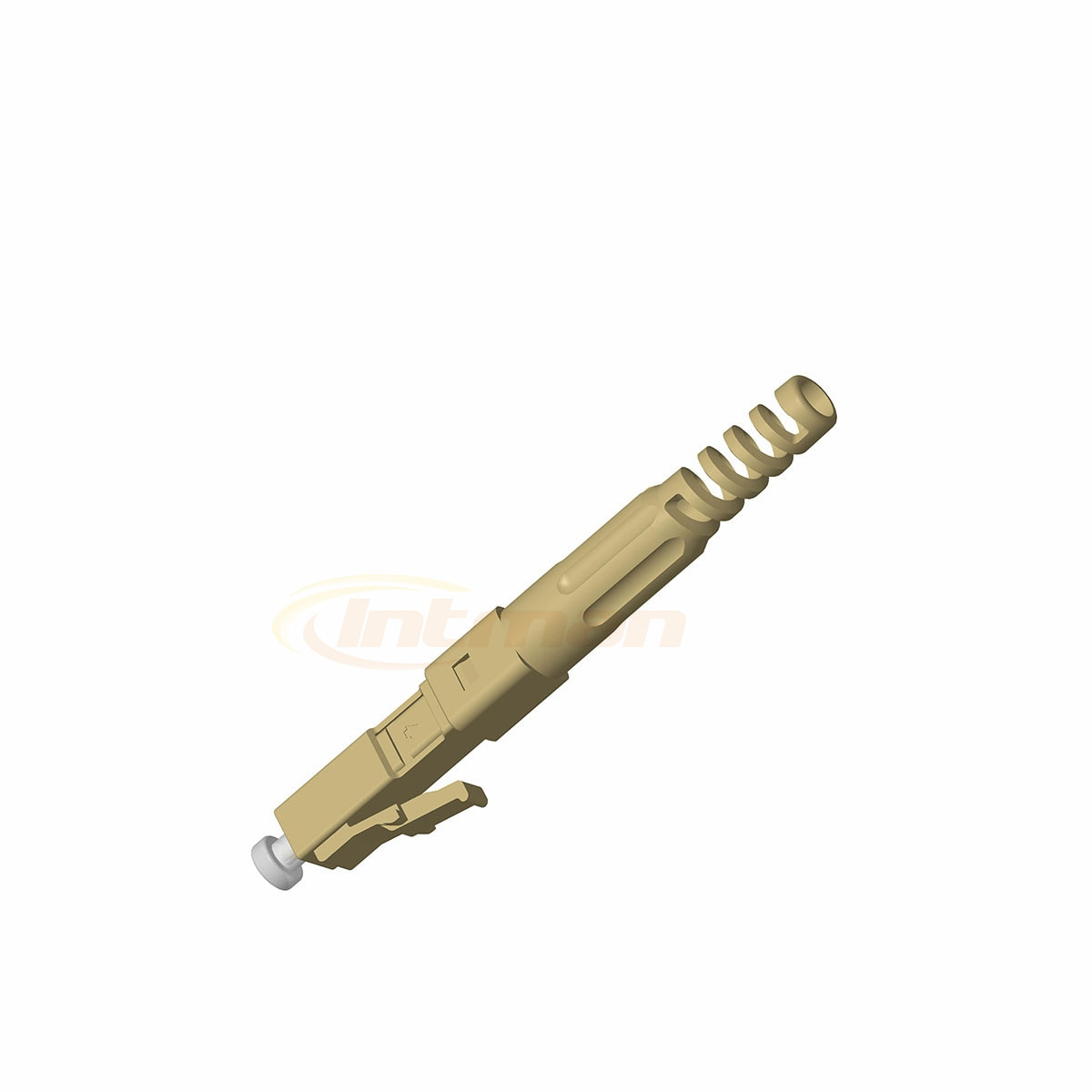

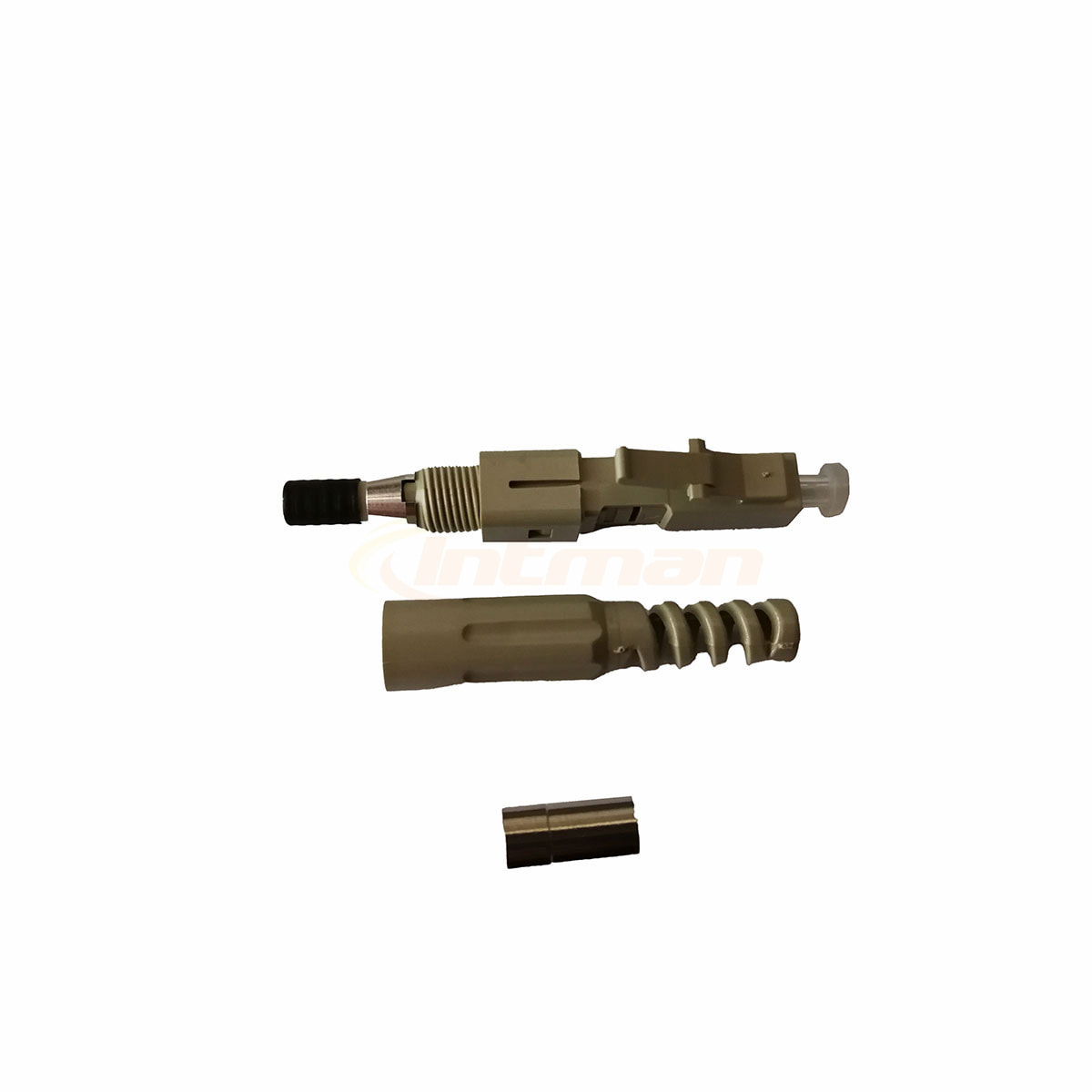

The fast connector also called Field Assembly Connector or Field terminated fiber connector, Quick Assembly Fiber Connector,that is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing, this connector during the installation process does not require any adhesive and curing process. This type LC fast connector including model INT-LCA-920H,INT-LCU-920H,INT-LCP-920H,mainly apply to 0.9mm,2.0mm and 3.0mm round cable.
Singlemode LC/APC Fiber Fast Connector Specification Table
| Connector | LC | Color | Green/Blue/Beige |
| Fiber Mode | Singlemode/Multimode | Polish Type | APC/UPC/PC |
| Connector Length | 53.3mm | Material | Plastic |
| Mechanical Endurance | 500 Time | Assembly Time | ≤4mins |
LC Fiber Optic Fast Connectors Features
- Screw type, total length 53.3mm (the length excluding the soft tail set is 40mm);
- Applied to 2.0mm and 3.0mm indoor cable, 0.9mm invisible cable;
- The diameter of fiber coating:900um
- Tensile strength ≥40N/2min
Singlemode LC Quick Fiber Optic Connectors Applications
- Telecommunications networks
- Premise installations
- Test equipment
- Data centers
- FTTH
- CATV
- Metro Networks
Order Information
fiber quick connector
