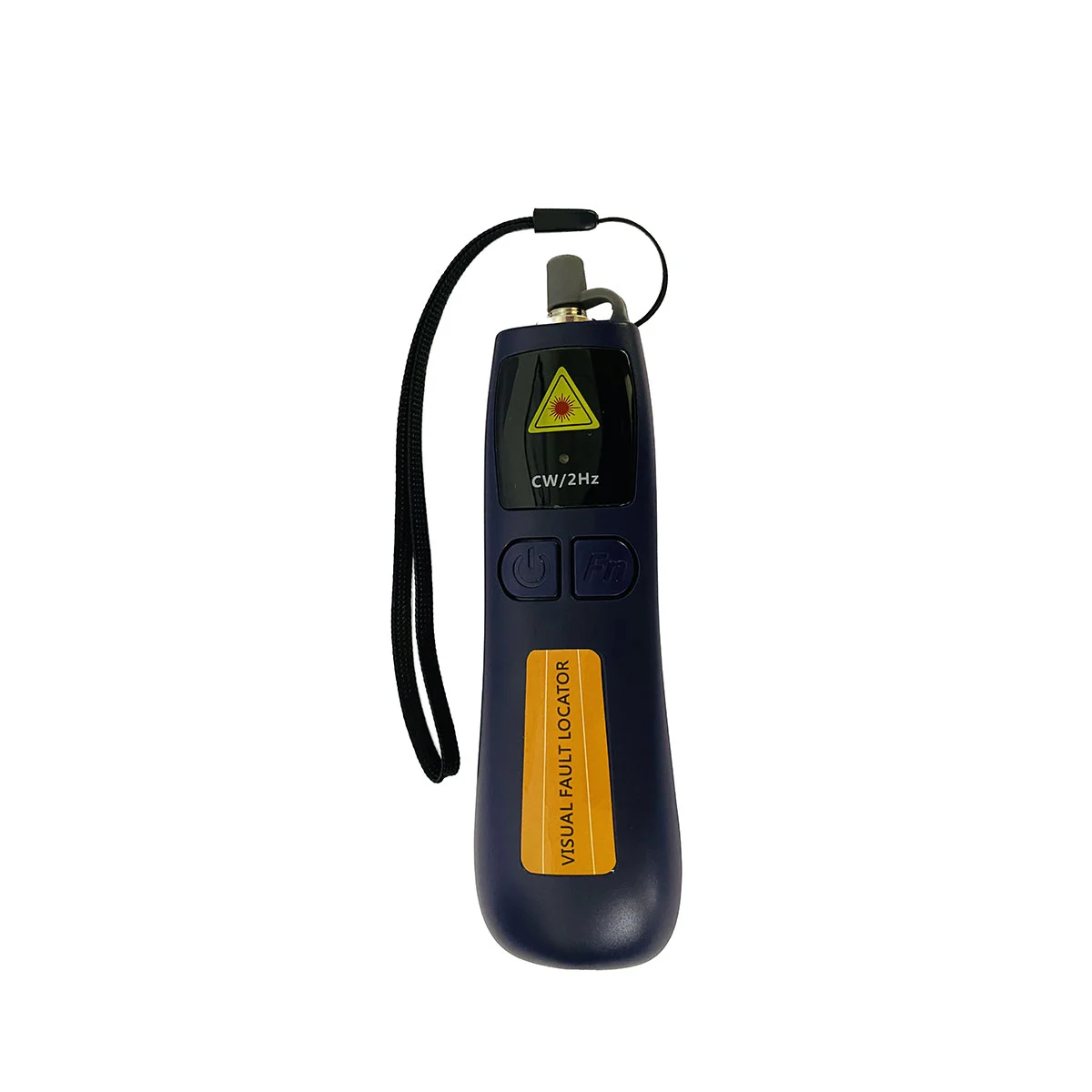

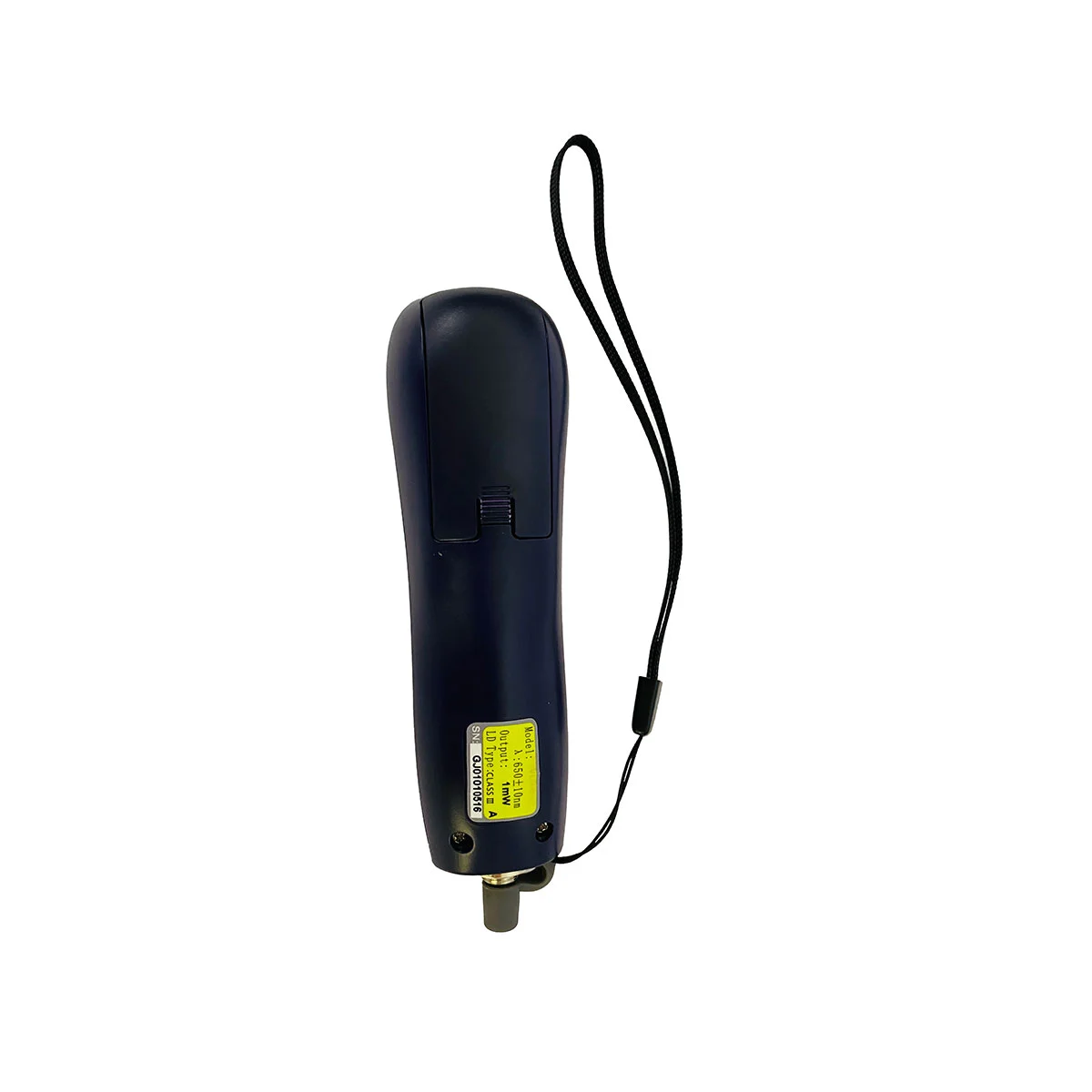

- Name: MINI Pen-type Visual Fault Locator
- Central Wavelength: 650nm±10nm
- Emitter Type:FP-LD
- Output Power :Optional choice for 1mw,10mw on actual needs
- Operating Model: Both CW and Pulse are available
- Pulse Frequency:2~3 Hz
- Dimension (mm): 100×30×18mm
- Weight:60g (with battery)
- Operating Temperature: -10℃ to + 45℃
- Optical Connector: 2.5mm
- Battery Operating Time : 650nm 1mw ≥65hour;650nm 10mw ≥15hour

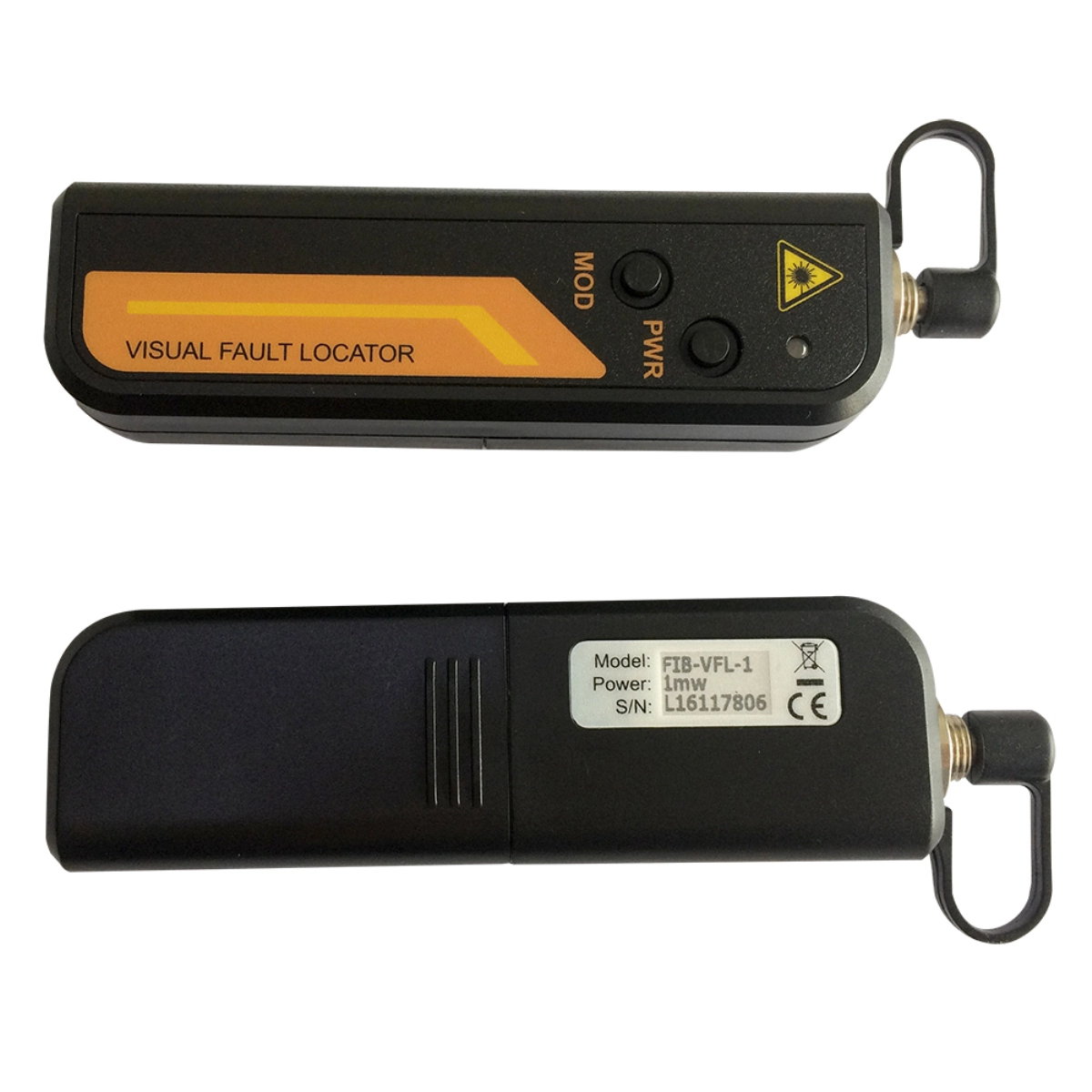

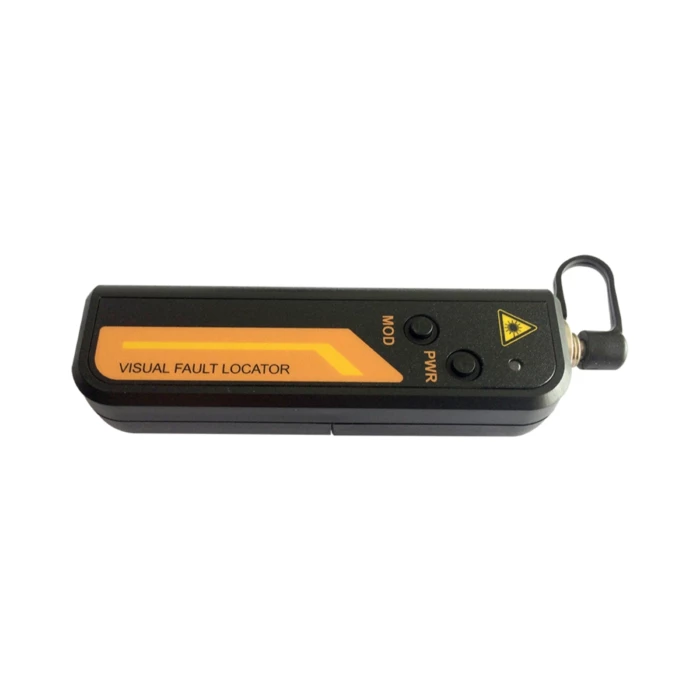

Small Type Mini Visual Fault Locator 1mw 10mw 20mw
Description
1. Pen type Visual Fault Locator VFL Description
VFL (Visual Fault Locator) is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing, and continuity checking in optical networks.

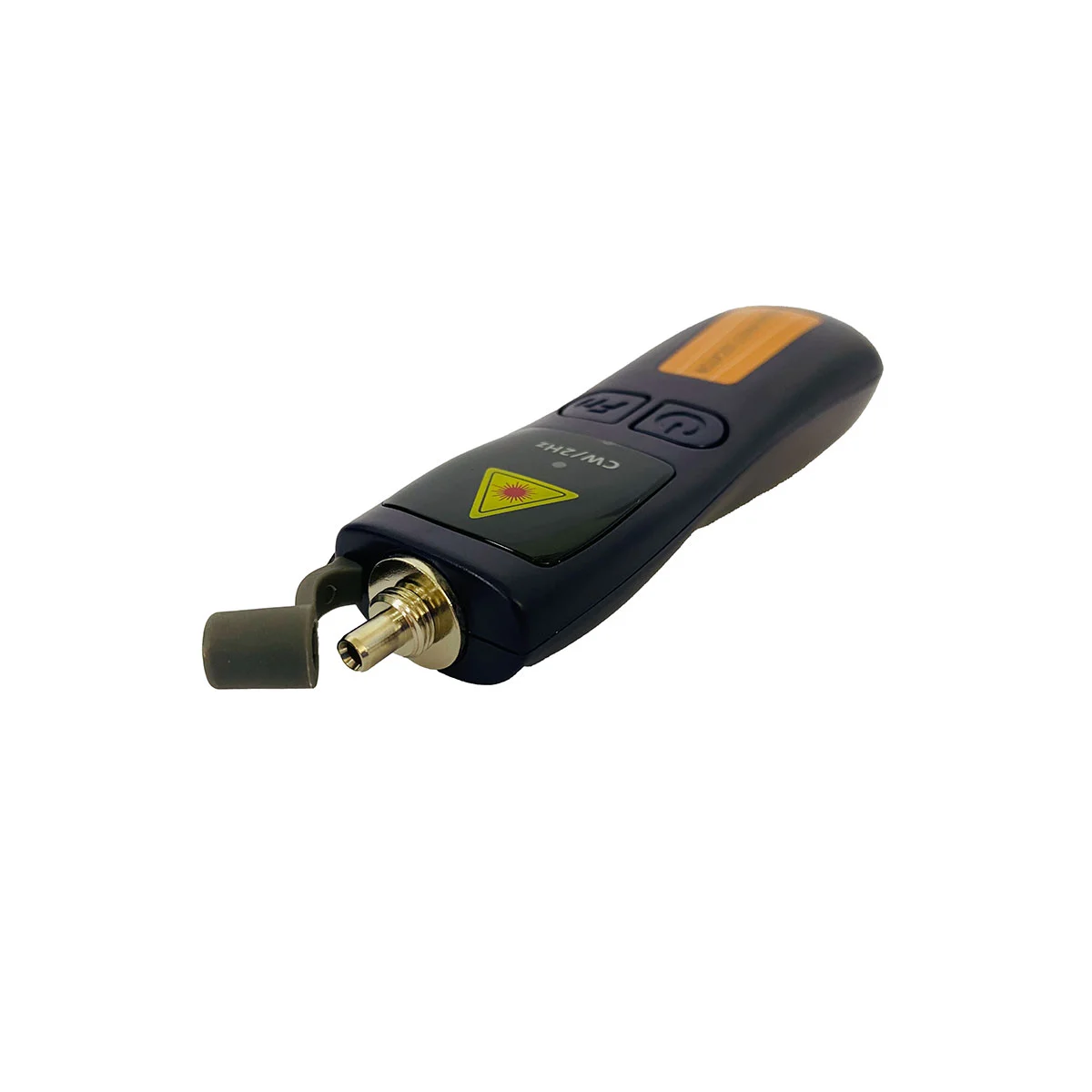

fibre visual fault locator 1mw
Main Features:
- 2.5mm universal connector,for 1.25mm connectors,FC(Male)-LC(Female) converter can be provided on request.
- Operates either in CW or Pulsed
- Constant output power
- Lower Battery warning
- Long Battery life (up to 60 hours)
- Crash-proof and dust-proof design for laser head
- Laser case ground design prevents ESD damage
- Burning testing to ensure the reliability
- Portable and rugged, easy to use
Applications :
- Finding the breakpoint, poor connections, bending, or cracking in fiber optic cables.
- Finding the faults of OTDR dead zone
- End-to-end visual fiber identification
2. Visual Fault Locator 650nm Specification Table
| Name | MINI Pen-type Visual Fault Locator | Central Wavelength | 650nm±10nm |
| Emitter Type | FP-LD | Output Power | 1mw,5mw,10mw ,max can do 20mw |
| Operating Model | Both CW and Pulse are available | Pulse Frequency | 2~3 Hz |
| Power Supply | 2 AA alkaline batteries | Dimension (mm) | 100×30×18mm |
| Optical Connector:2.5mm universal connector | |||
| Operating | -10~+45 (℃） | ||
| Storage Temperature | -40~+70 (℃） | ||
| Battery Operating Time :
650nm@1mw ≥65hour;650nm@10mw ≥15hour; Test with Panasonic LR6 AA ALKALINE battery |
|||
3. Package Detail
| Model | Includes |
| INT3105A | Main Unit,2pcs Alkaline battery, User Manual, and Soft Carrying case |
Pen-Type Visual Fault Locator Standard Packages
