- Name: ST Fiber Connector
- Model: INT-STU-2.0MM
- Color: Black
- Ferrule Hole Size: 125um
- Ferrule: Ceramic Ferrule
- Diameter:2.0mm
- Polish Type: PC/UPC/APC optional
- Mechanical Resistance:100N tensile load
- Good Supply Capacity
- Fast Delivery Time
- 100% Testing Before Shipment
ST Single mode Fiber Connectors in Optical Communication
Description

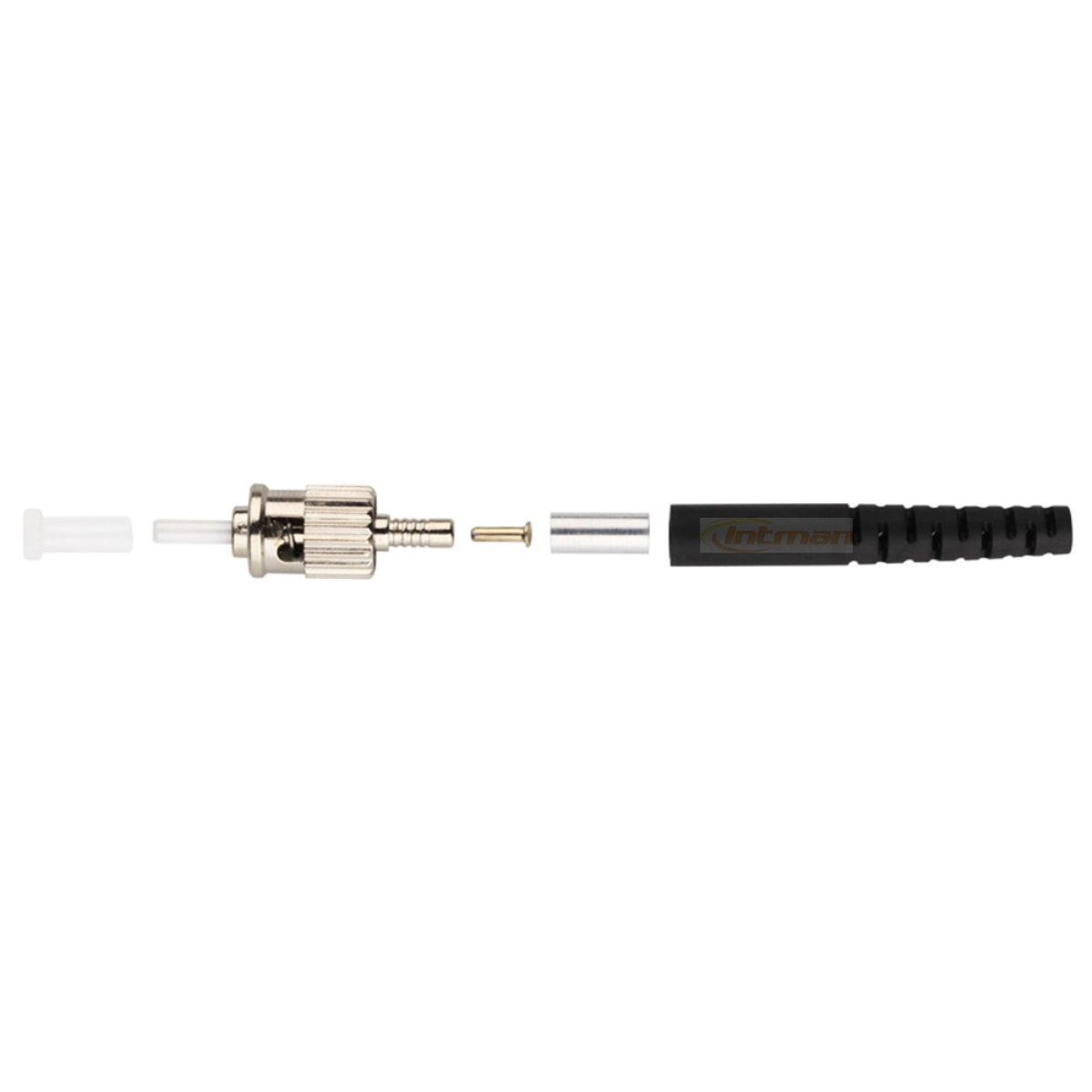

ST Fiber Optic Connector Kits With Ferrule
The ST Connectors and adapters were developed by Lucent Technologies. These connectors are composed of a plastic housing with an RJ45 push-pull type clip. Also considered a Small Form Factor (SFF) Connector by using a 1.25mm OD ferrule, this ST SM Simplex 0.9mm 2.0mm 3.0mm connector is compact, high density, and high performing at a low cost.
0.9mm 2.0mm 3.0mm SC LC ST FC Fiber optic connector
Characteristics:
- Good performance and High success rate.
- Easiness in installation with an average splicing time of 15sec.
- The special tool is simple and convenient to use.
- Reusable and repeat operation times are up to 100.
- Integrated Protection of the casing to prevent the connector from impact.
- On-line tension is up to 20N to protect the connector from dragging.
- The maximum tension is up to 100N. It is the safety connector.
- Storage/Operation temperature: -40℃ to +70℃
ST fiber optic connector types
Singlemode ST/UPC Fiber Fast Connector Specification Table
| Singlemode(UPC) | Singlemode(APC) | Multimode | |
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.25dB |
| Return Loss | ≥55dB | ≥65dB | ≥35dB |
| Durability | ≤0.1dB typical change,1000times mating | ||
| Operating Temperature | -45 to +85 degree | ||
|
|
125.0+1/-0um,concertricity≤1.0um | 125.0+1/-0um,concertricity≤0.5um | 125.0um,concertricity≤3.0um |
| 125.3+1/-0um,concertricity≤1.0um | 125.3+1/-0um,concertricity≤0.5um | 127.0um,concertricity≤3.0um | |
| 125.5+1/-0um,concertricity≤1.0um | 125.5+1/-0um,concertricity≤0.5um | 128.0um,concertricity≤3.0um | |
| 126.0+1/-0um,concertricity≤1.0um | 126.0+1/-0um,concertricity≤0.5um | ||
ST Singlemode simplex Optic Connectors Features
- Low insertion loss and back reflection loss
- Ferrule end surface pre-domed
- Precision anti-rotation key and corrosion-resistant body
- UL-rated plastic housing
- Telcordia style boots
- Free-floating ceramic ferrule
ST Singlemode simplex Optic Connectors Applications
- Telecommunications networks
- LAN (Local Area Network)
- Test equipment
- Data centers
- FTTX/FTTH(Fiber To The Home)
- CATV&CCTV
- High-Speed transmission systems
- Fiber Optic sensing
Order Information
