- Name: STUPC Attenuator
- Color: Silver Grey
- Connector: STUPC Male/Female
- Attenuation Range: 1-25dB
- Transfer Mode: Singlemode
- Housing Material: Plastic
- Sleeve: Ceramic Zirconia
- Good Supply Capacity
- Fast Delivery Time
- 100% Testing Before Shipment

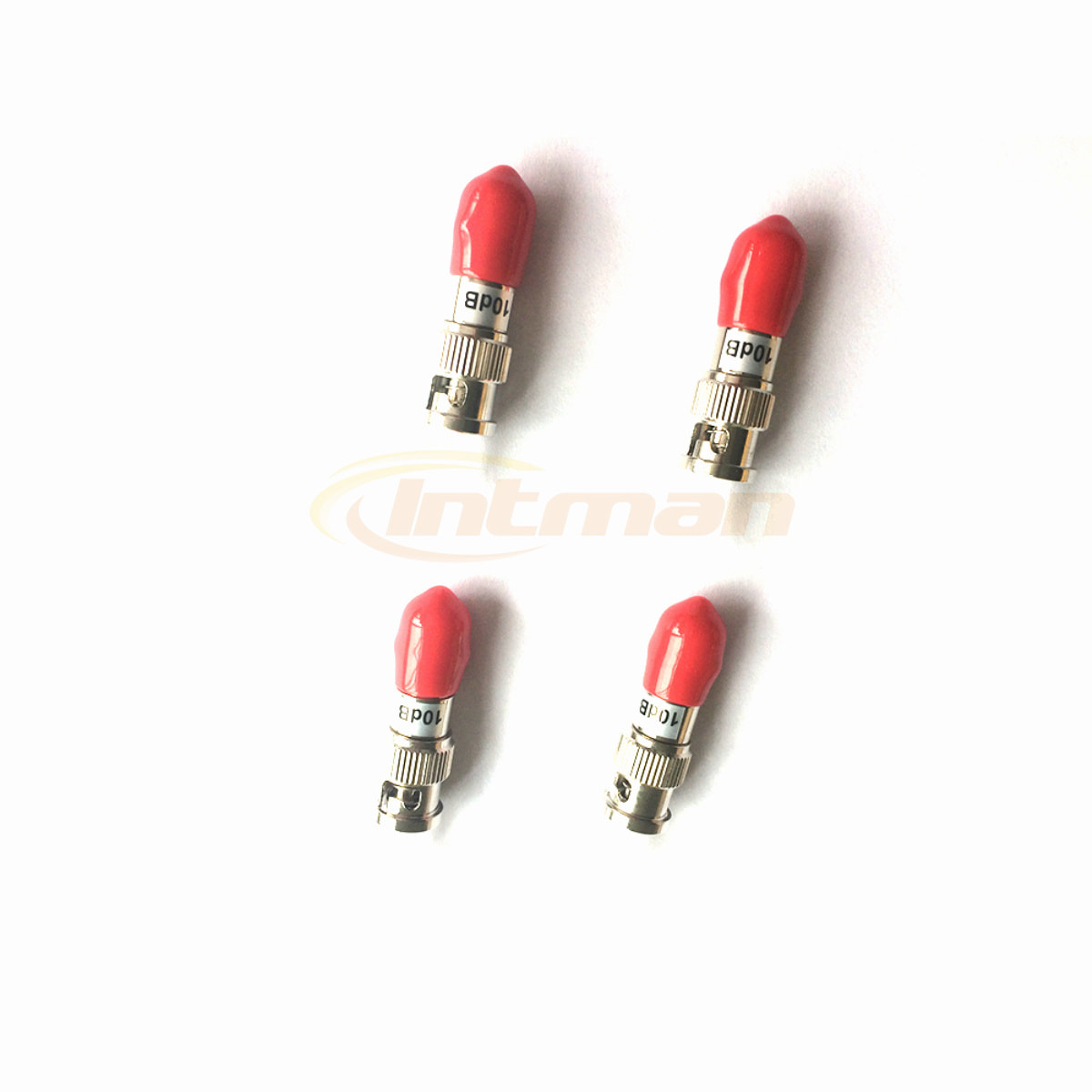

ST Optical Attenuators
Description
Product description and application

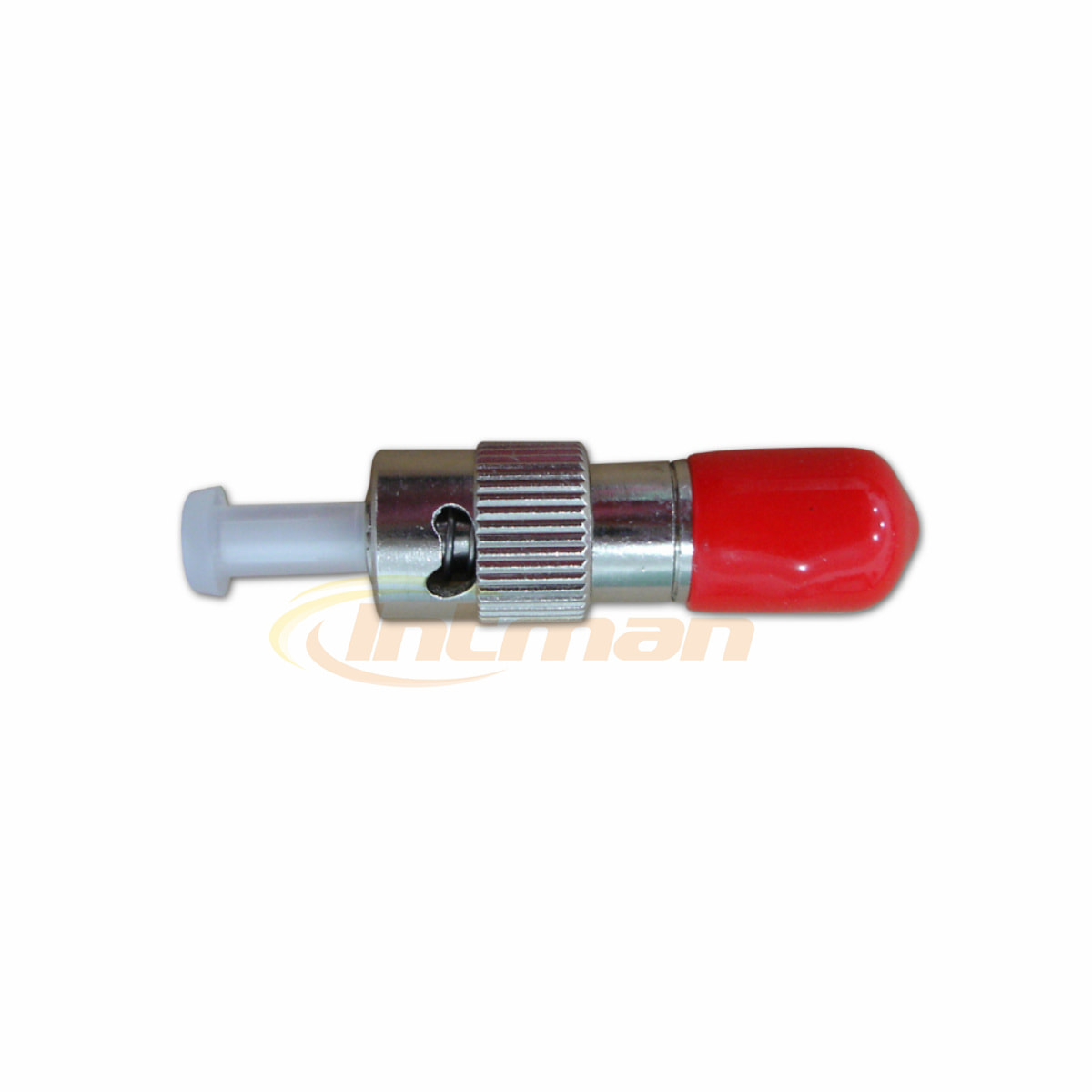

Fiber Optic fixed type connector (male to Female) attenuator can be selected in need of the project, STUPC Male to Female fixed 5dB attenuator for Singlemode applications to prevent over saturating an optical receiver when the optical power is too high. Using an attenuator ensures low bit error rates preventing damage to receiving fiber optic equipment.
- Attenuation Material-ion Doped Fiber
- Precision Polishing for Reduced Back reflection
- 1260-1620nm wavelength Singlemode attenuators
- Standard Fixed Attenuation, apply for CWDM, DWDM, Test Equipment, CATV System, etc.
ST UPC Fixed Fiber Optical Attenuator Specification Table
| Connector | ST/UPC | Connector Gender | Fixed Male to Female |
| Transfer Mode | Singlemode | Ferrule Type | Zirconia Ceramic |
| Attenuation Range | 1-25dB | Attenuation Accuracy | 0.5dB |
| Operating Wavelength | 1260-1620nm (SM) | Polarization Dependent Loss | ≤0.2dB |
| Return Loss | ≥50dB | Durability | 500 times |
Features
- Low back reflection and Low PDL
- High precision attenuation value
- Precise control of attenuation range
- Simple manipulation
- Connector type: ST
Fixed Fiber Optical Attenuator Types
Male to Female attenuator types
