Suppliers of OM3 50/125um Multi strand Fiber Optic Cable Manufacturer

Description

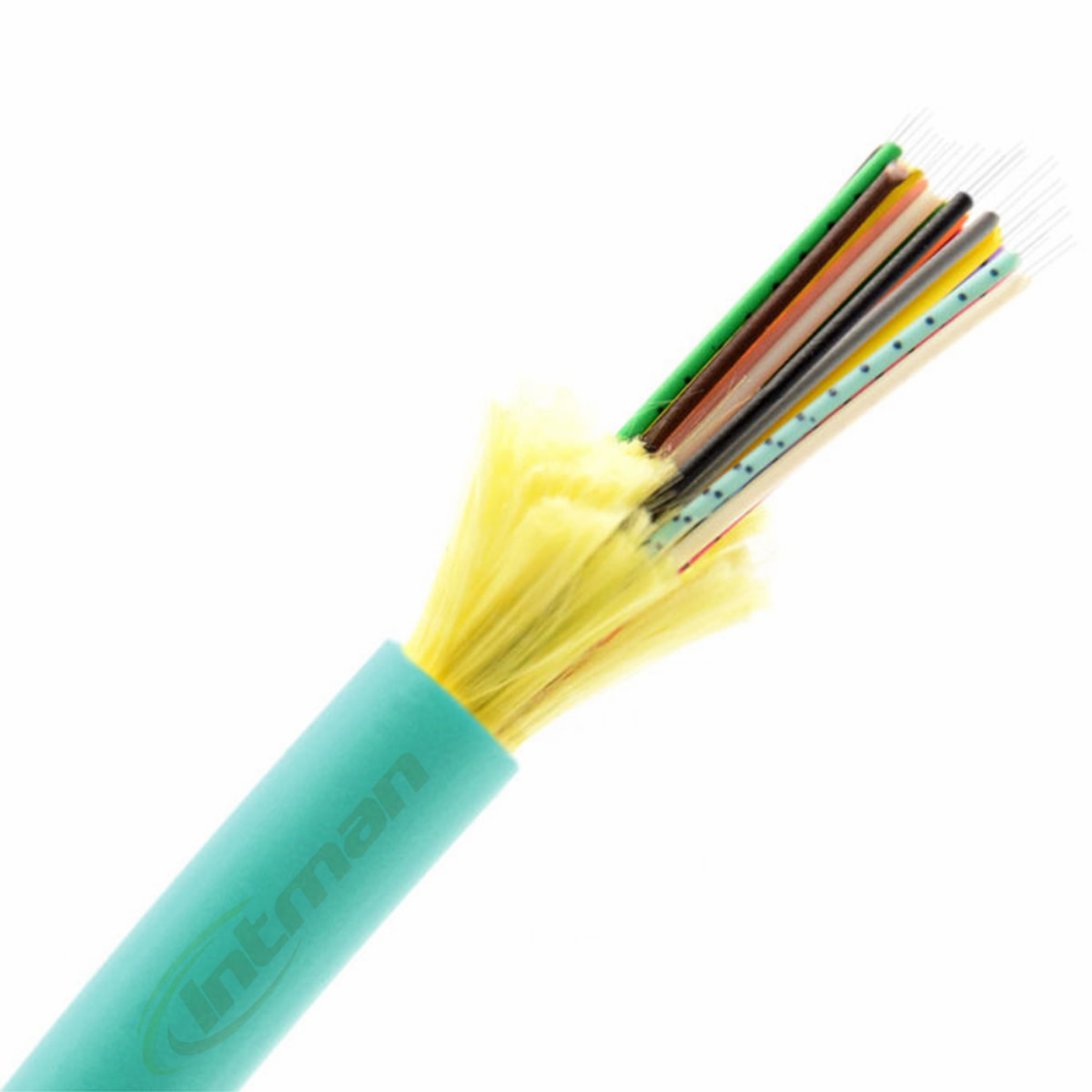

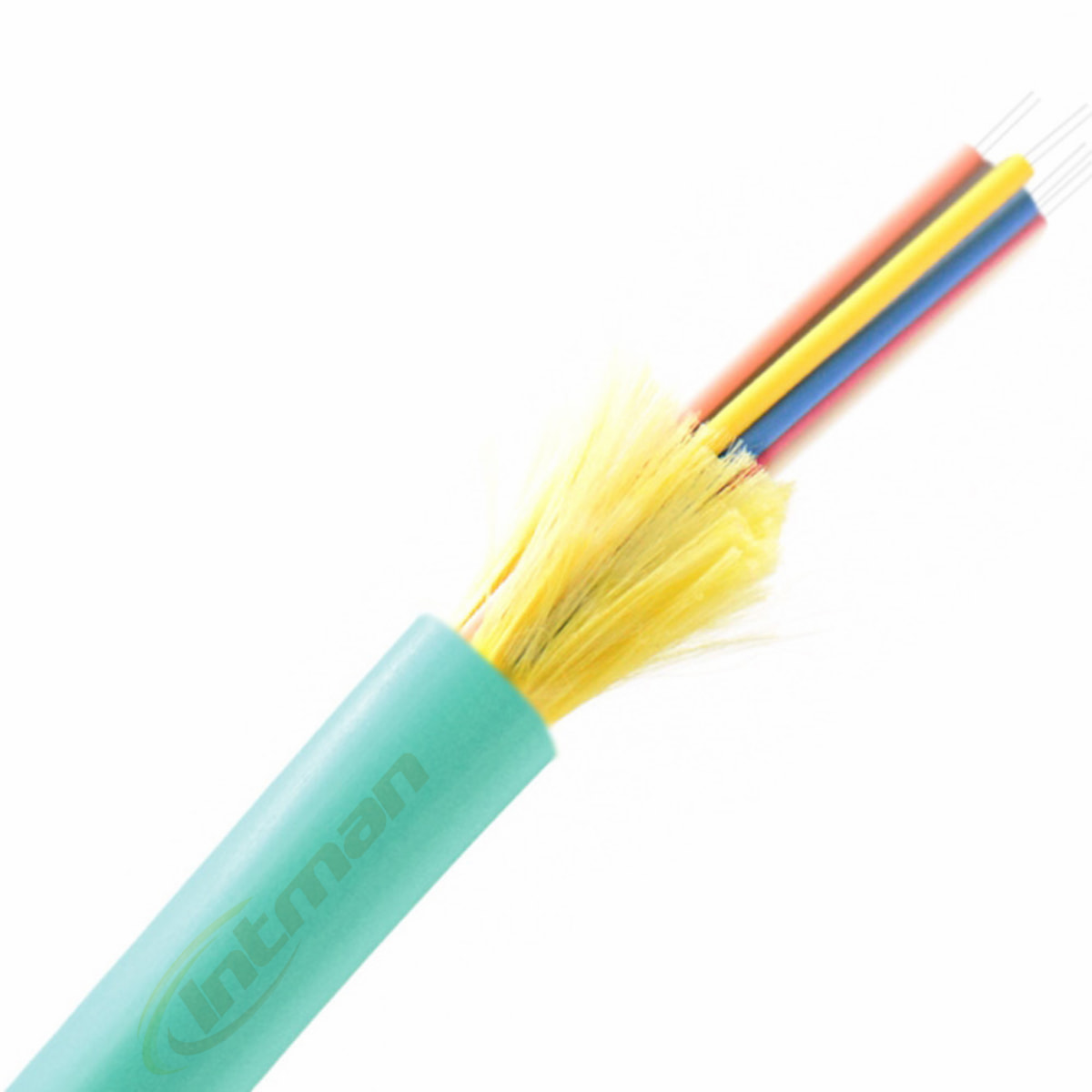

1. Pre-terminated Multimode OM3 50/125um Breakout Fiber Optic Cable

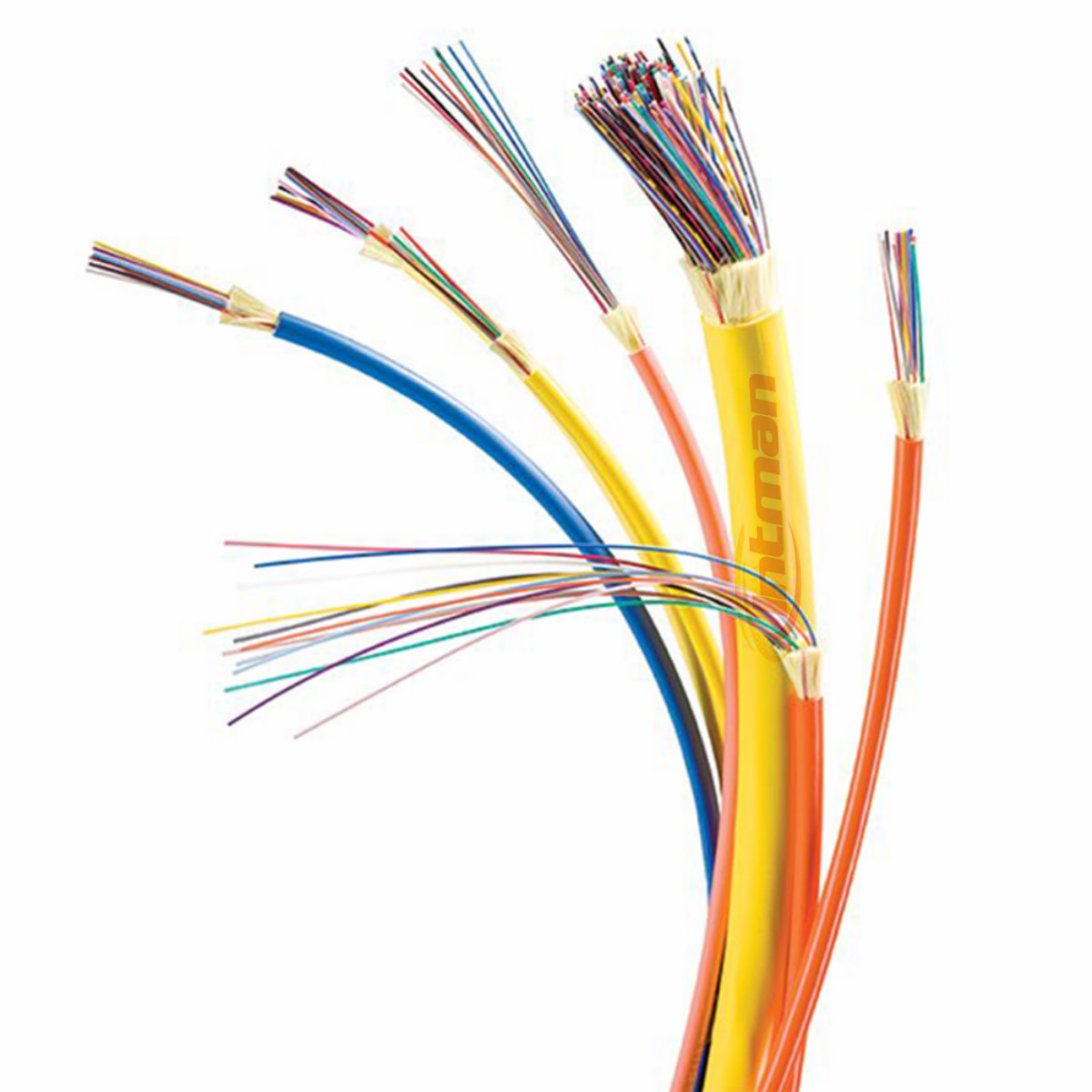

Pre-terminated Multimode OM3 breakout Fiber Optic Cable exemplifies a tight buffered design that allows this cable type to be installed as a building backbone and installed for inter-building campus applications, eliminating the need for expensive transitions between cable types. In addition, distribution fiber optic cable is available in 4 main fiber types: Single Mode 9/125, Multimode OM1 62.5/125, Multimode OM3 50/125, and Multimode OM4 50/125. Plenum and Riser-rated materials are available as well as indoor or outdoor options. And most often, distribution fiber cables have strand counts ranging from 2 to 72fibers.

Indoor distribution breakout fiber optic cable Applications

• Rated for indoor/outdoor applications
• Trunk cable between floors
• Data centers

Indoor Distribution breakout OM3 Fiber Optic Cable’s Features

1. 900um Tight Buffers
2. Water blocking aramid yarn strength members
3. OFNR(Riser) Rated Construction
4. Exclusive use of Corning optical fibers
5. Jacket print ensures product identification and fiber compatibility
6. Buffers strip consistently between 3.5-5 lbs-f, helpful for onsite termination
7. A durable jacket offers added protection during installation and in rugged use applications
8. Mixed Fiber designs are available

2. Indoor Distribution Breakout OM3 Fiber Cable’s Specification Table

3. Distribution Breakout indoor Fiber Optic Cable’s Structure
