- Name: Toslink Plastic Optical Fiber
- Connector: TOCP155
- Connector type: Black
- Cable Diameter: 2.2mm
- Fiber Type: POF cables
- Fiber Count: 1Core
- Cable Jacket: LSZH, PE
- Good Supply Capacity
- Fast Delivery Time
- 100% Testing Before Shipment

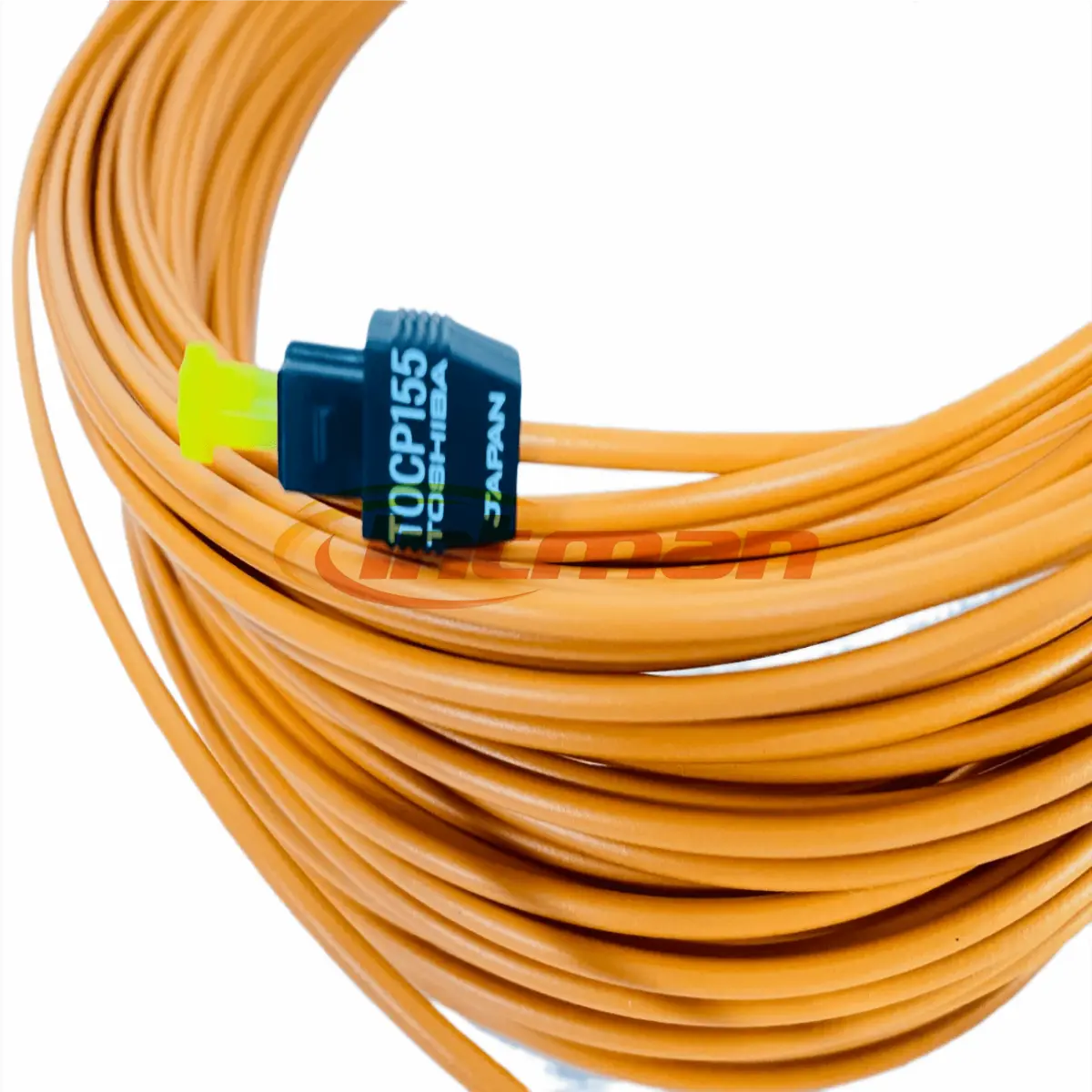

TOCP155 Toshiba Fiber Optic Connector
Description
Toshiba POF products include connectors, transmitter, receiver for 1.0mm POF cable and HCS 200/230 cable, F05 F07 connectors as well as cable. Toshiba TOCP155 with 2 connectors, this optical fiber TOCP155 is used with NUM CNC series 1000 or other CNC equipment. This Toshiba TOCP100 is ready to replace your defective or broken TOCP installed on your CNC machine.

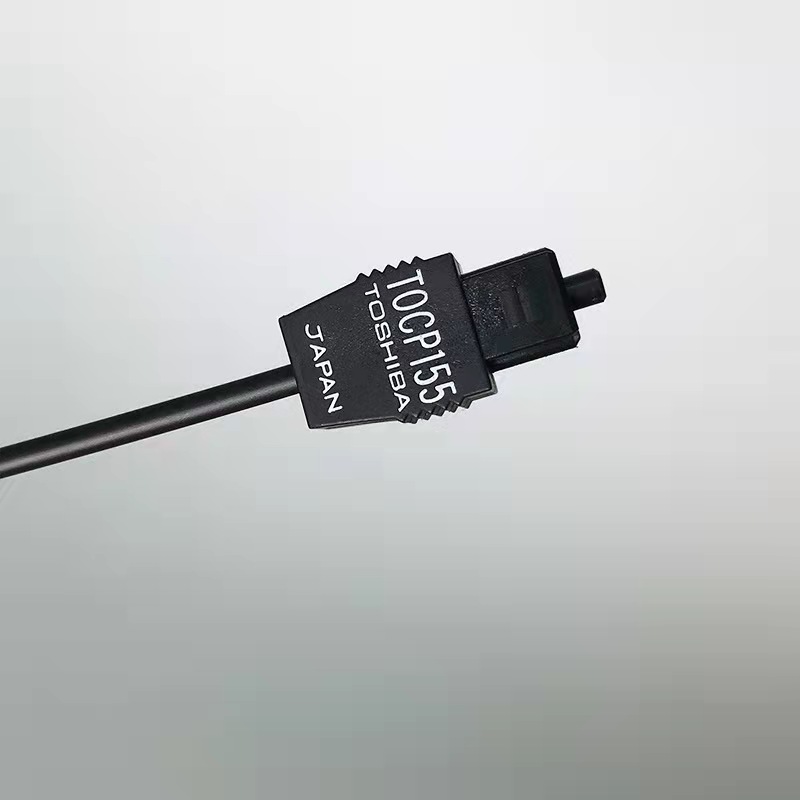

tocp155 connector
Toshiba TOCP 155 Product Features:
–Anti-electromagnetic interference and electromagnetic radiation
–Good flexibility, anti-vibration, ensure that in any case zero bit error rate of transmission
–High temperature and low temperature(-40 to 70)
–Easy to install, needless maintenance
–Plastic optical fiber is not conductive and can share the power transmission pipeline
–Long-range power supply
–Accord with the Agilent universal
–RoHS Compliance

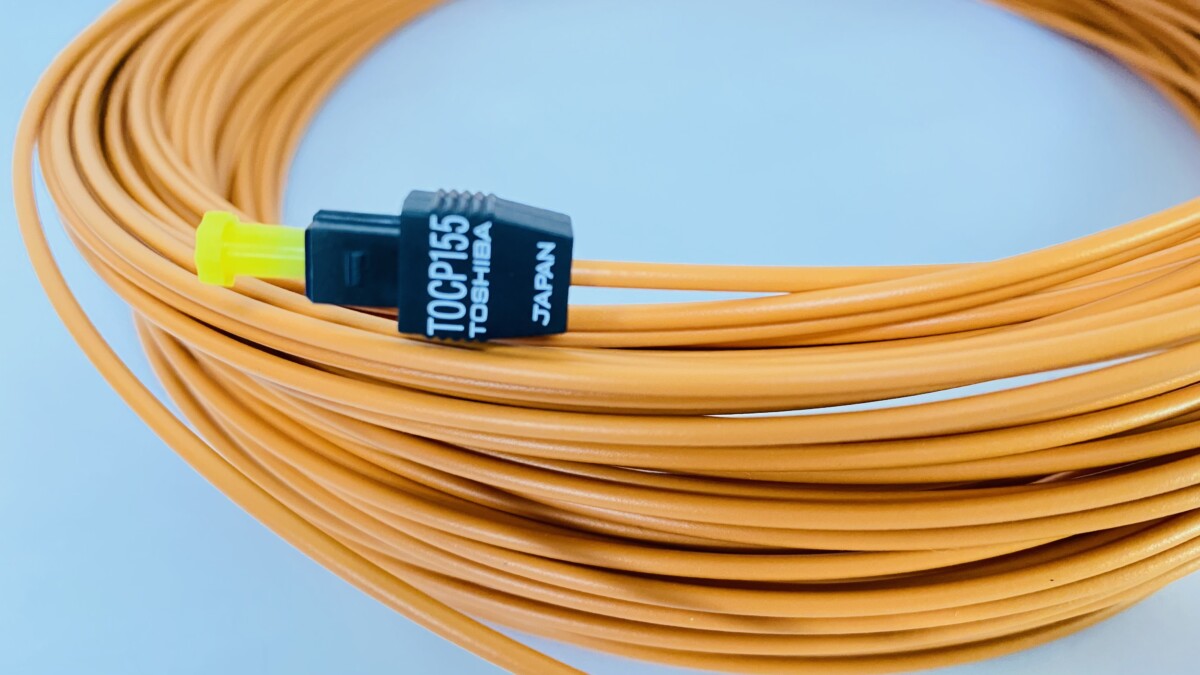

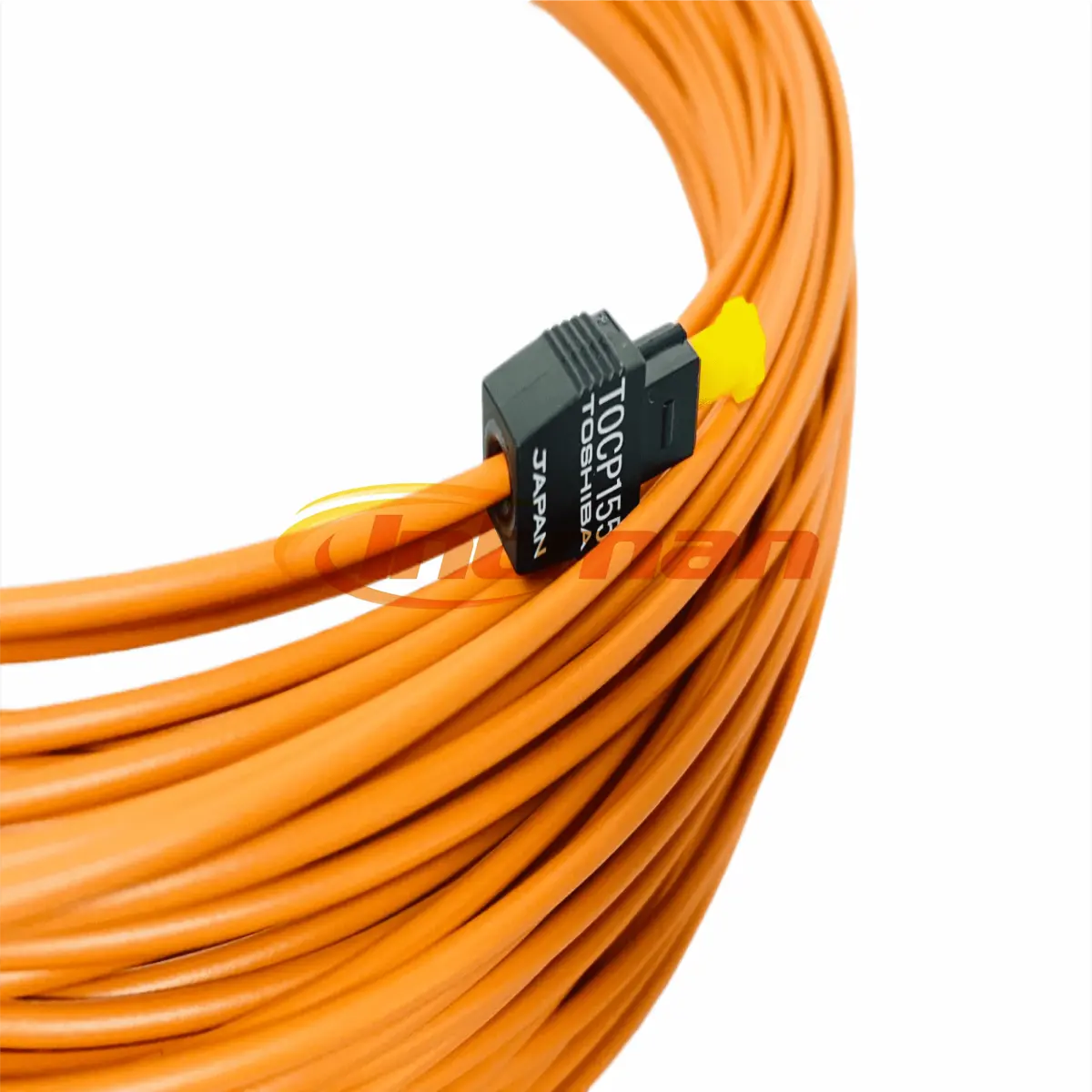

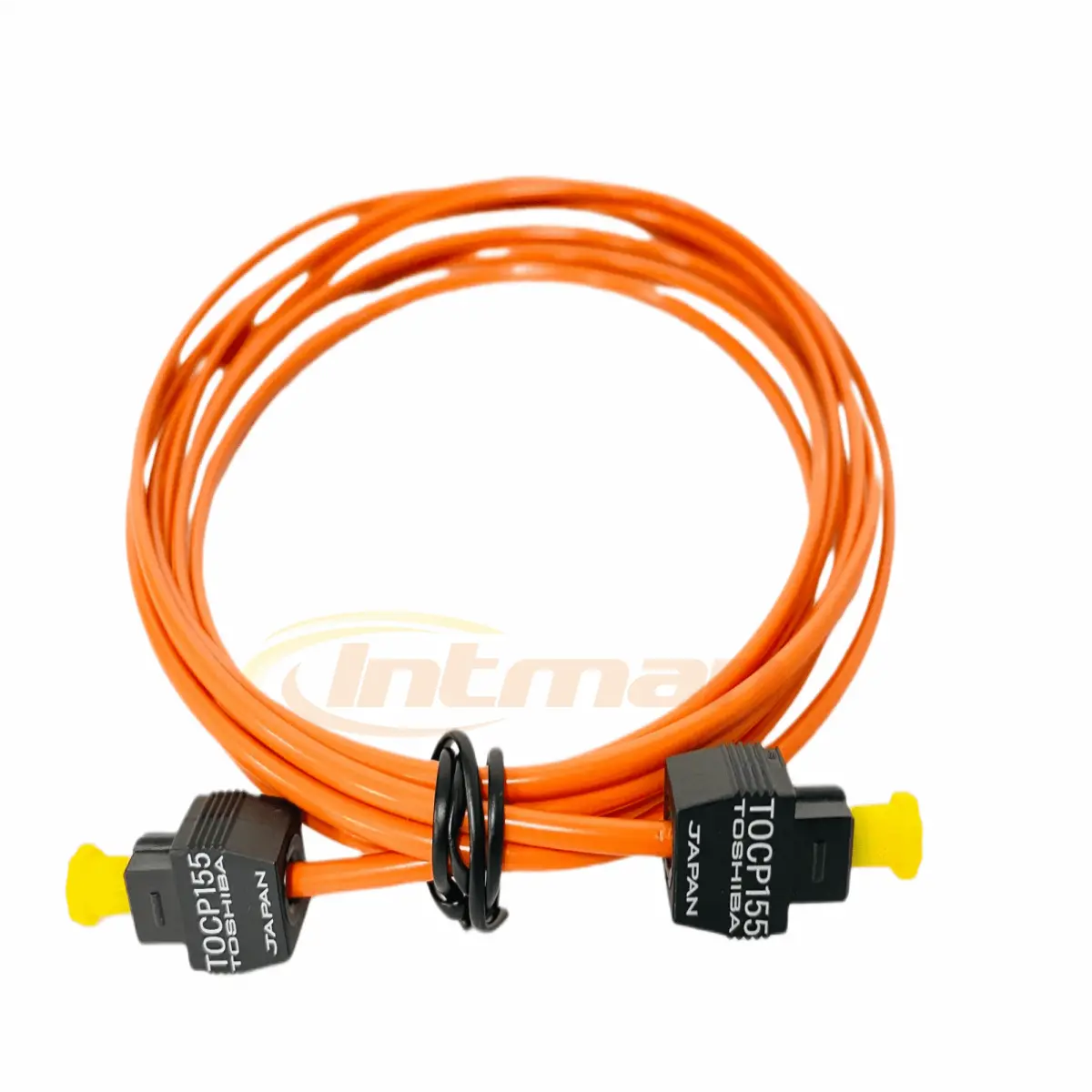

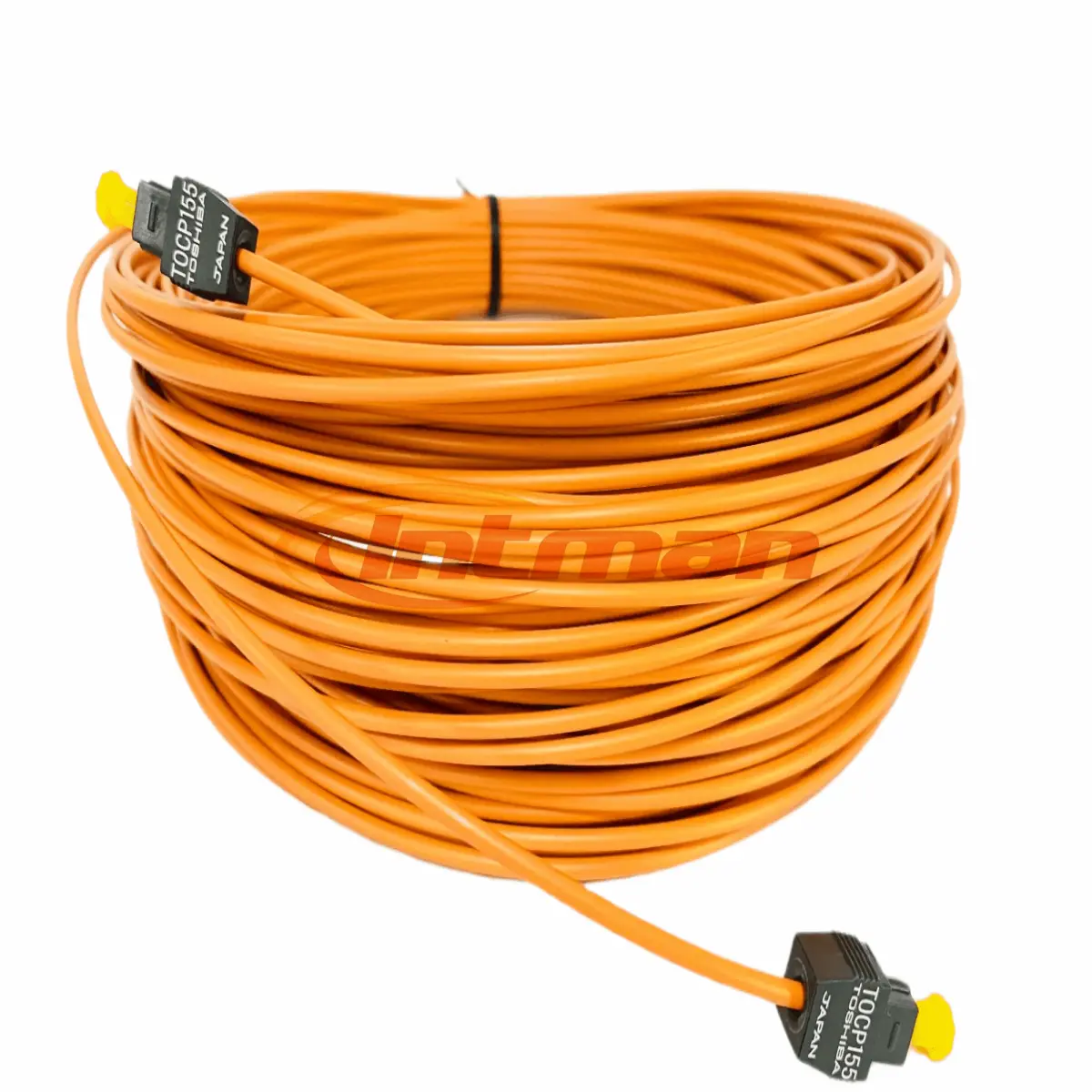

tocp155 cable
Toshiba TOCP 155 Application:
–Data transmission and industrial automation and bus systems
–Industrial robots, intelligent systems, and servo system
–Communication exchange systems
–Digital multimedia systems
–Medical sensing system
–Power system, etc.
Specification Table
| Connector | TOCP155 | Core Diameter | 1000mm |
| Wavelength Range | 525-650um | Fiber Core Material | Plastic/PMMA |
| Cable Diameter | 2.2mm | Jacket Material | Black PE/PVC |
| Number of Conductores | 1 | Length | 0.5m/1m/2m/5m/Customized |
| Attenuation | ＜180dB/km | Cable Type | Plastic optical fiber cable |
| Operating Temperature | -55~85℃ | Storage Temperature | -55~85℃ |
Toshiba TOCP Connector
| Part No. | Wavelength | Transmission Loss | Transmission Length | Type | Interface |
| TOCP100 | 650nm | ＜0.22dB/m | 50m | Simplex | 1.0/2.2POF |
| TOCP155 | 650nm | ＜0.22dB/m | 50m | Simplex | 1.0/2.2POF |
| TOCP200 | 650nm | ＜0.22dB/m | 50m | Duplex | 1.0/2.2POF |
| TOCP200X | 800nm | ＜7dB/km | 1km | Duplex | 200/230HCS |
| TOCP255 | 650nm | ＜0.22dB/m | 50m | Duplex | 1.0/2.2POF |
| TOCP255P | 650nm | ＜0.22dB/m | 50m | Duplex | 1.0/2.2POF |
Specification
| ITEM | PARAMETER |
| Connector Type | TOCP155 |
| Insertion Loss | ≤0.22dB |
| Short Term Tensile Force(single channel) | 50N |
| Short Term Tensile Force(dual channel) | 100N |
| Short-Term Bend Radius | 25mm |
| Long-Term Bend Radius | 35mm |
| Long Term Tensile Load | 1N |
| Flexing | 1000 cycles |
| Fiber Length | 1m,2m…..any length optional |
