- Name: ODVA LC Patch cable
- Connector: ODVA LC to ODVA LC
- Connector type: LC
- Cable Diameter: 7.0mm
- Fiber Type: G652D ,G657A1,G657A2
- Fiber Count: 2Core
- Cable Jacket: LSZH, PVC
- Good Supply Capacity
- Fast Delivery Time
- 100% Testing Before Shipment

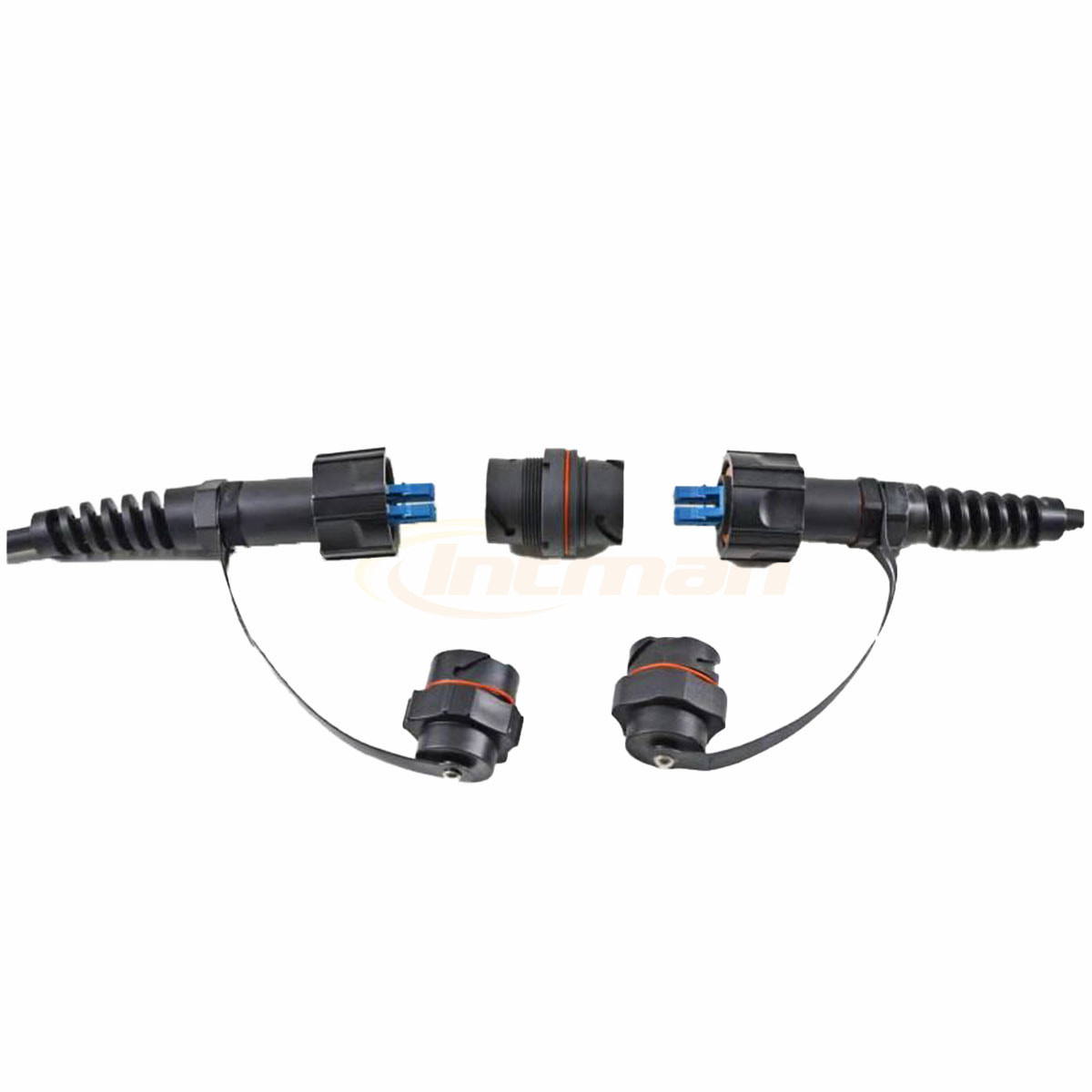

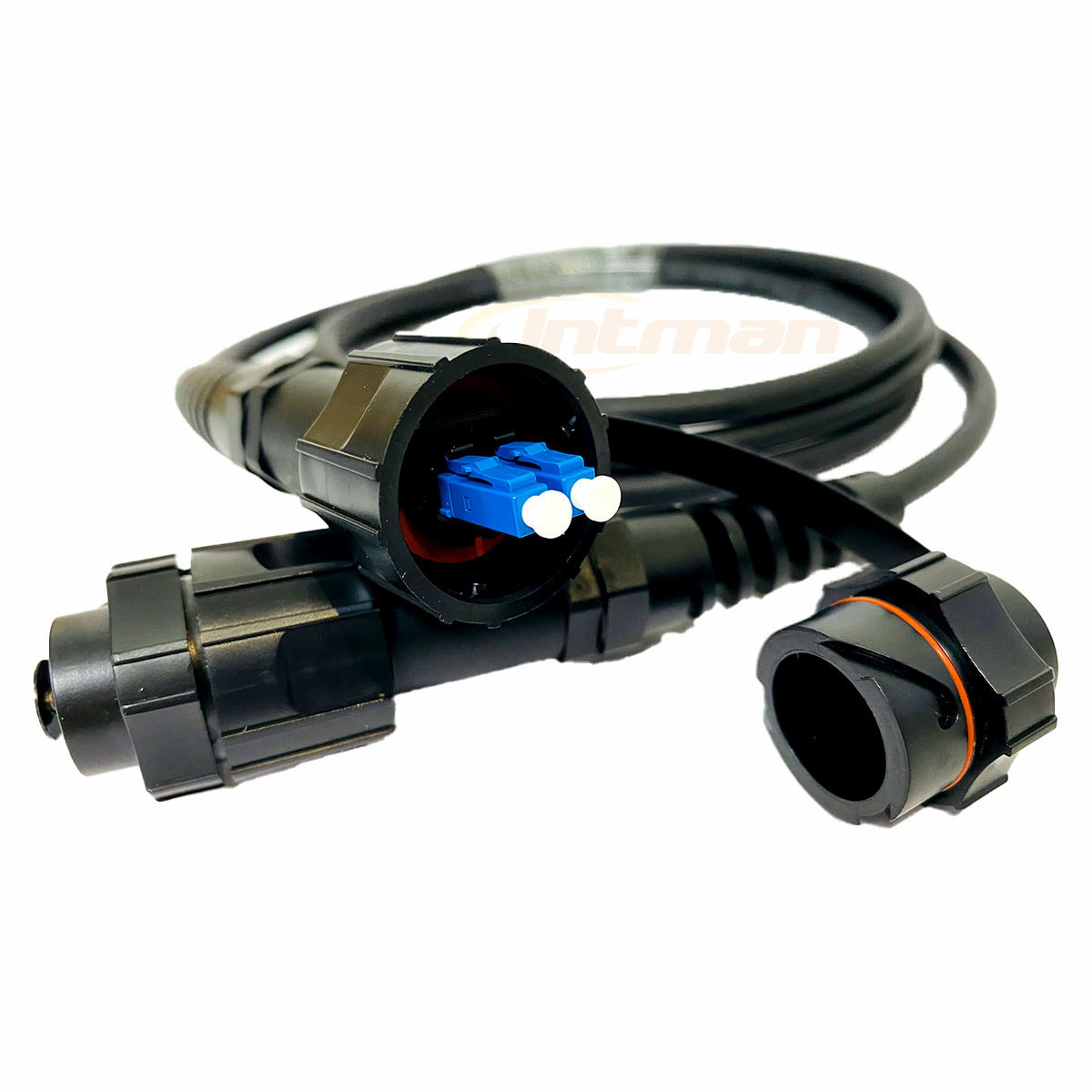

Waterproof IP67 ODVA LC Connector Patch Cord
Description

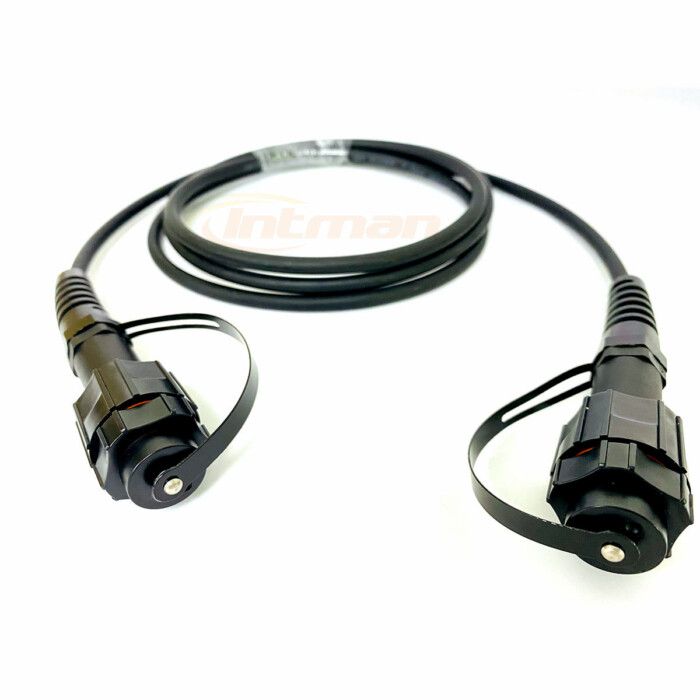

ODVA-LC IP67 Waterproof Patch cord
ODVA-compliant connectors specifically for harsh environment applications, such as WiMax, Long Term Evolution (LTE), and Remote Radio Heads using Fiber To The Antenna (FTTA) connectivity, which requires rugged connectors and cable assemblies suitable for outdoor use. Designated the LC Series, CONEC offers the broadest ODVA-compliant fiber-optic connector portfolio in the industry, providing both full-metal and plastic versions of the IP67-rated interconnects. CONEC’s extensive ODVA-compliant product portfolio gives customers design flexibility and ensures that FTTA systems meet telecommunication industry standards as well as harsh environment requirements. In addition, CONEC can provide cable and plug kit assembly services to deliver a complete FTTA system interconnect
LC ODVA Fiber Optic Patch Cable Specification Table
| Connector | ODVA LC -ODVA LC | Cable Diameter | 7.0mm |
| Fiber Mode | OS2 9/125um | Wavelength | 1310/1550nm |
| Jacket Color | Black | Jacket Material | LSZH |
| Fiber Count | 2Core | Waterproof | IP67 |
| Insertion Loss | ≤0.3dB | Fiber Grade | G657A1 |
| Tight-buffered fiber Color | Blue/Orange | Tension (long term) | 150N |
| Operating Temperature | -20~70℃ | Storage Temperature | -20~70℃ |

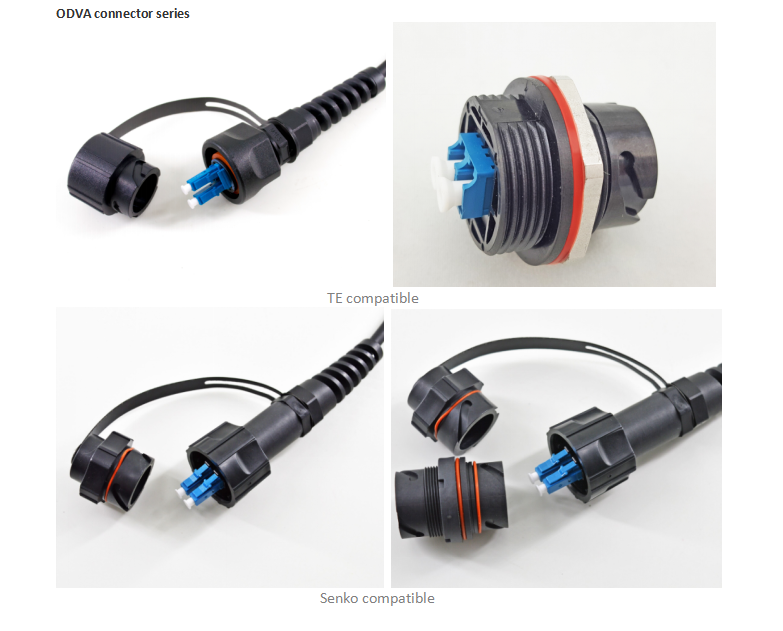

LC ODVA connector compatible with TE SENKO
ODVA Patch cord cable structure
Features
- Good mechanical and environmental characteristics
- Flame retardant characteristics meet the requirements of relevant standards
- Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission
- Meet various requirements of the market and clients
Applications
- Multi-purpose outdoor
- For connection between distribution box and RRH
- Deployment in Remote Radio Head cell tower applications
- Remote interface applications such as FTTX or Towers
- Mobile routers and internet hardware
- Harsh environments where chemical, corrosive gases and liquids are common
- Used for based station, RRU,RRH,LTE,BBU
Outdoor ODVA Fiber Optic Patch Cable Availability
- Far transmission communication&FTTA
- Intelligent substation
- Tunnel Video Surveillance system
ODVA/LC Connector Specification
| ITEM | PARAMETER |
| Connector Type | ODVA LC-ODVA LC |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB |
| IP Level | IP67 |
| Operating wavelength | 1310nm,1550nm |
| Test wavelength | 1310nm,1550nm |
| Repeatability | ≤0.1 |
| Interchangeability | ≤0.2dB |
| Fiber Length | 1m,2m…..any length optional |
