- Name: MINI SC
- Connector: SC Reinforced
- Connector type: SC
- Cable Diameter: 5.0mm
- Fiber Type: G652D ,G657A1,G657A2
- Fiber Count: 1Core
- Cable Jacket: LSZH, PVC
- Good Supply Capacity
- Fast Delivery Time
- 100% Testing Before Shipment

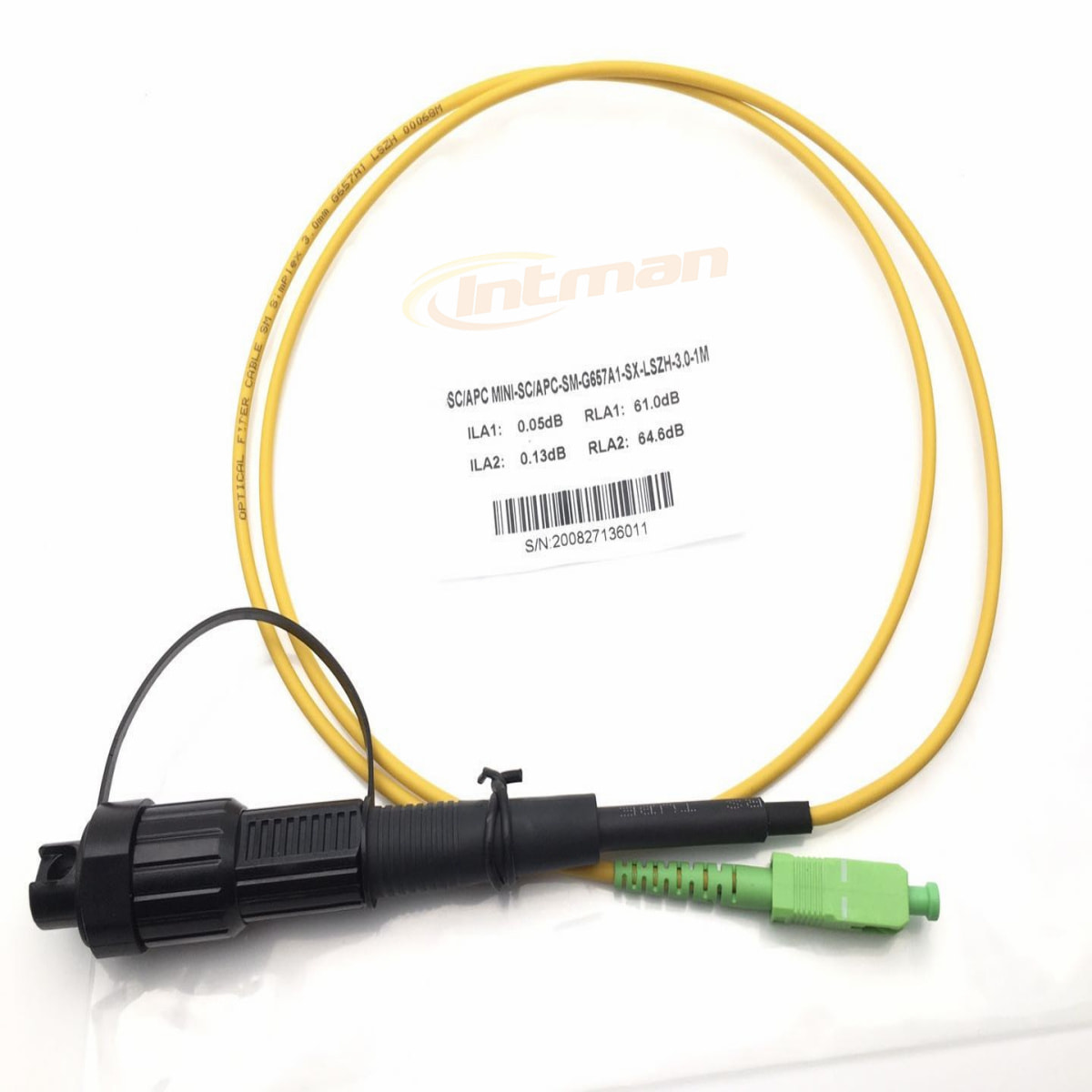

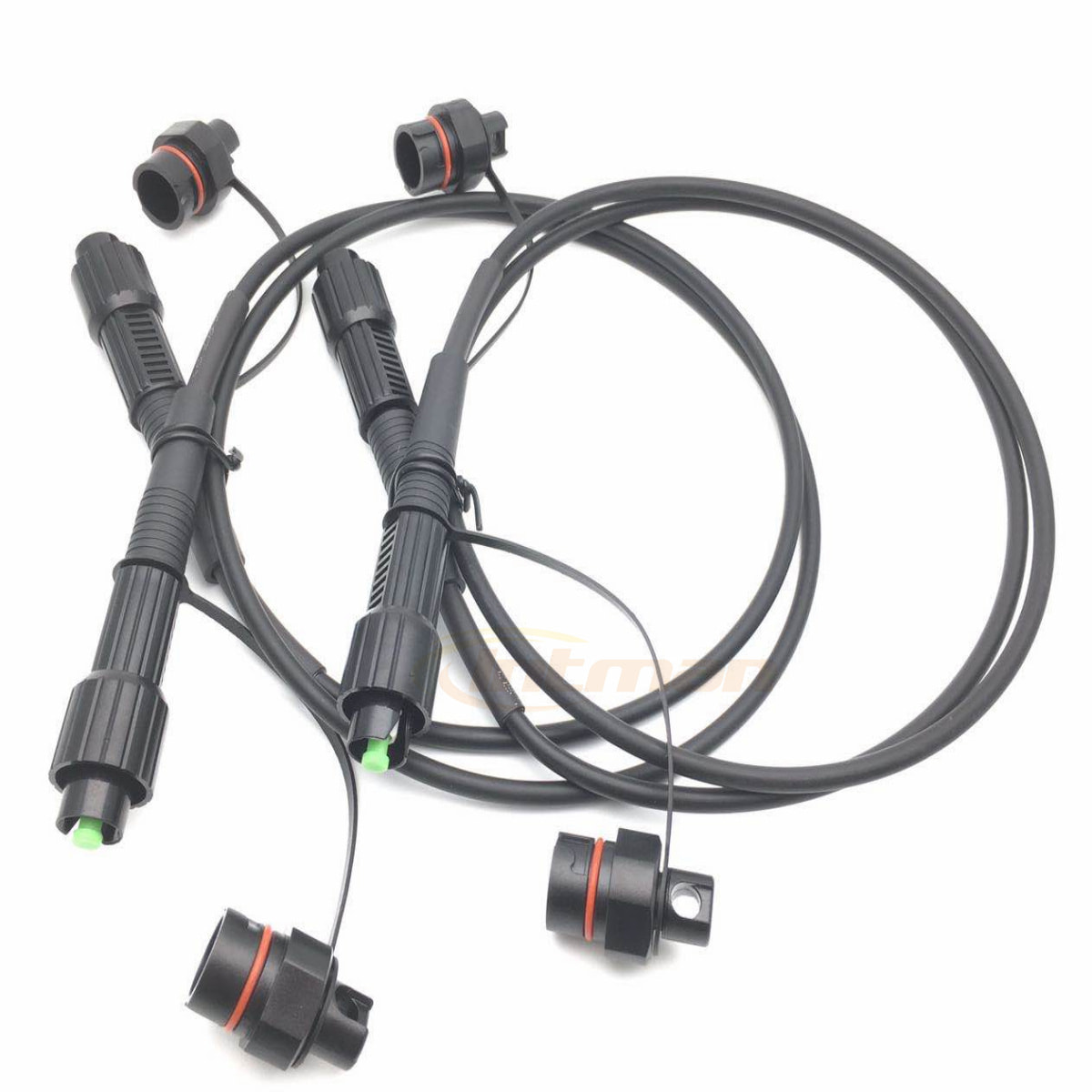

Waterproof Mini SC Reinforced FTTA Patch cord 5mm
Description

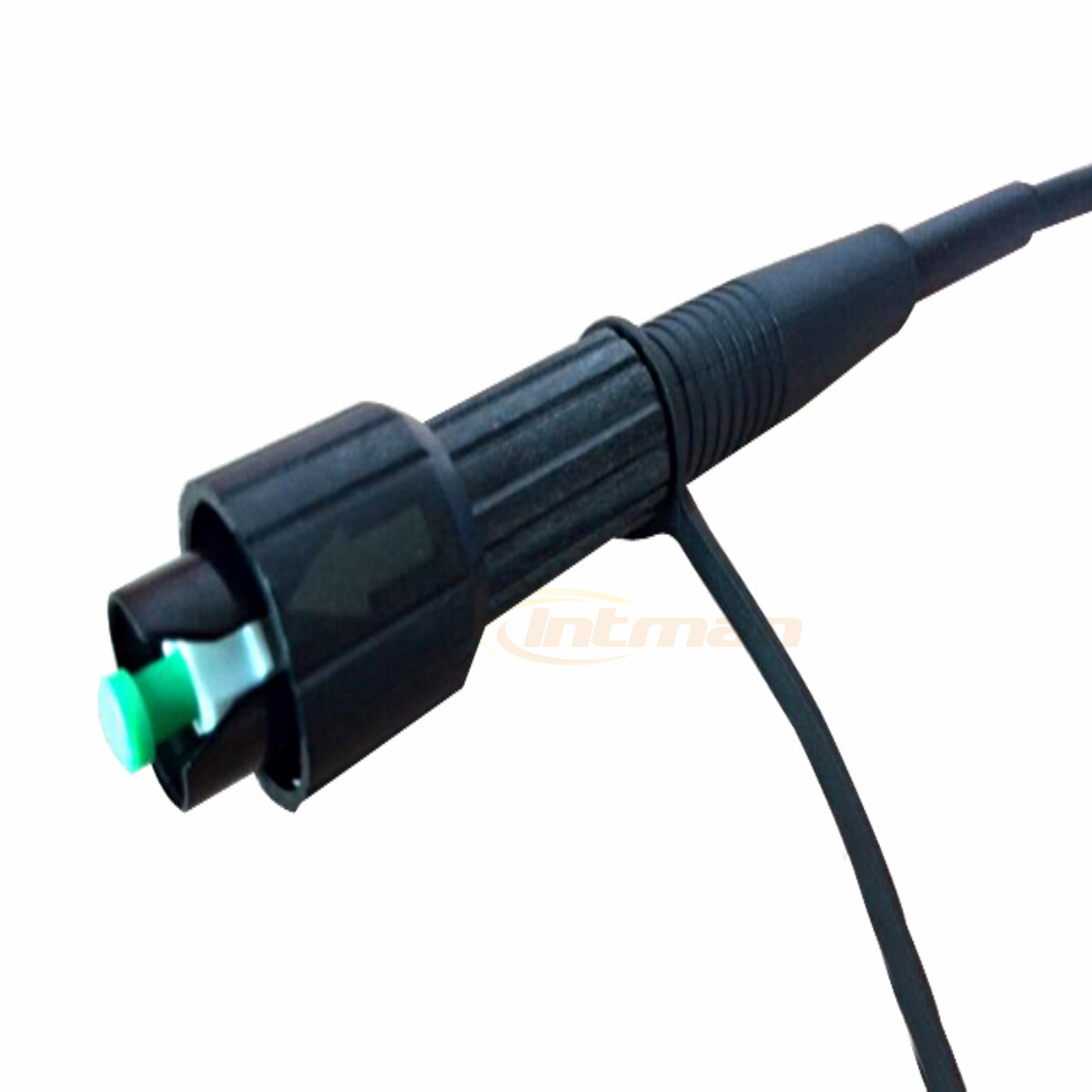

MINI-SC waterproof reinforced connector is a small high waterproof SC single-core waterproof connector. Built-in SC connector core, to better reduce the size of the waterproof connector. It is made of a special plastic shell (which is resistant to high and low temperatures, acid and alkali corrosion resistance, and anti-UV) and an auxiliary waterproof rubber pad, its sealing waterproof performance up to IP67 level. The unique screw mount design is compatible with the fiber optic waterproof ports of Huawei equipment ports. Suitable for 3.0-5.0mm single-core round cable or FTTH fiber access cable.
Specification Table
| Connector | MINI-SC | Cable Diameter | 5.0mm |
| Fiber Mode | OS2 9/125um | Wavelength | 1310/1550nm |
| Jacket Color | Black | Jacket Material | LSZH |
| Fiber Count | 1Core | Protection Class/Rating | IP67 |
| Insertion Loss | ≤0.3dB | Fiber Grade | G657A1 |
| Compatible | Huawei | Cable Type | 5.0mm tight buffer fiber |
| Operating Temperature | -20~70℃ | Storage Temperature | -20~70℃ |

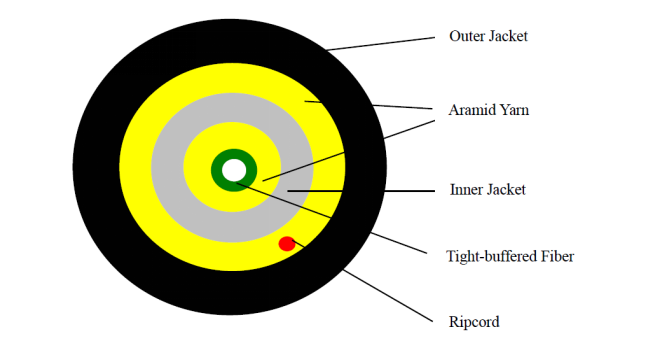

Cable Parameters and Cable Structure
Waterproof Mini SC Reinforced FTTA Patch cord 5mm
| Cable Count | Out Sheath Diameter (MM) | Weight(kg) | Minimum allowable Tensile Strength (N) | Minimum allowable Crush Load (N/100mm) | Minimum Bending Radius (MM) | Storage Temperature(℃） | |||
| Short Term | Long Term | Short Term | Long Term | Short Term | Long Term | ||||
| 2 | 5.0±0.2 | 30 | 800 | 400 | 2000 | 1000 | 20D | 10D | -20~+70 |
| 2 | 5.0±0.2 | 45 | 400 | 800 | 2000 | 3000 | 20D | 10D | -20~+70 |
Features
- The spiral clamping mechanism ensures long-term reliable connection
- Guide mechanism, can be blinded with one hand, simple and quick, connect and install
- Seal design: It is waterproof, dust-proof, anti-corrosion and so on.
- Compact size, easy to operate, durable
- Through the wall seal design
- Reduce welding, and connect directly to achieve interconnection
Applications
- Fiber optic communications in harsh outdoor environments
- Outdoor communication equipment connection
- Huawei waterproof fiber equipment SC port
- The remote wireless base station
- FTTx wiring project
Waterproof mini SC FTTA patch cord Availability
- Far transmission communication&FTTA
- Intelligent substation
- Tunnel Video Surveillance system
Specification
| ITEM | PARAMETER |
| Connector Type | MINI SC |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB |
| IP Level | IP67 |
| Operating wavelength | 1310nm,1550nm |
| Test wavelength | 1310nm,1550nm |
| Repeatability | ≤0.1 |
| Interchangeability | ≤0.2dB |
| Fiber Length | 1m,2m…..any length optional |
