• JW3330 PON Power Meter

    1310NM 1490NM 1550NM 1625NM PON Fiber Optic Power Meter (with SC/UPC Adapter) for FTTx Projects

    • Name: Power Meter
    • Model : JW3330
    • Measurement Range:+10~-70dBm/+26~-50dBm
    • Insertion Loss :≤1.5dB
    • Wavelength Test : 1310up /1490 down/1550up
    • Interface:(FC/SC)/PC (optional)
    • Display Size: 3.5 inch TFT color screen
    • VFL:  650nm 10mW
    • Dimension: 188×88×44mm
    • Display Resolution: 0.01dB
    • Weigth : 400g
  • JW3239C 10G PON Power Meter

    3.5-inch TFT Color Screen 10G-EPON Power Meter

    • Name: Power Meter
    • Model : JW3239
    • Measurement Range:+26~-50dBm
    • Insertion Loss :≤1.5dB
    • Wavelength Test Range: 800~1700nm
    • Interface:(FC/SC)/APC (optional)
    • Display Size: 3.5 inch TFT color screen
    • VFL:  650nm 10mW
    • Dimension: 188×88×44mm
    • Display Resolution: 0.01dB
    • Weigth : 400g
  • visual fault locator 10mw

    650nm Pen-type Visual Fault Locator (VFL) 1.25mm & 2.5mm adaptor 20mw

    • Name: Pen-type Visual Fault Locator
    • Central Wavelength: 650nm±10nm
    • Emitter Type:FP-LD
    • Output Power :Optional choice for 1mw,10mw on actual needs
    • Operating Model: Both CW and Pulse are available
    • Pulse Frequency:2~3 Hz
    • Dimension (mm): 15×180mm
    • Weight:900g (without battery)
    • Operating Temperature: -10℃ to + 45℃
    • Optical Connector: 2.5mm,1.25mm
    • Battery Operating Time : 650nm 1mw ≥65hour;650nm 10mw ≥15hour
  • EXFO maxtester 720c

    EXFO OTDR MaxTester 720C SM1 1310/1550nm 36/35dB

    • Name: MaxTester 720C OTDR
    • Model: MAX-720C-SM1-EI
    • Wavelength: SM1 1310/1550nm
    • Display: 7-in (178mm) outdoor-enhanced touchscreen,800×480TFT
    • Storage :2GB internal memory
    • Interfaces : Two USB2.0ports,RJ45 Lan 10/100M
    • Dynamic range: 27/29/36/35/35dB
    • Power Supply: AC/DC adapter, input 100-240VAC
    • Battery Operating Time:  12hours
    • Dimension: 166×200×68mm
    • Operating Temperature (℃）: -10~+50 ℃
    • Weight : 1.5kg
  • fiber optic light source tester 3120 optical light source price

    Fiber Optic Power Adjustable Light Source Tester

    • Name: Light Source
    • Model : INT3120
    • Wavelength:1310/1550nm (customize)
    • Output power adjustable range :-5~-20dB
    • Min step adjustable power: 0.05dB
    • Interface:(FC/SC)/PC (optional)
    • Display Size: 3.5 inch TFT color screen
    • VFL:  650nm 1mW
    • Dimension: 188×88×44mm
    • Communication Interface: Micro USB
    • Weigth : 370g
  • INT-3109 optical light source Handheld Light Source 3109

    Handheld Light Source 3109 Optical Light Source Fiber Optic Power Meter 850-1300nm Wavelengths

    • Name: Light Source
    • Model : INT-3109
    • Wavelength:650~1550nm (customize)
    • Emitter Type: FP-LD, LED, or others please specify
    • Output power  :-7dBm for LD,-20dBm for LED
    • Spectral Width : ≤10nm
    • Interface: FC universal adaptor
    • Power Supply: Alkaline Battery
    • Battery Operating Time:  45hours
    • Dimension: 175×82×33mm
    • Operating Temperature (℃）: -10~+60 ℃
    • Weight : 295g
  • handheld laser power meter

    Handheld Optical Power Meter with 2.5mm FC/SC/ST Connector

    • Name: Power Meter
    • Model : JW3220
    • Measurement Range:+10~-80dBm/+26~-65dBm
    • Detector Type :InGaAs
    • Wavelength Test Range: 800~1700nm
    • Interface:FC,SC,ST,LC,2.5mm,1.25mm
    • Display Size: 3.5 inch TFT color screen
    • VFL  :  650nm 10mW
    • Dimension: 188×88×44mm

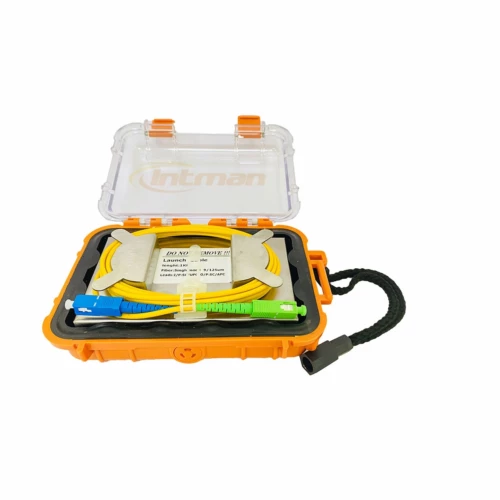

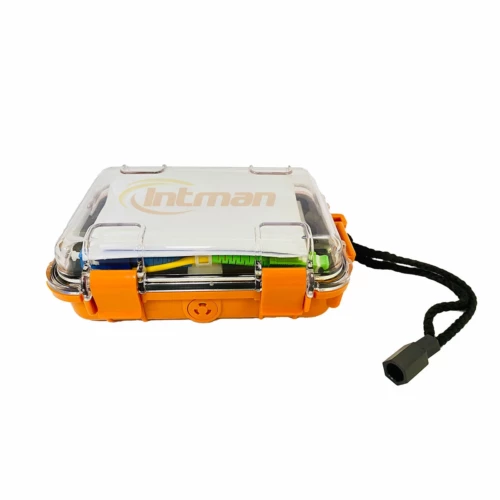

  • Small OTDR launch box

    Mini Fiber Optic Launch Box Pulse Suppressor

    • Name: MINI OTDR Launch Cable Box
    • Lead length: 1m-5m
    • Outer Diameter:2.0mm or 3.0mm
    • Back Reflection RL :＜-55dB
    • Material : SR Polypropylene
    • Color:Orange
    • L×W×H: 15.5CM×11CM×5CM
    • Weight:0.55kg (without fiber)
    • Operating Temperature: -40℃ to + 80℃
    • Launch Box Length:  100m-2000m
    • Typical Loss : ＜1dB@1310nm for 1000meters
    • Fiber Type: 9/125um,62.5/125um,50/125um

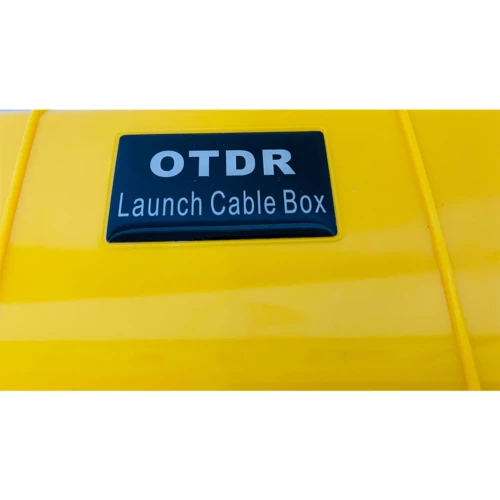

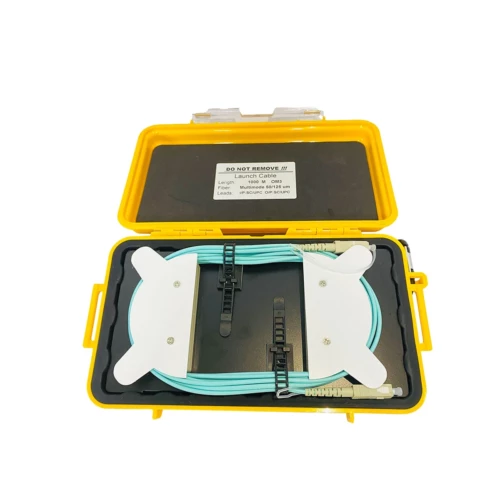

  • OM3 otdr launch cable

    Multimode Fiber Optic OTDR Launch Cable Box

    • Name: OTDR Launch Cable Box
    • Lead length: 1m-5m
    • Outer Diameter:2.0mm or 3.0mm
    • Back Reflection RL :＜-55dB
    • Material : SR Polypropylene
    • Color:Yellow
    • L×W×H: 9.37''×5.56''×2.62''
    • Weight:0.75kg (without fiber)
    • Operating Temperature: -40℃ to + 80℃
    • Launch Box Length:  100m-2000m
    • Typical Loss : ＜1dB@1310nm for 1000meters
    • Fiber Type: 9/125um,62.5/125um,50/125um
  • Optical Time Domain Reflectometer (OTDR)

    Optical Time Domain Reflectometer 3302ET OTDR

    • Name: Multi-Function OTDR
    • Model: 3302ET
    • Wavelength: 850nm/1300nm/1310nm/1550nm
    • Display: 5.8-inch color LCD with touchscreen
    • Data Storage :≥2000
    • Interfaces :FC/PC
    • Dynamic range: 26/30/37/35dB
    • Power Supply: AC/DC adapter, input 100-240VAC
    • VFL output : ≥5mw
    • Dimension: 227×160×70mm
    • Operating Temperature (℃）: -5~+50 ℃
    • Weight : 1.1kg
  • fibre identifier

    Single Mode & Multimode Optical Fiber Identifiers 4 in 1 Test Fixture

    • Name: Optical Fiber Identifier
    • Model : INT3306
    • Measurement Range:+13~-50dBm
    • Probe type :InGaAs
    • Wavelength Test : 800~1700nm
    • Adapter type:250um,900um,2mm,3mm
    • Display screen: Color-LCD
    • OPM Module test range:+26～-50 dBm
    • VFL:  650nm 10mW
    • VFL test interface: 2.5mm universal interface
    • Dimension: 220×38×28mm
  • visual fault locator 1mw

    Small Type Mini Visual Fault Locator 1mw 10mw 20mw

    • Name: MINI Pen-type Visual Fault Locator
    • Central Wavelength: 650nm±10nm
    • Emitter Type:FP-LD
    • Output Power :Optional choice for 1mw,10mw on actual needs
    • Operating Model: Both CW and Pulse are available
    • Pulse Frequency:2~3 Hz
    • Dimension (mm): 100×30×18mm
    • Weight:60g (with battery)
    • Operating Temperature: -10℃ to + 45℃
    • Optical Connector: 2.5mm
    • Battery Operating Time : 650nm 1mw ≥65hour;650nm 10mw ≥15hour
