• visual fault locator 10mw

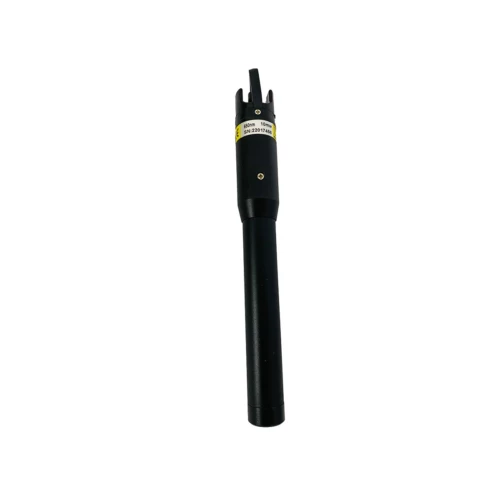

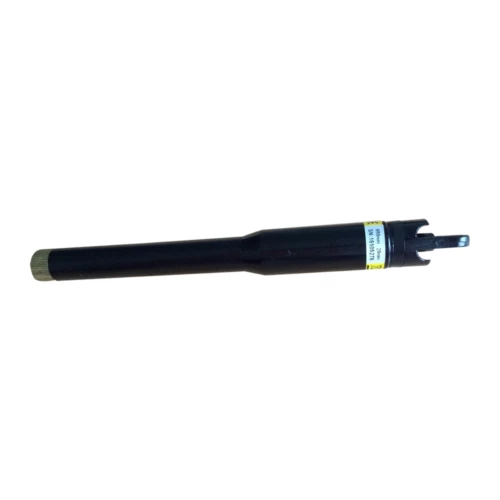

    650nm Pen-type Visual Fault Locator (VFL) 1.25mm & 2.5mm adaptor 20mw

    • Name: Pen-type Visual Fault Locator
    • Central Wavelength: 650nm±10nm
    • Emitter Type:FP-LD
    • Output Power :Optional choice for 1mw,10mw on actual needs
    • Operating Model: Both CW and Pulse are available
    • Pulse Frequency:2~3 Hz
    • Dimension (mm): 15×180mm
    • Weight:900g (without battery)
    • Operating Temperature: -10℃ to + 45℃
    • Optical Connector: 2.5mm,1.25mm
    • Battery Operating Time : 650nm 1mw ≥65hour;650nm 10mw ≥15hour
  • fibre identifier

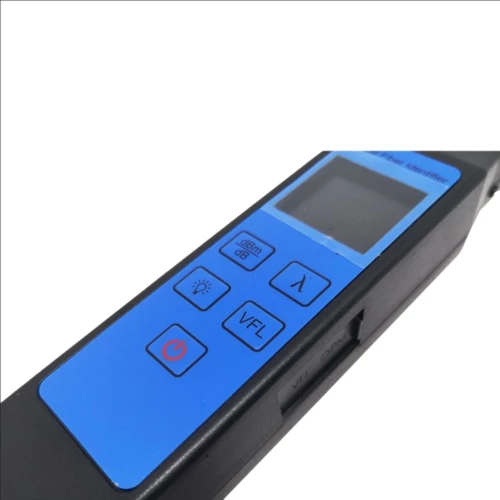

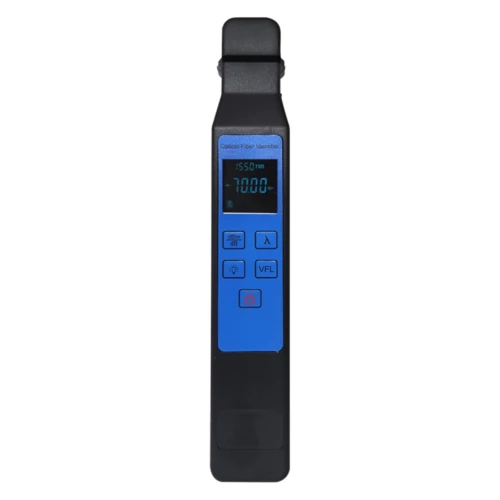

    Single Mode & Multimode Optical Fiber Identifiers 4 in 1 Test Fixture

    • Name: Optical Fiber Identifier
    • Model : INT3306
    • Measurement Range:+13~-50dBm
    • Probe type :InGaAs
    • Wavelength Test : 800~1700nm
    • Adapter type:250um,900um,2mm,3mm
    • Display screen: Color-LCD
    • OPM Module test range:+26～-50 dBm
    • VFL:  650nm 10mW
    • VFL test interface: 2.5mm universal interface
    • Dimension: 220×38×28mm
  • visual fault locator 1mw

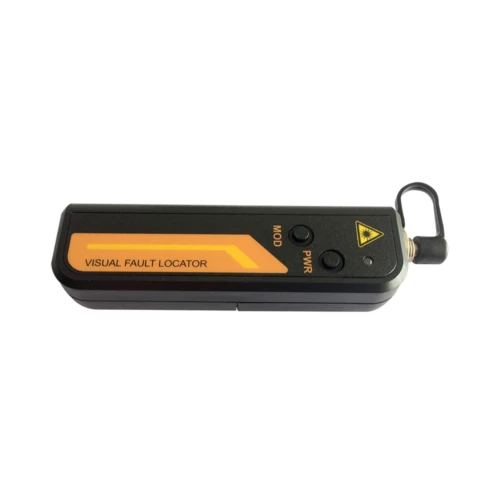

    Small Type Mini Visual Fault Locator 1mw 10mw 20mw

    • Name: MINI Pen-type Visual Fault Locator
    • Central Wavelength: 650nm±10nm
    • Emitter Type:FP-LD
    • Output Power :Optional choice for 1mw,10mw on actual needs
    • Operating Model: Both CW and Pulse are available
    • Pulse Frequency:2~3 Hz
    • Dimension (mm): 100×30×18mm
    • Weight:60g (with battery)
    • Operating Temperature: -10℃ to + 45℃
    • Optical Connector: 2.5mm
    • Battery Operating Time : 650nm 1mw ≥65hour;650nm 10mw ≥15hour
